Diagnostic Procedure 3: Remote Controller Door Lock/Unlock Function Inoperative

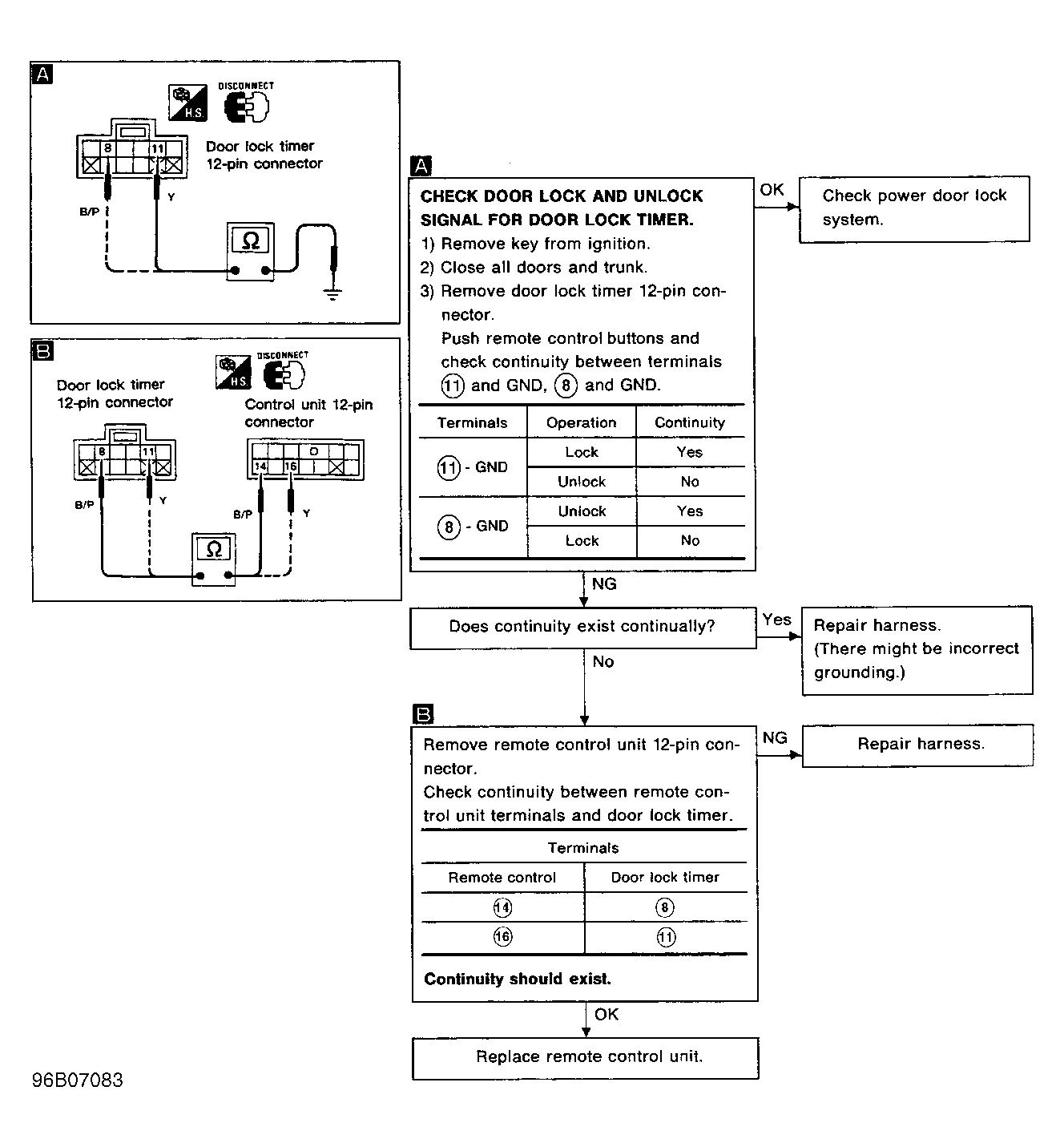

Fig 1: Diagnostic Procedure 3 - Remote Controller Door Lock/Unlock Function Inoperative
G96B07083Courtesy of NISSAN MOTOR CO., U.S.A.
