Diagnostic Procedure 4: Remote Controller Trunk Release Function Inoperative

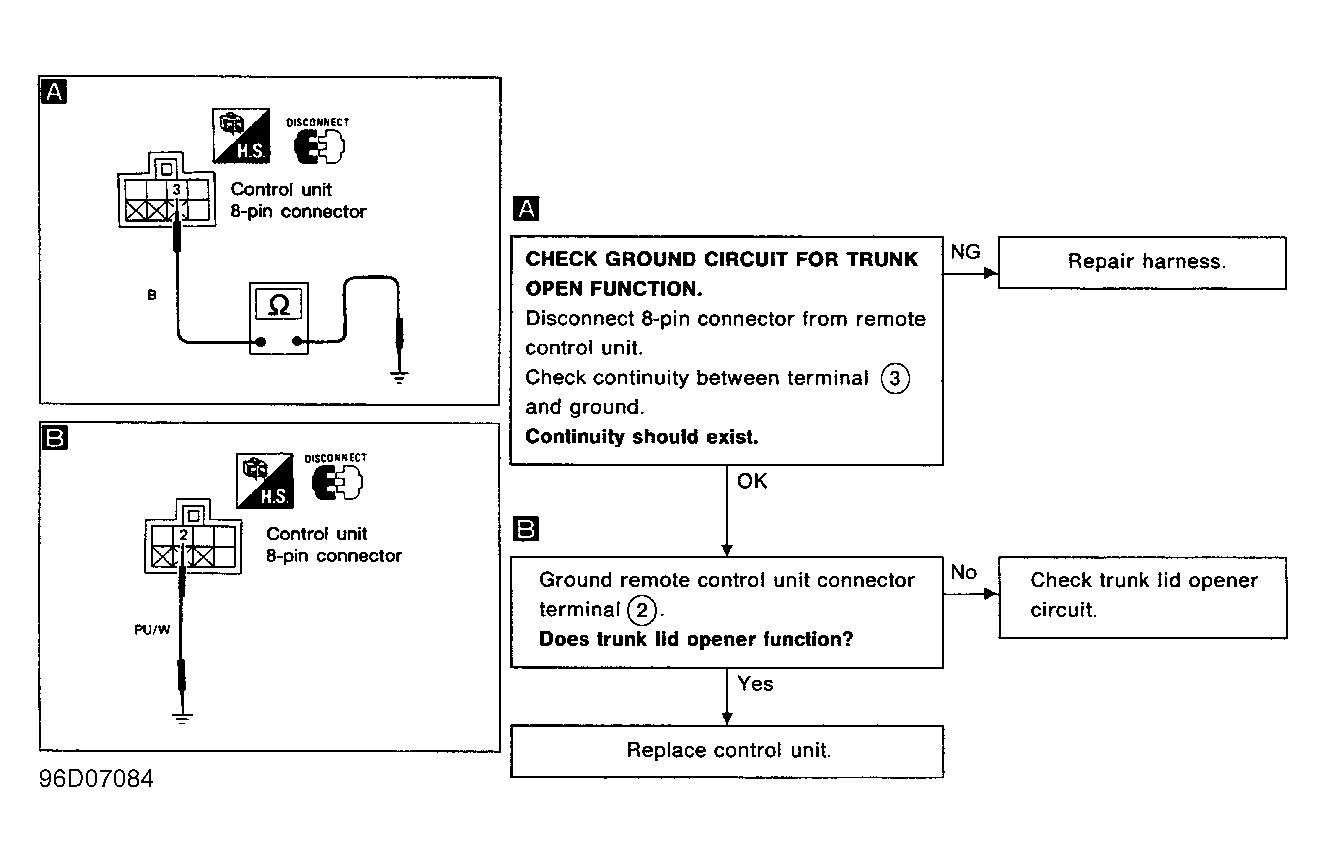

Fig 1: Diagnostic Procedure 4 - Remote Controller Trunk Release Function Inoperative
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
