Firing Order & Timing Marks

NOTE: For firing order, see Fig 1 . J30 uses a distributorless ignition system. Adjustments to timing are made by rotating camshaft position sensor after loosening mounting bolts.

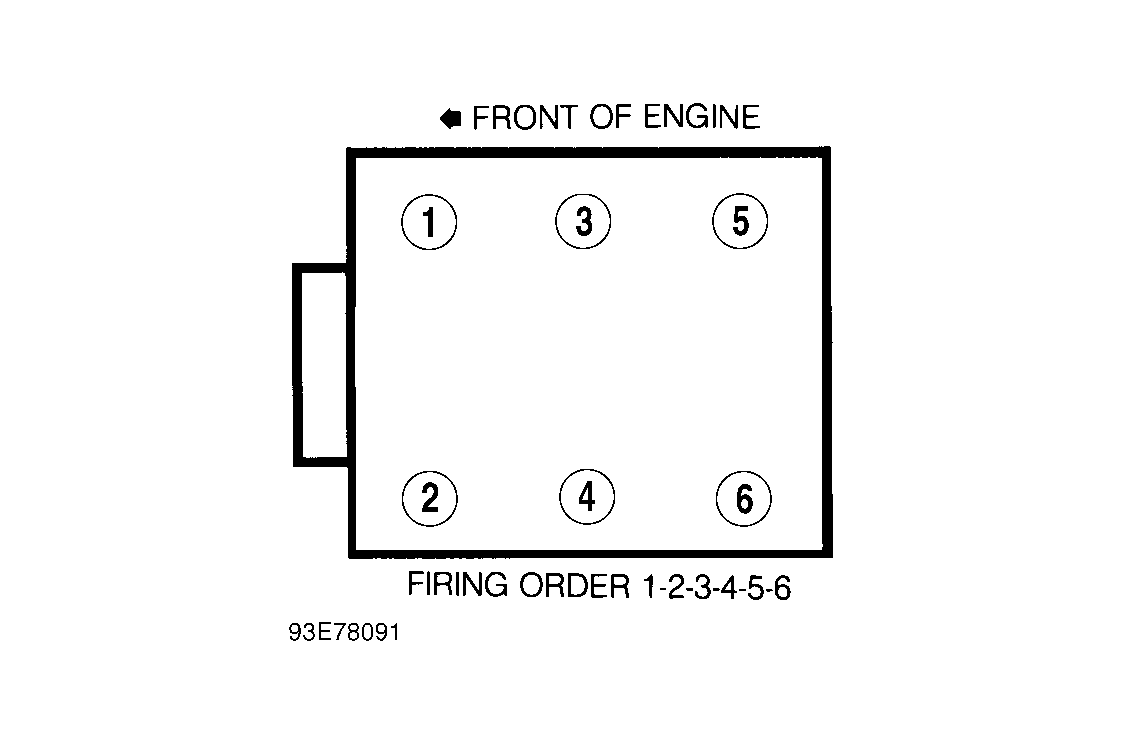

Fig 1: Firing Order
G93E78091
