Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|
| B9 | Below left front door. |
| B29 | At right "C" pillar. |
| B31 | At left front of luggage compartment. |
| B54 | Below right front door. |
| B71 | At right front of luggage compartment. |

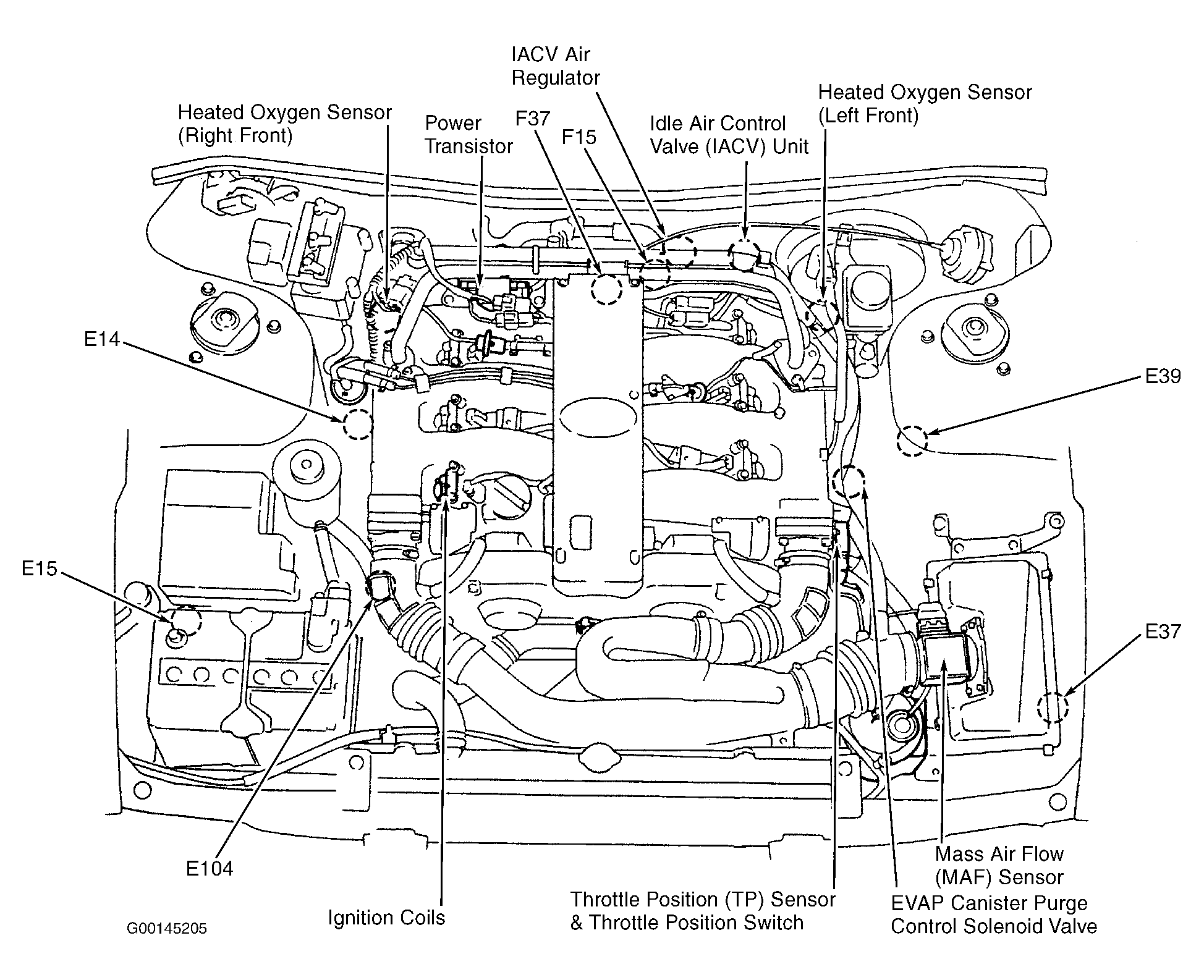

| E14 | At right side of engine compartment. See Figure . |
| E15 | At right front of engine compartment. See Figure . |
| E37 | At left front of engine compartment. See Figure . |
| E39 | At left side of engine compartment. See Figure . |
| E104 | Near right front of engine. See Figure . |
| F15 | At left rear of engine. See Figure . |
| F37 | At left rear of engine. See Figure . |
| M14 | Behind instrument cluster. See Figure . |
| M68 | Behind passenger air bag. See Figure . |
| T2 | At right front of luggage compartment. |
| T5 | Below luggage latch assembly. |
