Diagnostic Procedure 4: Power Window Sub-Switch Check

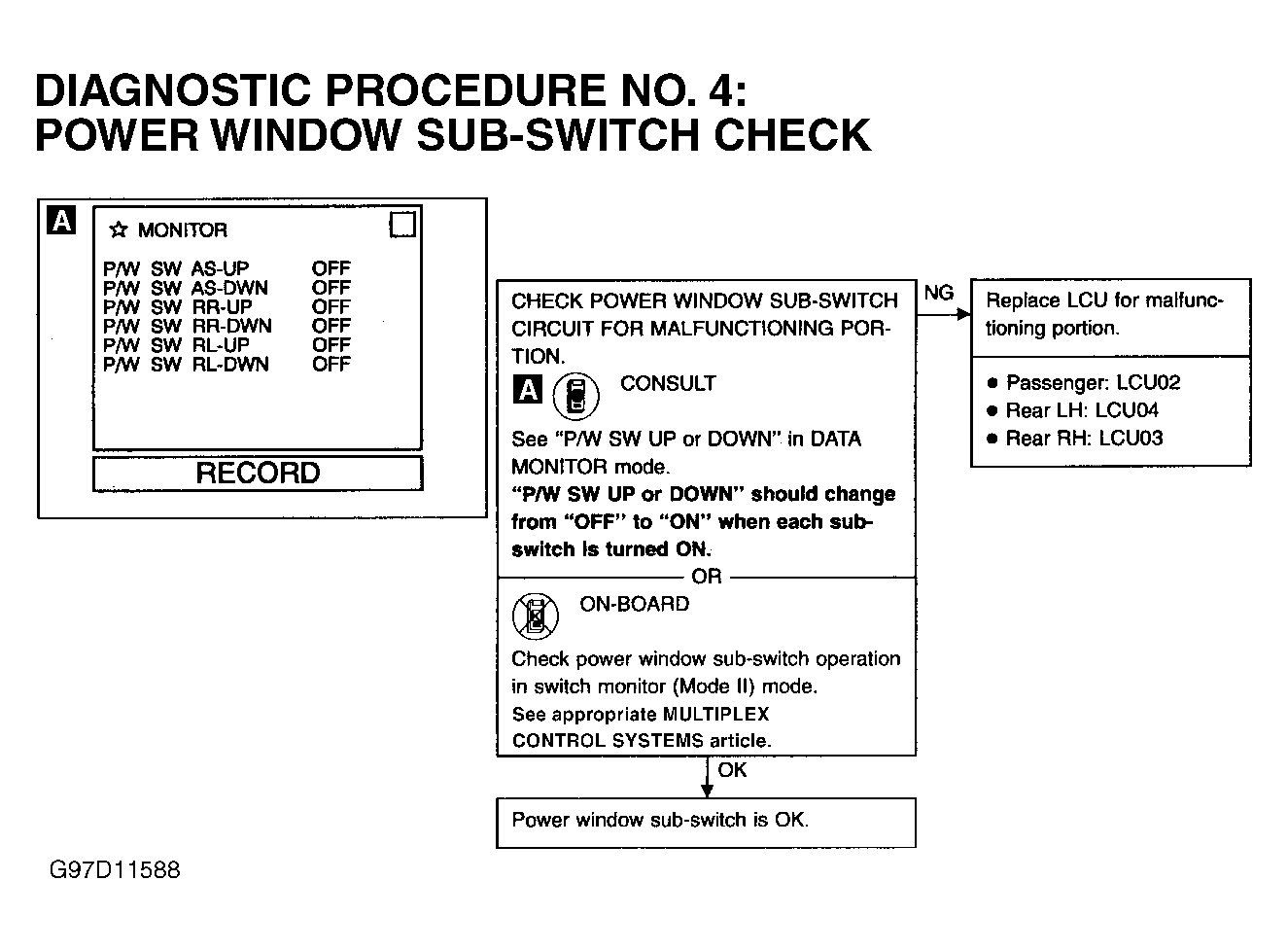

Fig 1: Diagnostic Procedure 4 - Power Window Sub-Switch Check
G97D11588Courtesy of NISSAN MOTOR CO., U.S.A.
