Diagnostic Procedure 2: Multi-Remote Control System Antenna Check

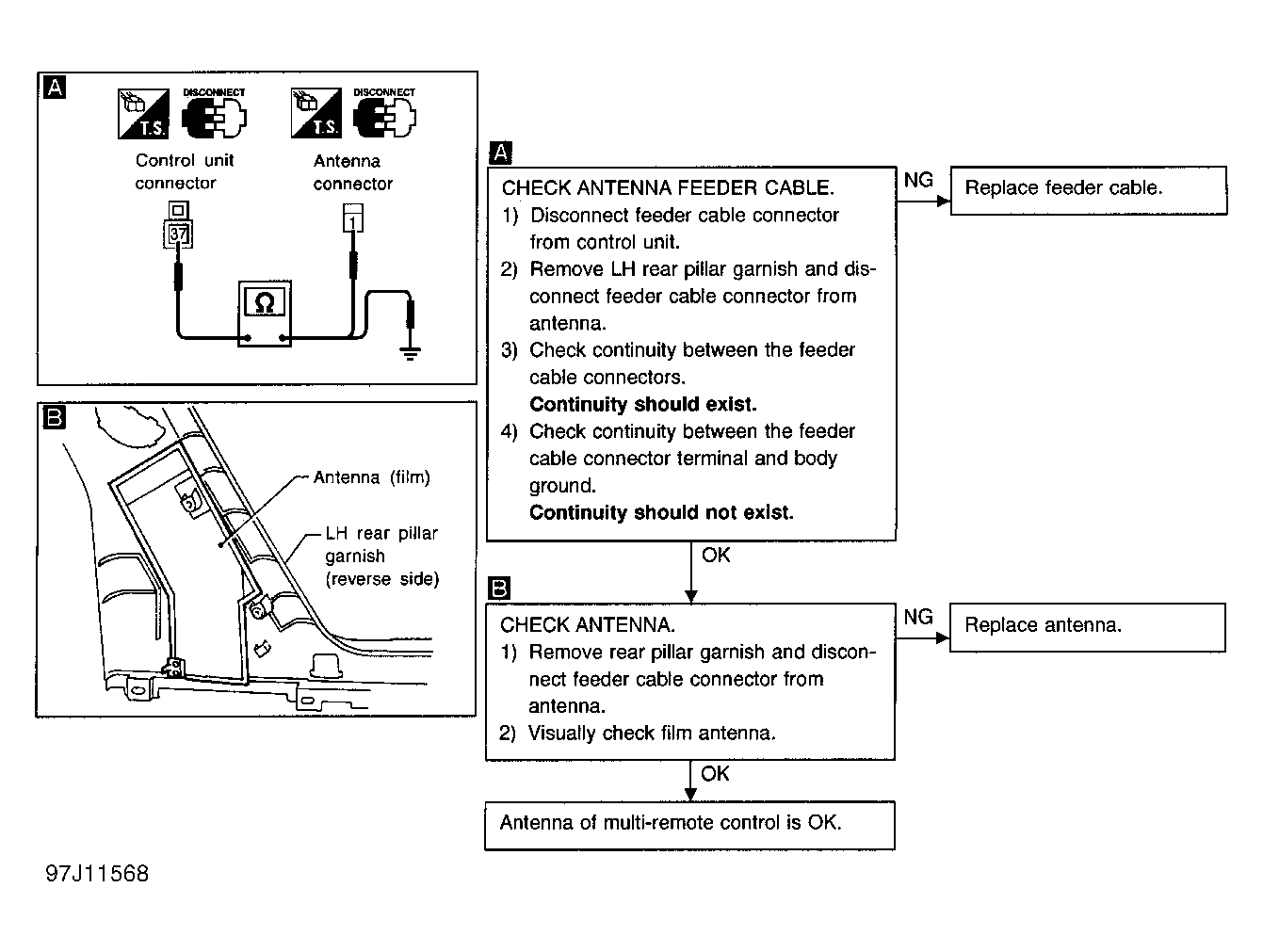

Fig 1: Diagnostic Procedure 2 - Multi-Remote Control System Antenna Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
