ECM Harness Connector

NOTE: To locate and identify ECM connector terminalsefernced in CIRCUIT TESTS, see Figure and Fig 1 .

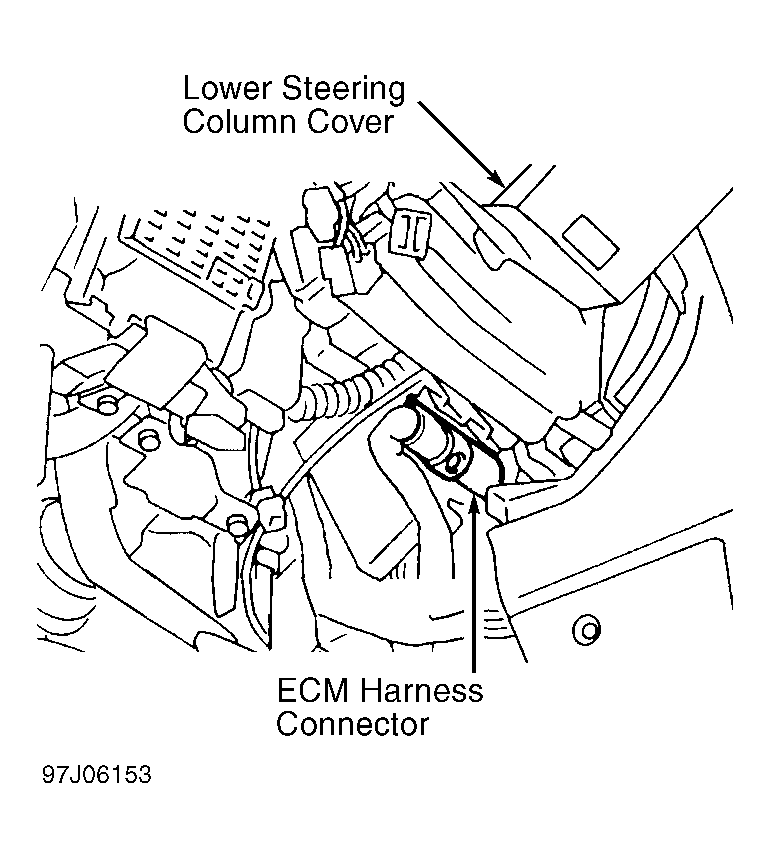

Fig 1: Locating ECM Harness Connector (As Viewed With Lower Instrument Panel Cover Removed)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying ECM Wiring Harness Connector Terminals (As Viewed From Harness Side Of Connector)

Courtesy of NISSAN MOTOR CO., U.S.A.
