EVAP Canister

Remove EVAP canister. Plug vent hose and blow air into port "A". Air should flow freely out of port "B". See Fig 1 or Fig 2 . Replace EVAP canister if operation is not as specified.

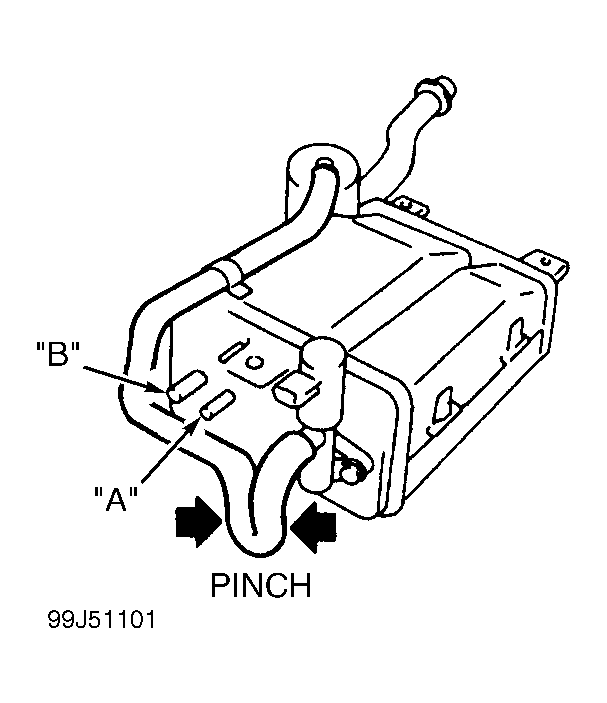

Fig 1: Testing EVAP Canister (G20 & Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Testing EVAP Canister (I30)

Courtesy of NISSAN MOTOR CO., U.S.A.
