Diagnostic Procedures

NOTE: Check data lines before proceeding with any trouble shooting or diagnostic procedures. See LAN COMMUNICATIONS CHECK under SELF-DIAGNOSTIC SYSTEM in appropriate MULTIPLEX CONTROL SYSTEMS article.

WIRE COLOR ABBREVIATIONS

Abbreviation

⁽¹⁾ Color

B

Black

G

Green

L

Blue

P

Pink

R

Red

W

White

Y

Yellow

BR

Brown

CH

Dark Brown

DG

Dark Green

GY

Gray

LG

Light Green

OR

Orange

PU

Purple

SB

Sky Blue

⁽¹⁾	Listed wire color abbreviations are used in system tests.

Fig 1: Diagnostic Procedure No. 1

G97I04417

Courtesy of NISSAN MOTOR CO., U.S.A.

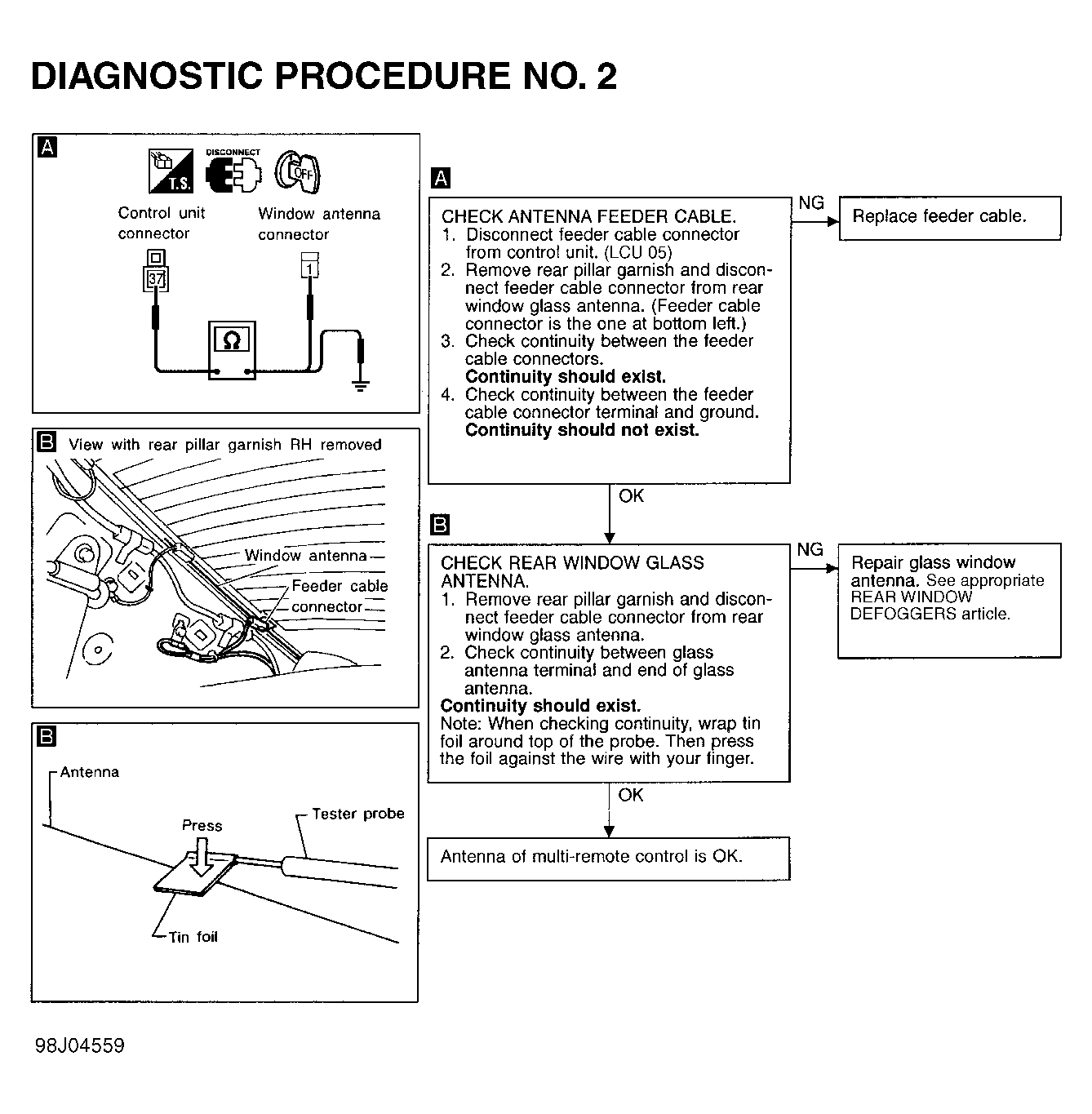

Fig 2: Diagnostic Procedure No. 2

G98J04559

Courtesy of NISSAN MOTOR CO., U.S.A.

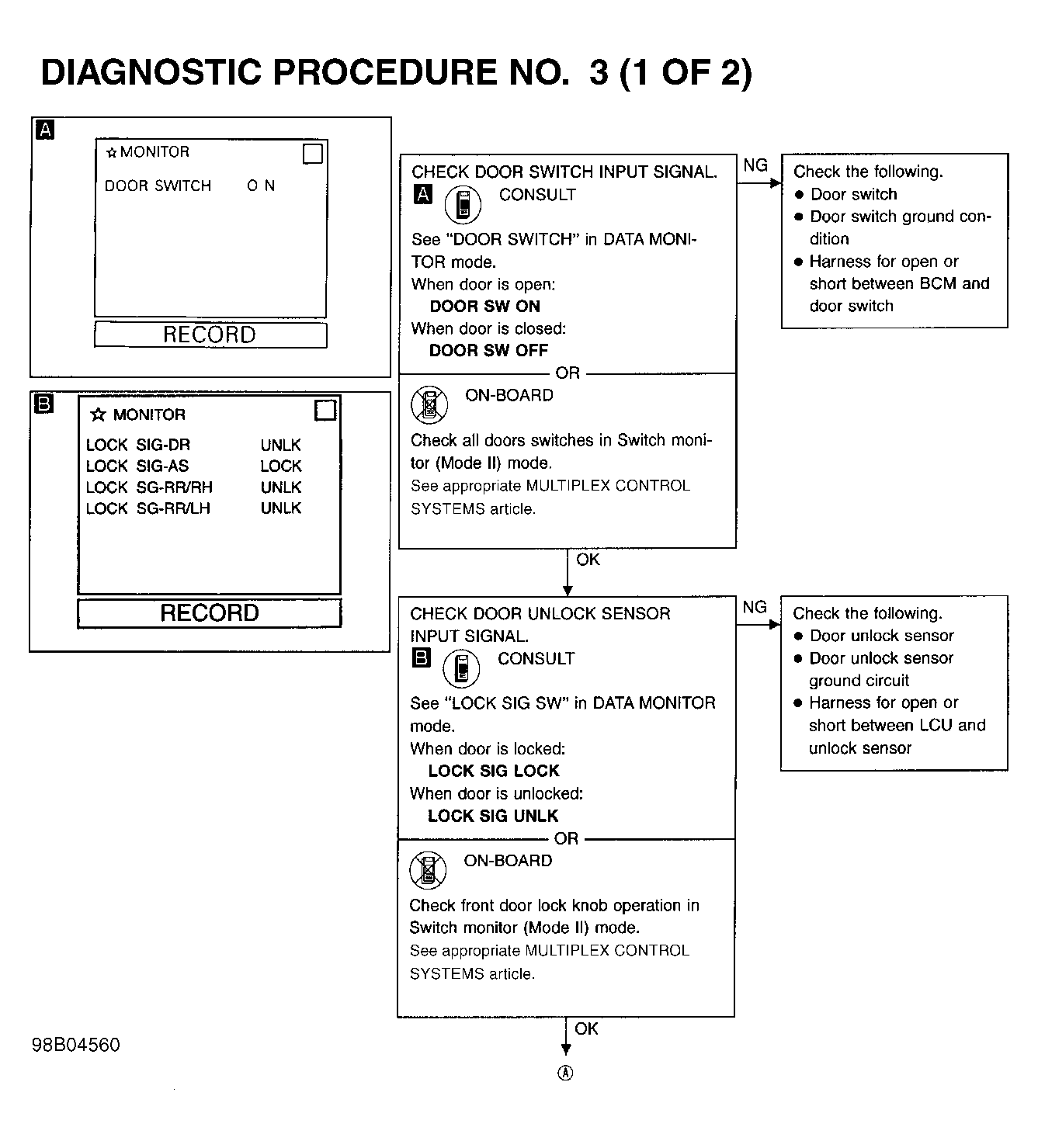

Fig 3: Diagnostic Procedure No. 3 (1 Of 2)

G98B04560

Courtesy of NISSAN MOTOR CO., U.S.A.

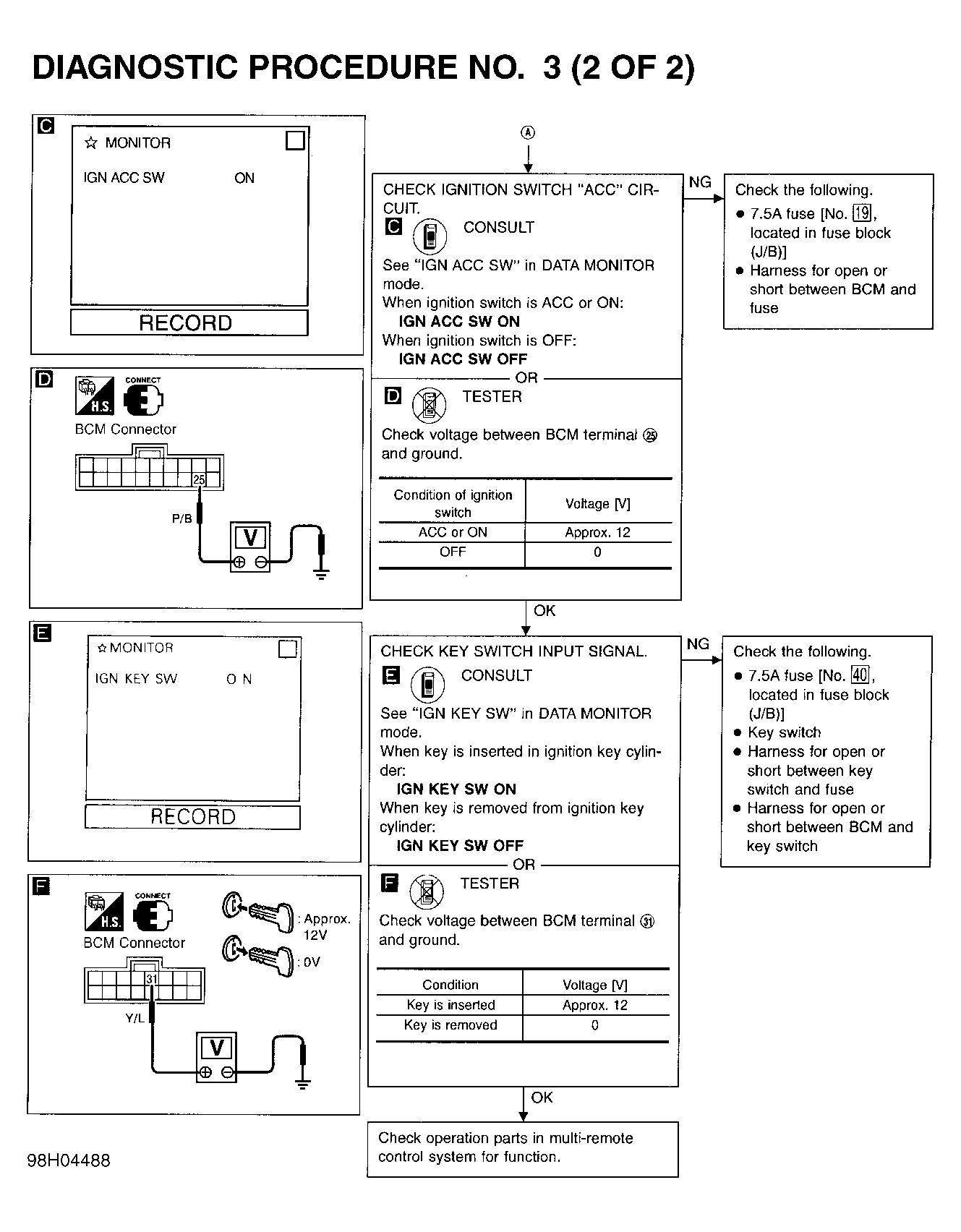

Fig 4: Diagnostic Procedure No. 3 (2 Of 2)

G98H04488

Courtesy of NISSAN MOTOR CO., U.S.A.

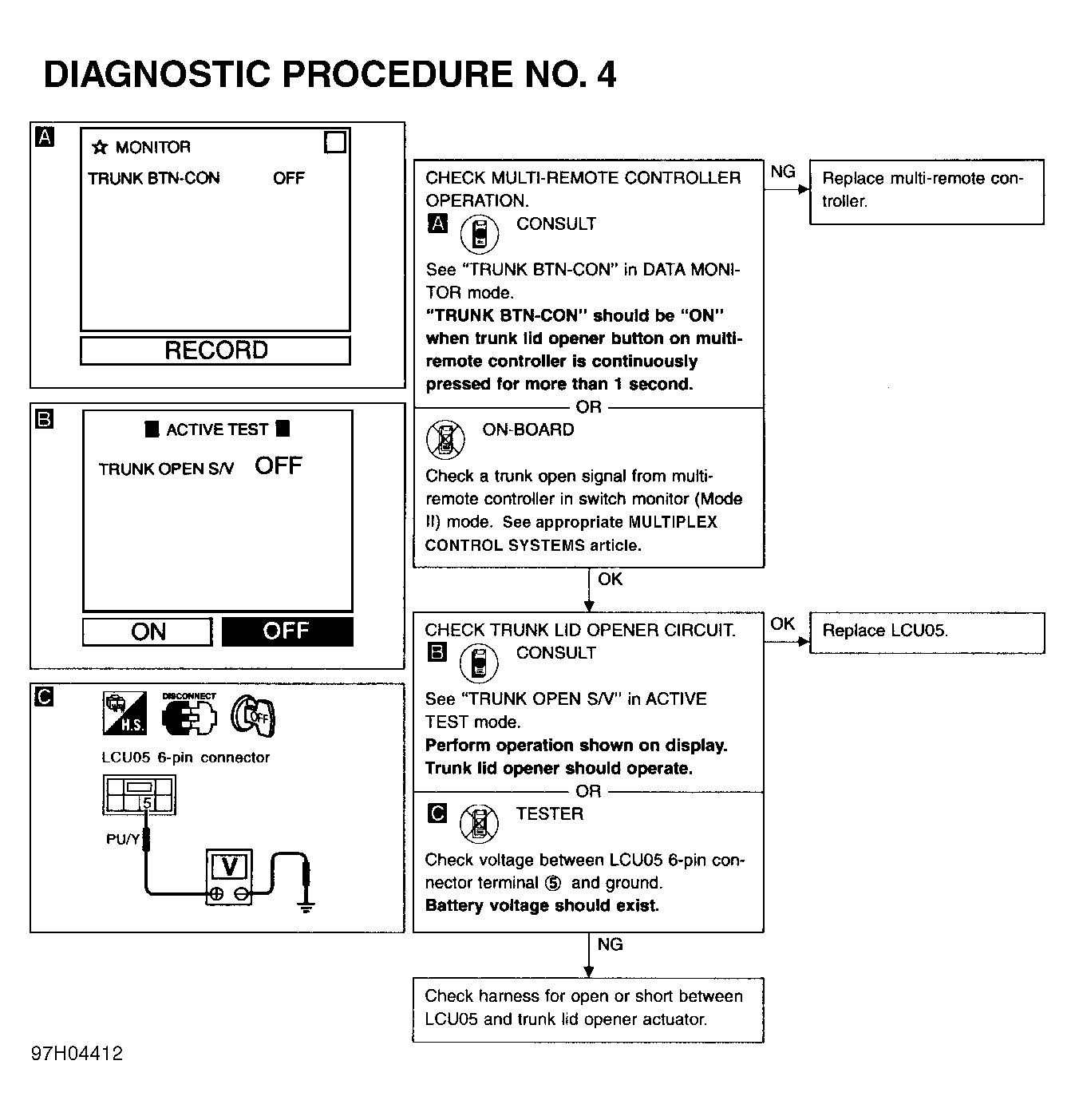

Fig 5: Diagnostic Procedure No. 4

G97H04412

Courtesy of NISSAN MOTOR CO., U.S.A.

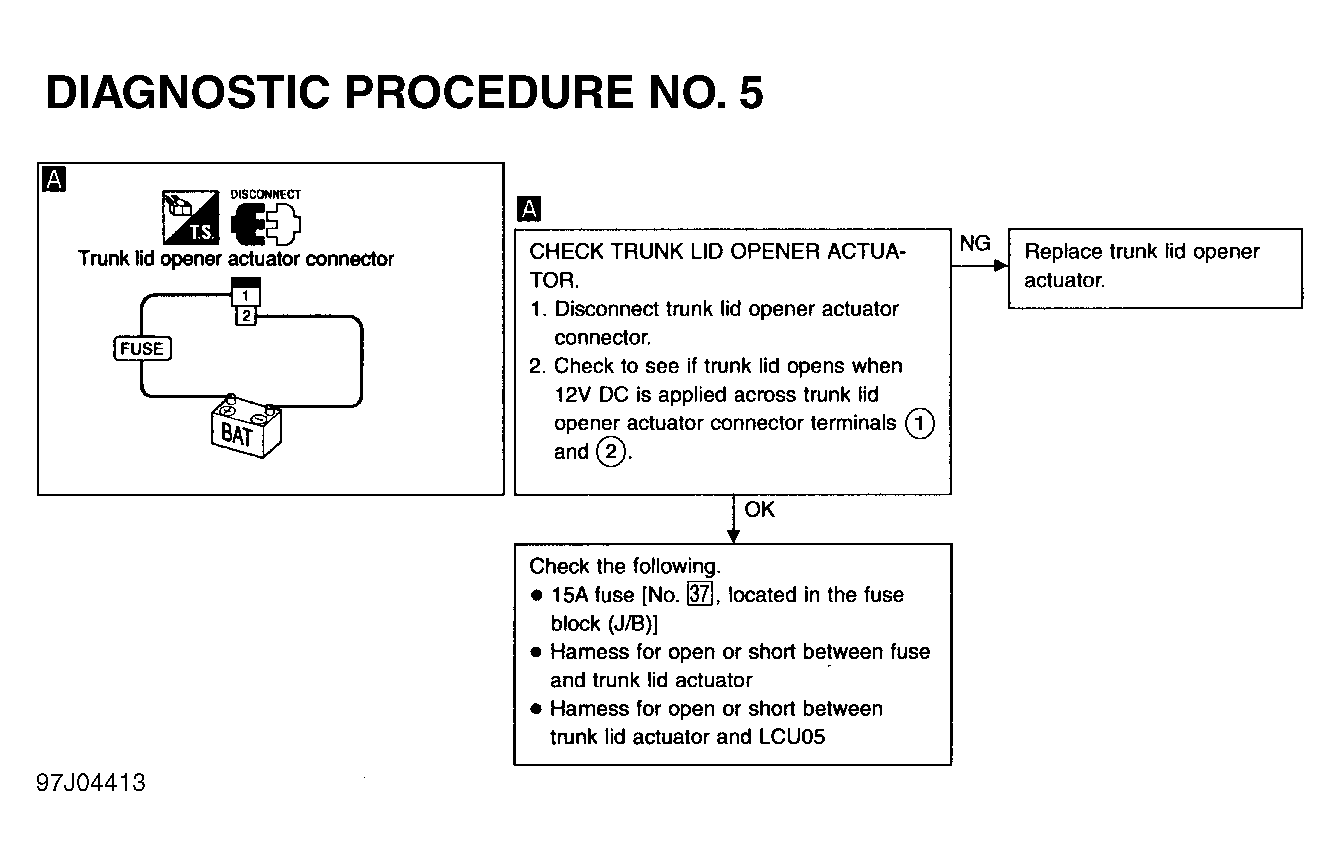

Fig 6: Diagnostic Procedure No. 5

G97J04413

Courtesy of NISSAN MOTOR CO., U.S.A.

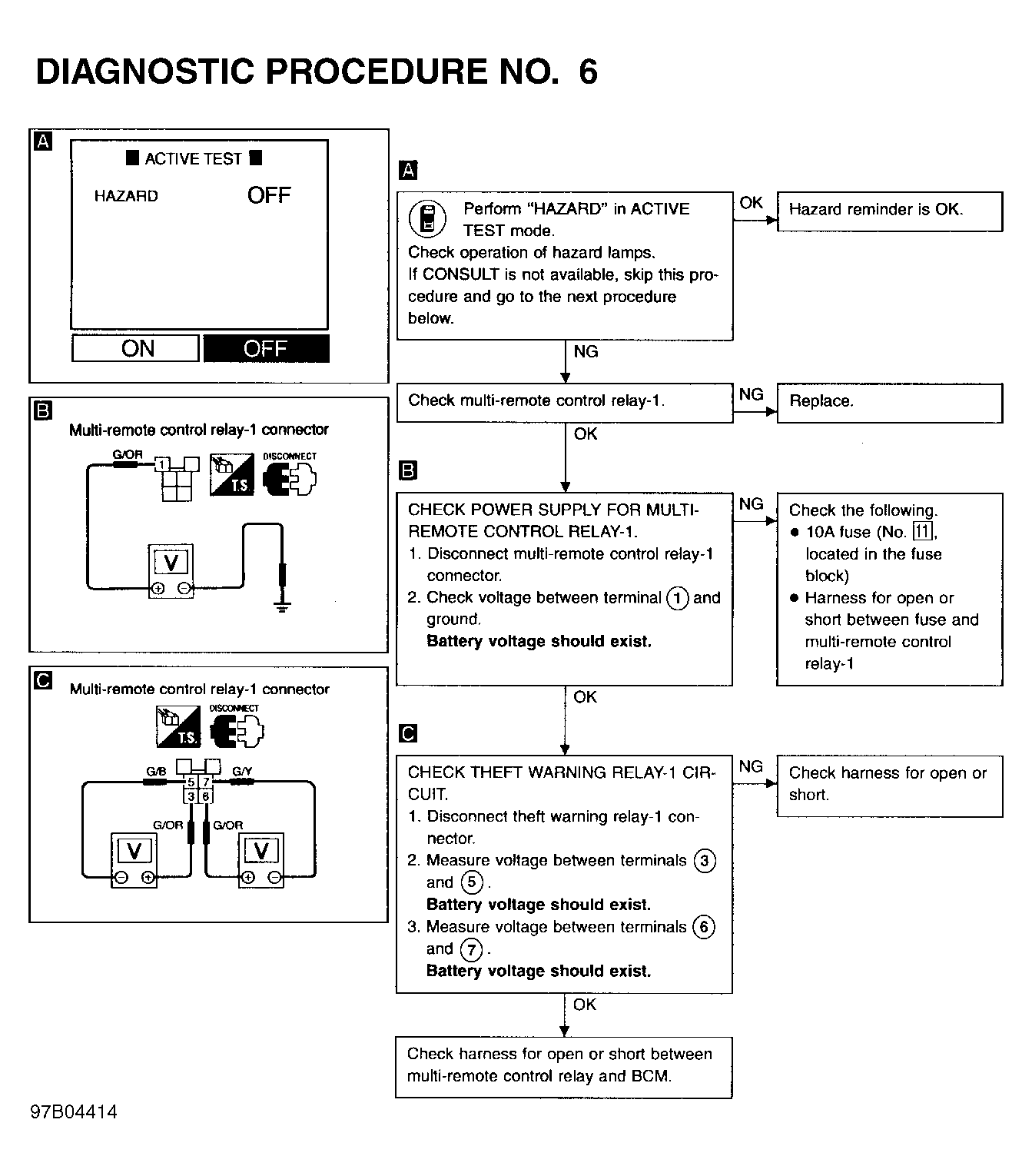

Fig 7: Diagnostic Procedure No. 6

G97B04414

Courtesy of NISSAN MOTOR CO., U.S.A.
