Component Locations

Refer to illustrations for component location. See Fig 1 or Fig 2 .

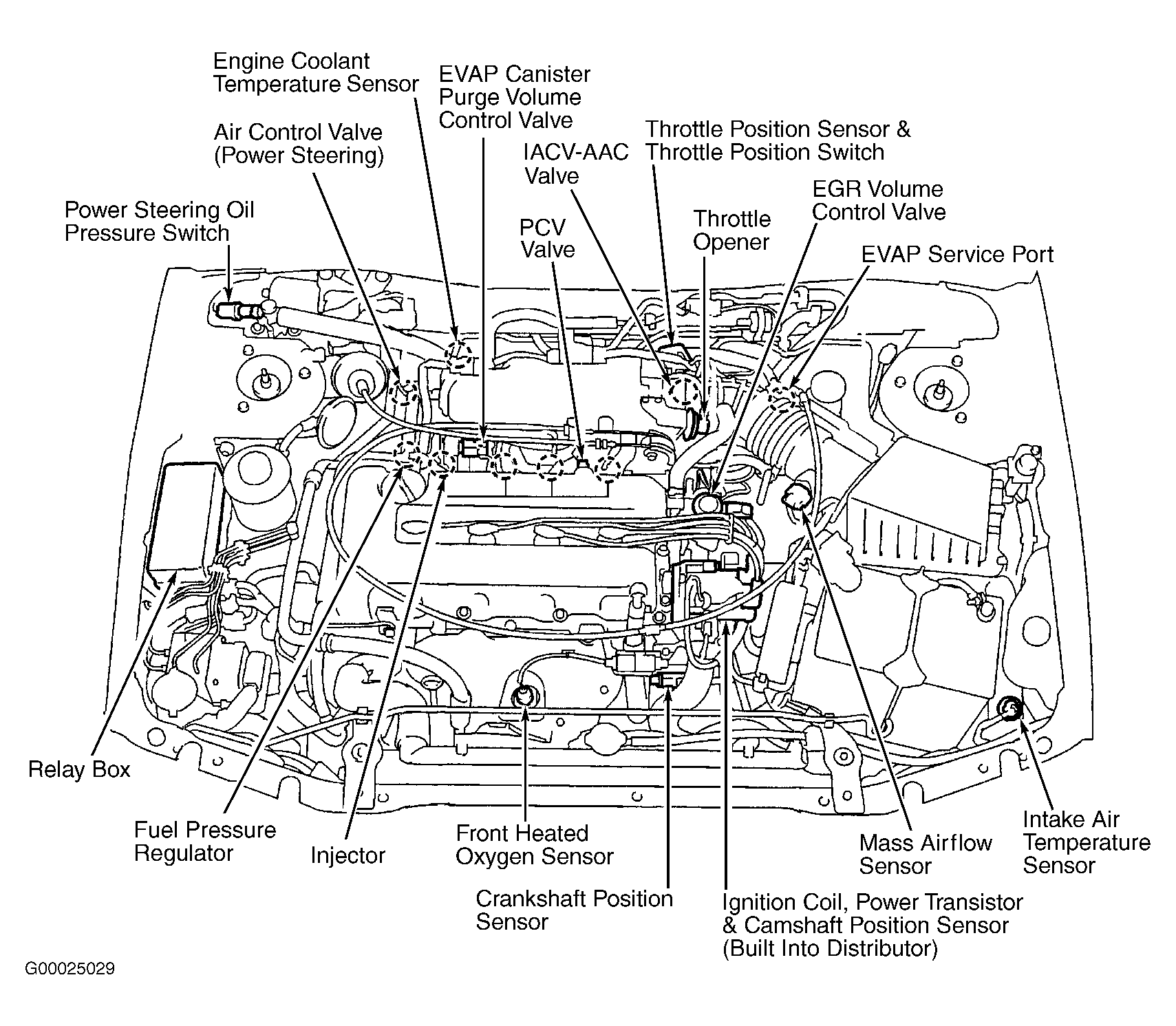

Fig 1: Identifying Underhood Engine Performance Component Locations (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

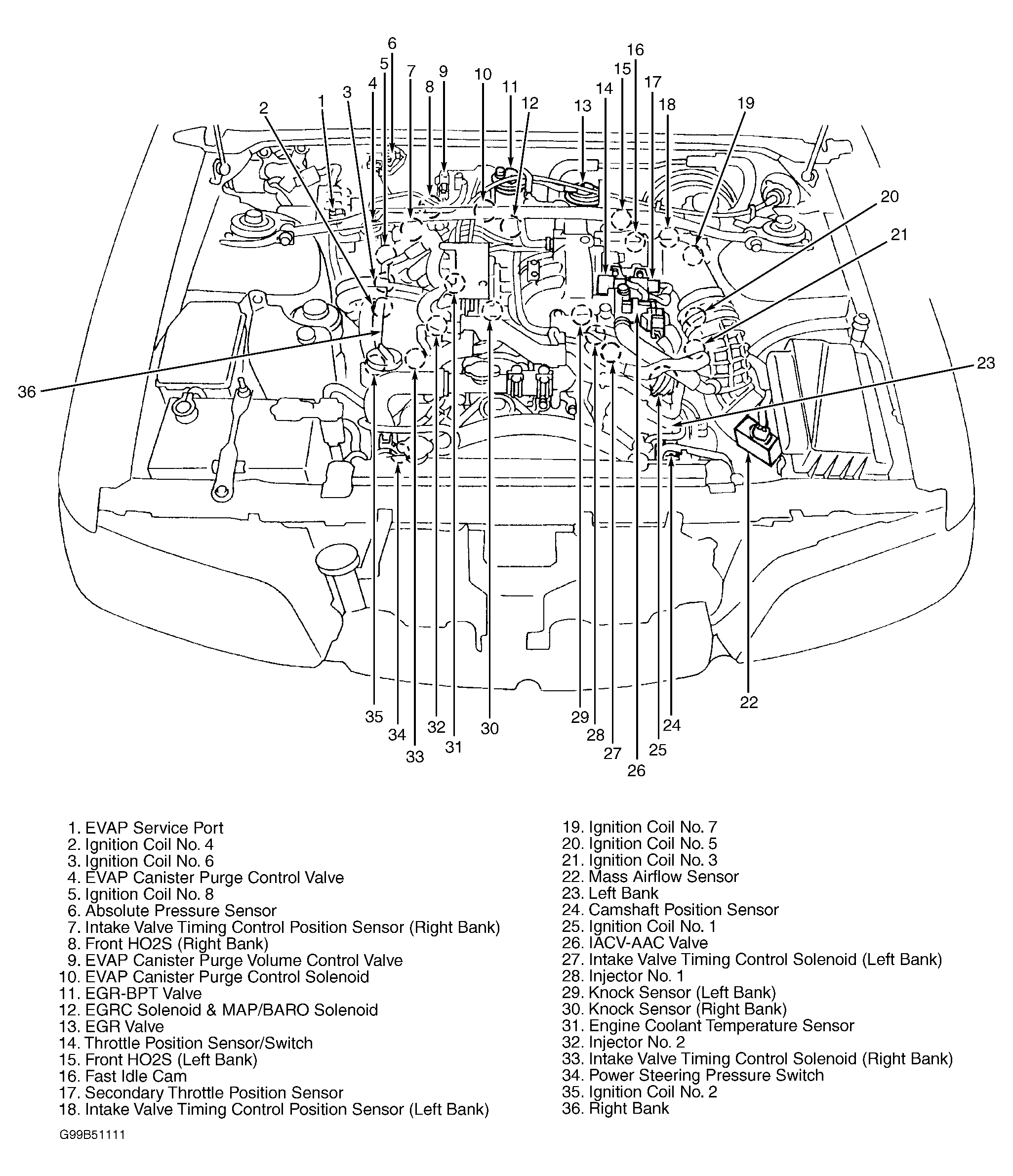

Fig 2: Identifying Underhood Engine Performance Component Locations (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
