Sensor Rotor: Removal

  1. Remove the drive shaft and rear wheel hub. Refer to "DRIVE SHAFT " and "WHEEL HUB ".
  2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

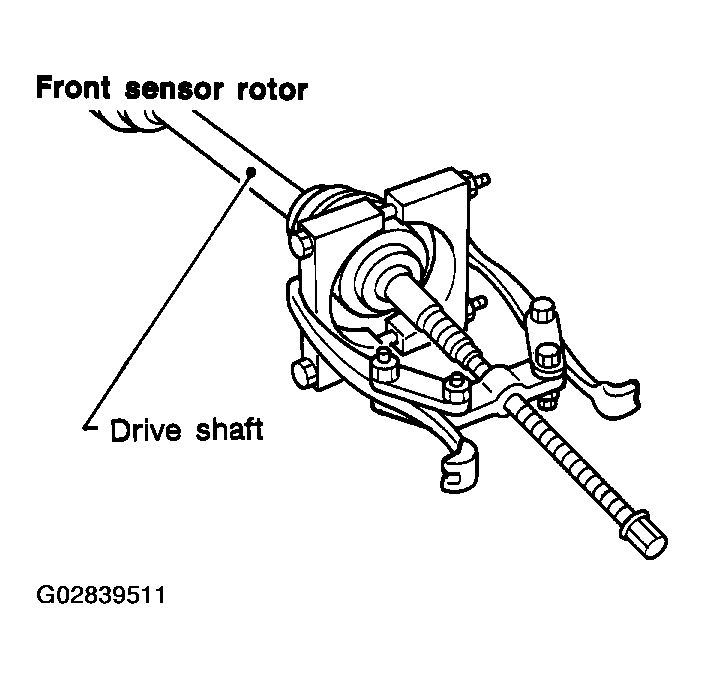

    Fig 1: Removing Front Sensor Rotor
    G02839511

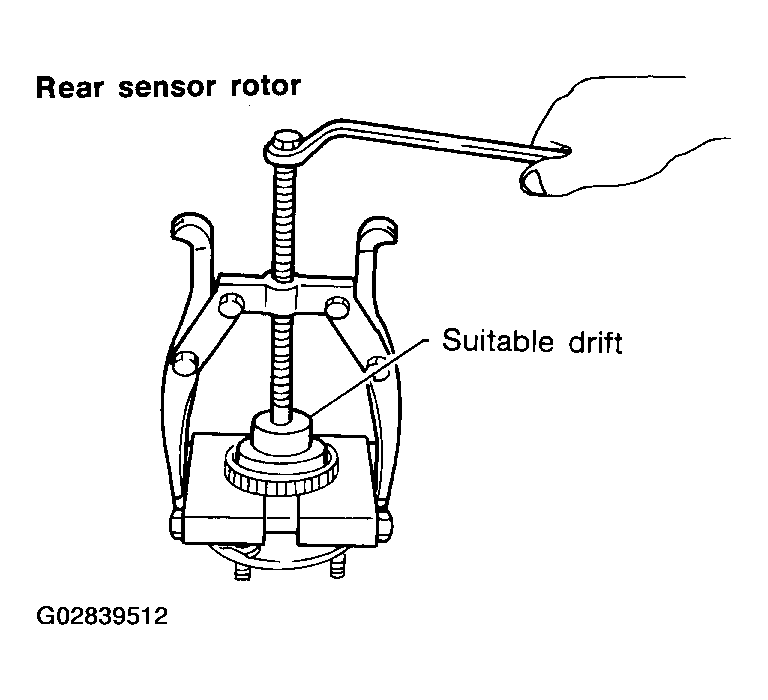

    Fig 2: Removing Rear Sensor Rotor
    G02839512
