Traction Control: TCS: Description: Actuator: Notes

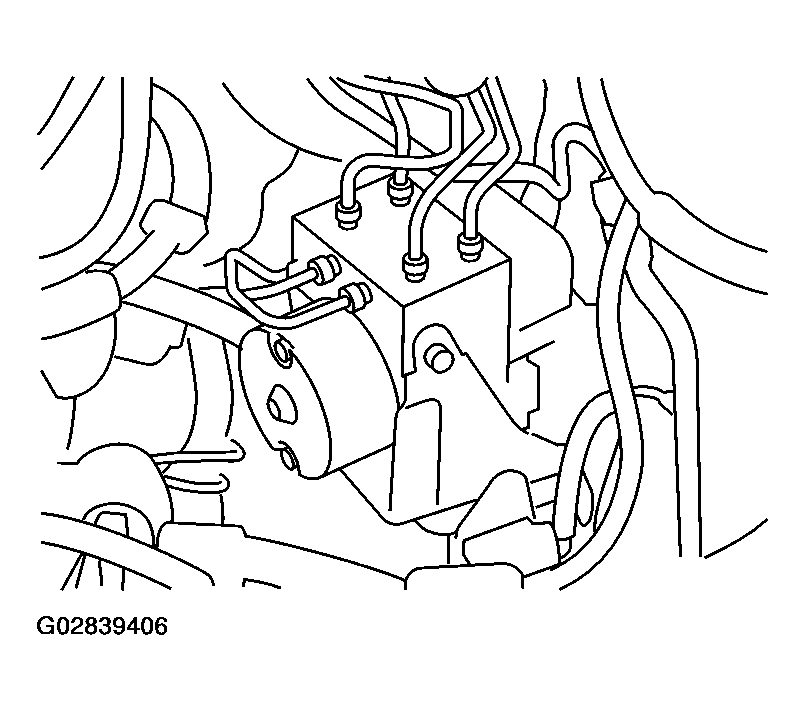

The actuator contains:
An electric motor and pump
Two relays
Eight solenoid valves, each inlet and outlet for
- LH front
- RH front
- LH rear
- RH rear
These components control the hydraulic circuit. The ABS control unit directs the actuator to increase, hold or decrease hydraulic pressure to all or individual wheels.
