Disassembly and Assembly of Radiator Fan: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

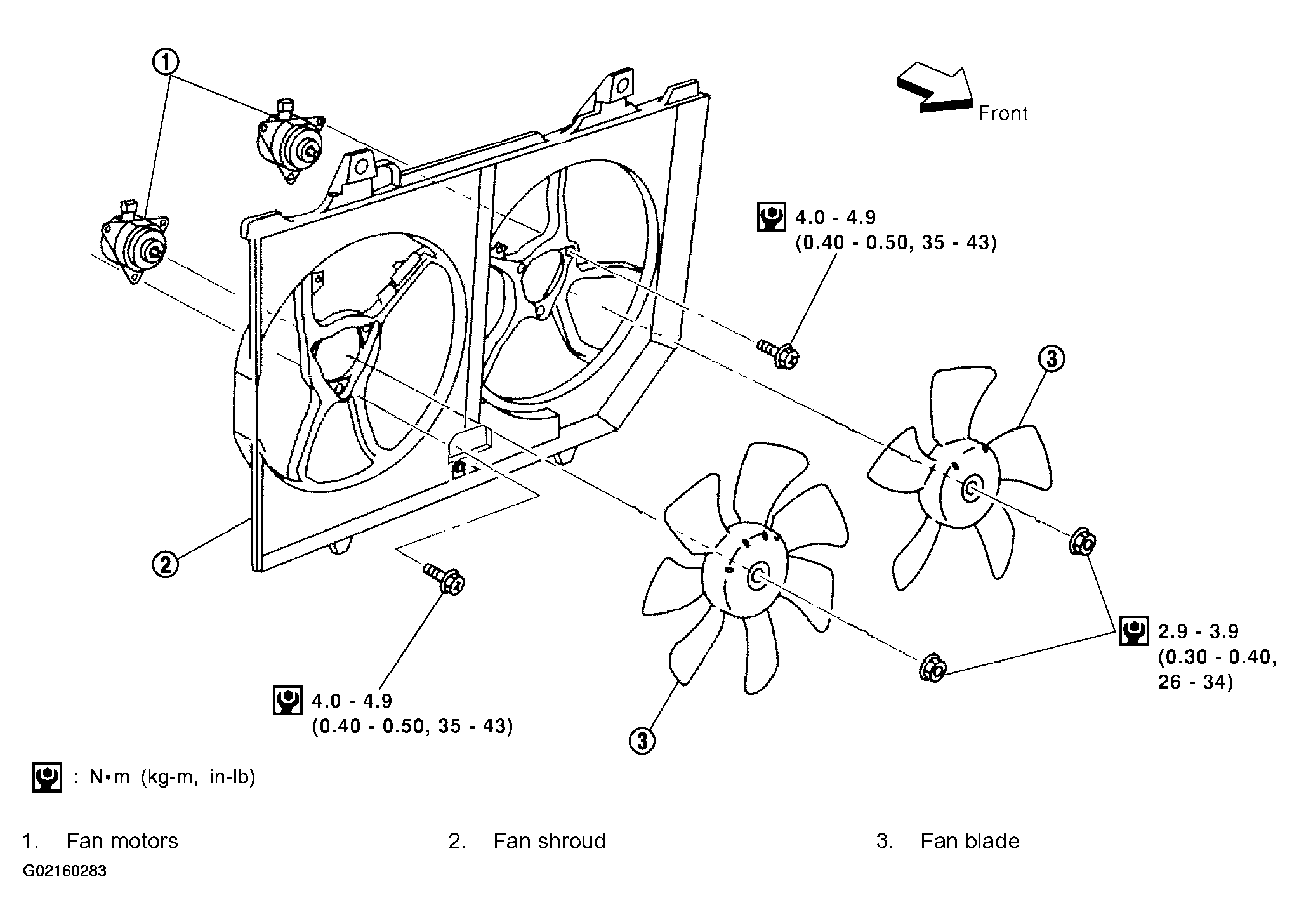

Fig 1: Exploded View Of Radiator Fan With Torque Specifications
G02160283Courtesy of NISSAN MOTOR CO., U.S.A.
