Steering Wheel And Steering Column: Inspection: Notes

• When steering wheel does not turn smoothly, check the steering column as follows and replace damaged parts.
  1. Check column bearings for damage or unevenness. Lubricate with recommended multi-purpose grease or replace steering column as an assembly, if necessary.
  2. Check jacket tube for deformation or breakage. Replace if necessary.
• When the vehicle comes into a light collision, check length "L".

  Steering column length "L": 542 - 544 mm (21.34 - 21.42 in)

If out of the specifications, replace steering column as an assembly.

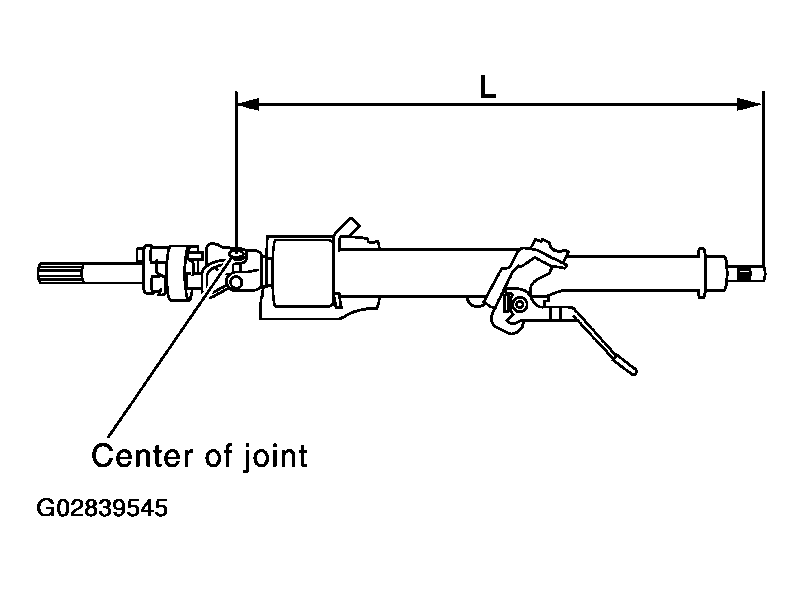

Fig 1: Checking Length L
