How to perform function check.

  1. Lock the doors with door lock/unlock switch on driver's door trim.
  2. Touch "FUNCTION CHECK".
  3. Touch "DOOR UNLOCK".
    Fig 1: Door Unlock Display
    G02843199
  4. Touch "START". Then driver side door will be unlocked.
    • If the door cannot be unlocked using CONSULT-II, check harness for open or short between rear LH door control unit (LCU04) terminal (2) and IVCS unit terminal (32).

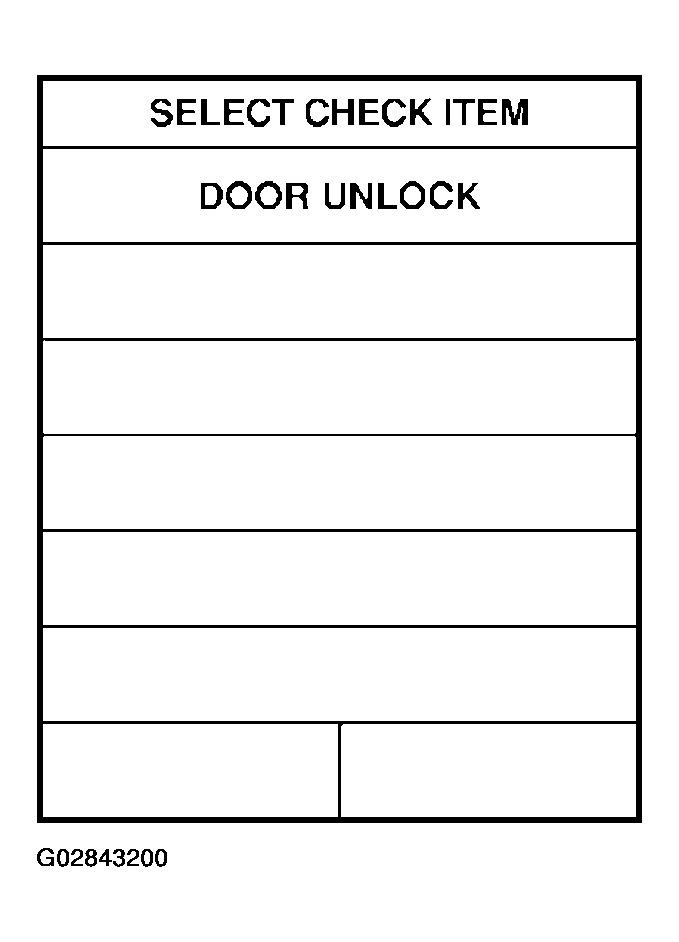

      • Fig 2: Start Display
      G02843200
