Display With Pushed "MAP" Switch

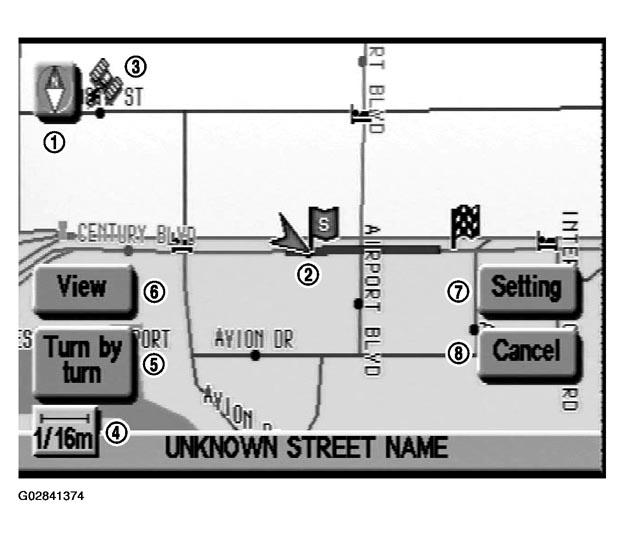

Fig 1: MAP SWITCH Display

The function of each touch switch is as follows:

1. Azimuth indication
2. Position marker

   The tip of the arrow shows the current position. The shaft of the arrow indicates the direction in which the vehicle is traveling.

3. GPS reception signal (indicates current reception conditions)
4. Distance display (shows the distance in a reduced scale)
5. Current location voice information

   (this information is available when the route guide is being activated and the designated route is being traveled.)

6. Switch display from map screen to BIRDVIEW(R) screen (change to map screen on display when the BIRDVIEW(R) is being used.)
7. The following items can be set.
   • Save Current Location
   • Edit Address Book
   • Guide Volume
   • System Setting
8. The route guide operation can be canceled.
