Diagnostic Trouble Code (DTC) Confirmation Procedure

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.
  2. Start engine.
  3. Run engine for at least 2 seconds at idle speed.

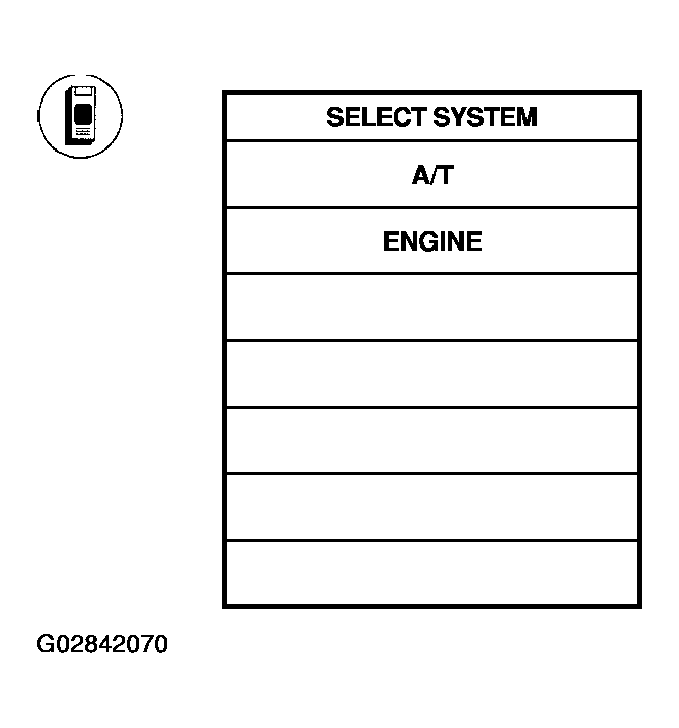

    Fig 1: Displaying Select System Mode
    G02842070

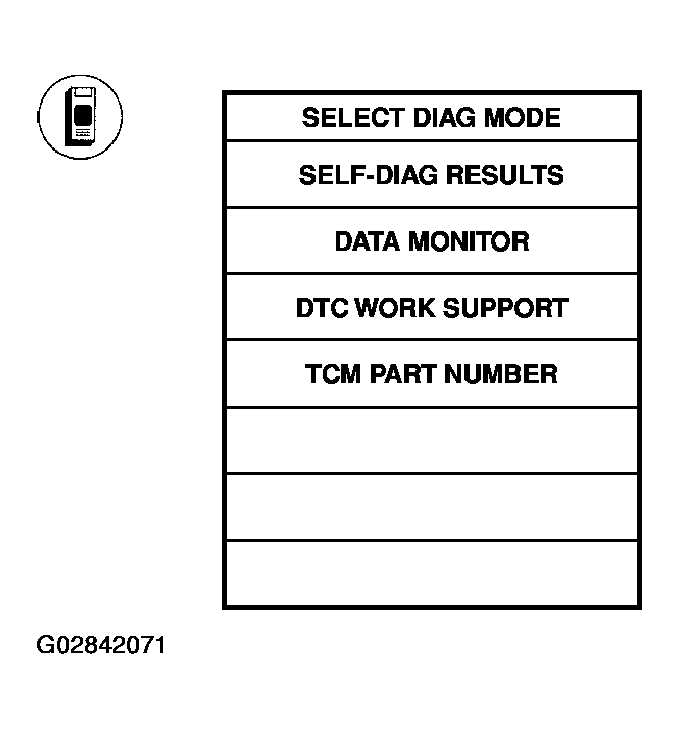

    Fig 2: Displaying Select Diagnostic Mode
    G02842071
