Data Monitor Procedure

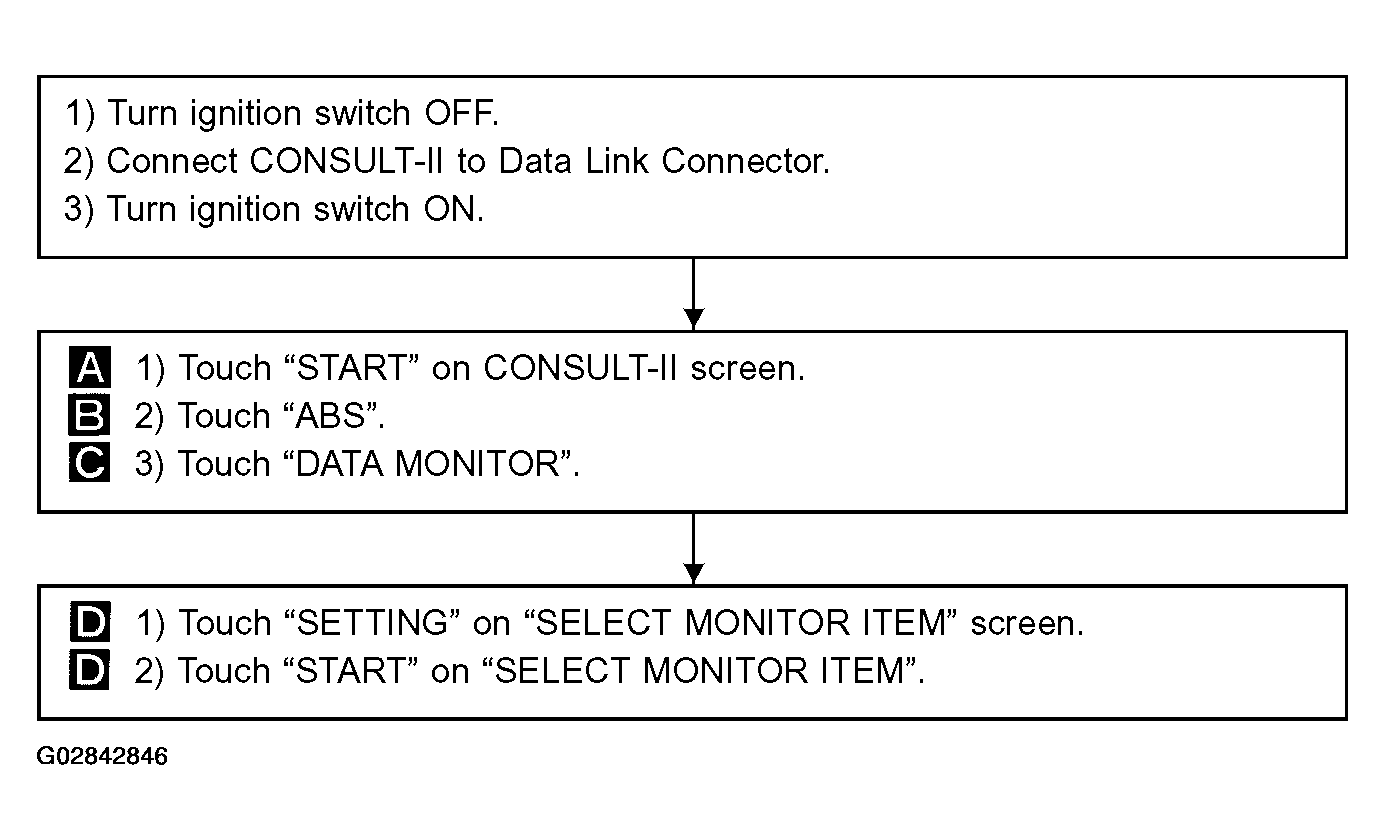

Fig 1: Data Monitor Procedure Flow Chart
G02842846

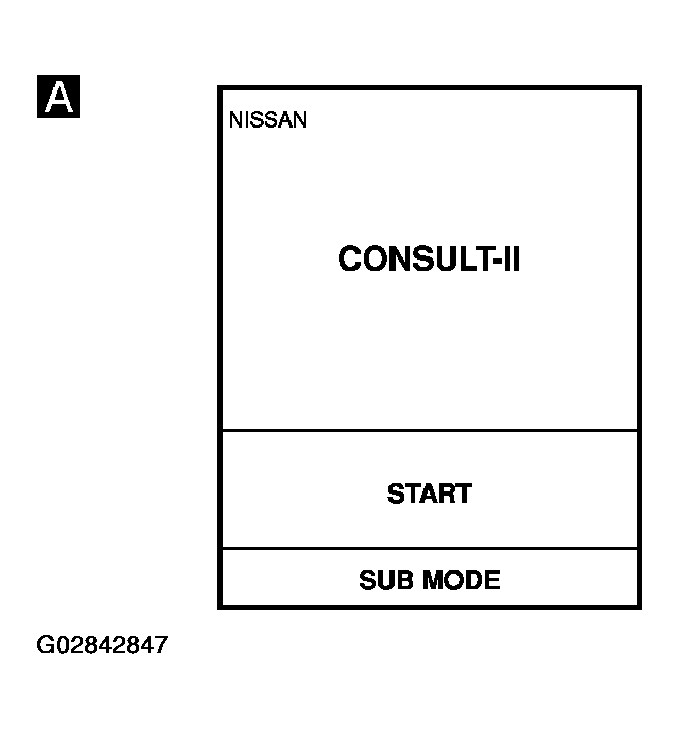

Fig 2: CONSULT-II Display - Touch START
G02842847

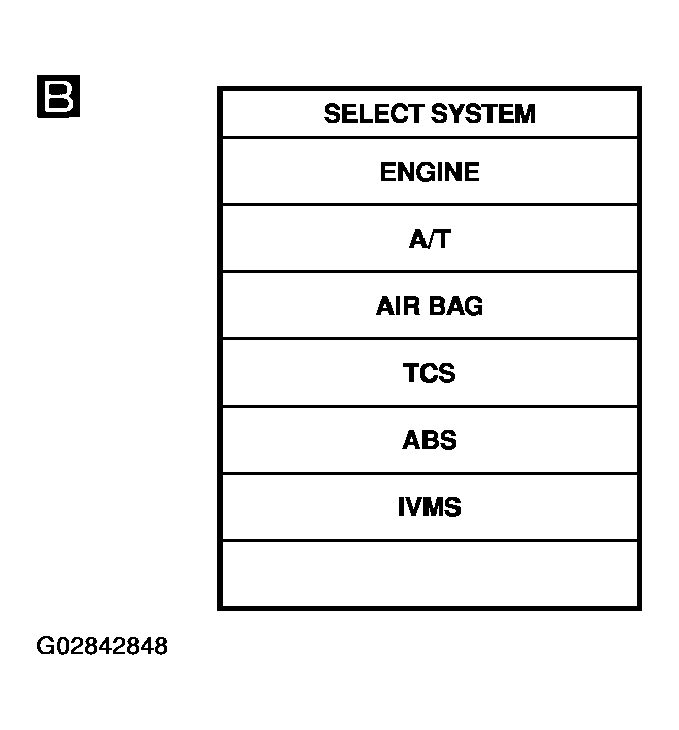

Fig 3: CONSULT-II Display - Touch ABS
G02842848

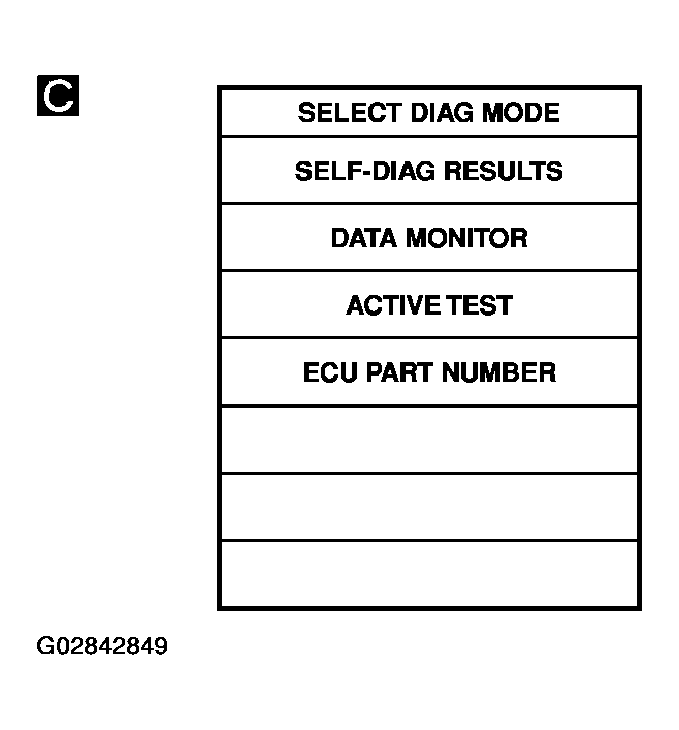

Fig 4: CONSULT-II Display - Touch DATA MONITOR
G02842849

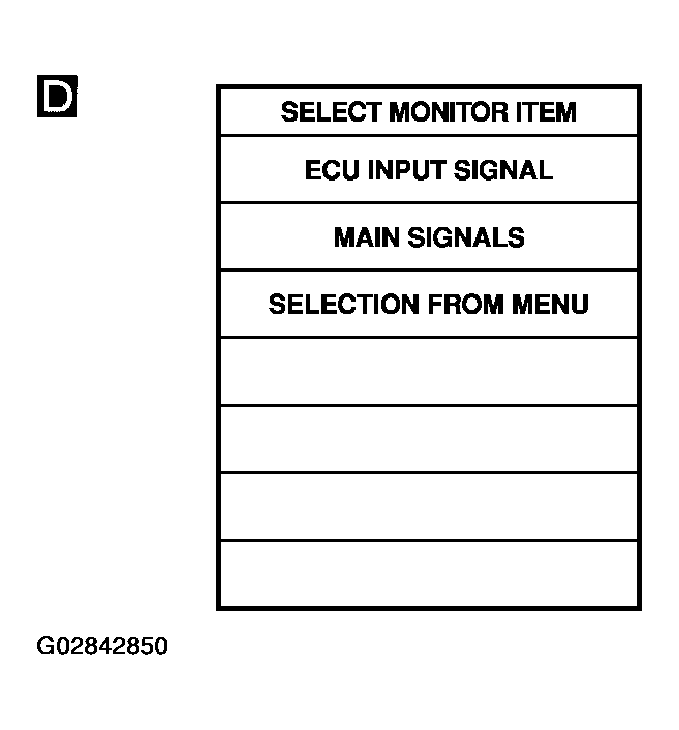

Fig 5: CONSULT-II Display - Touch SELECT MONITOR ITEM
G02842850
