Self-Diagnosis Procedure

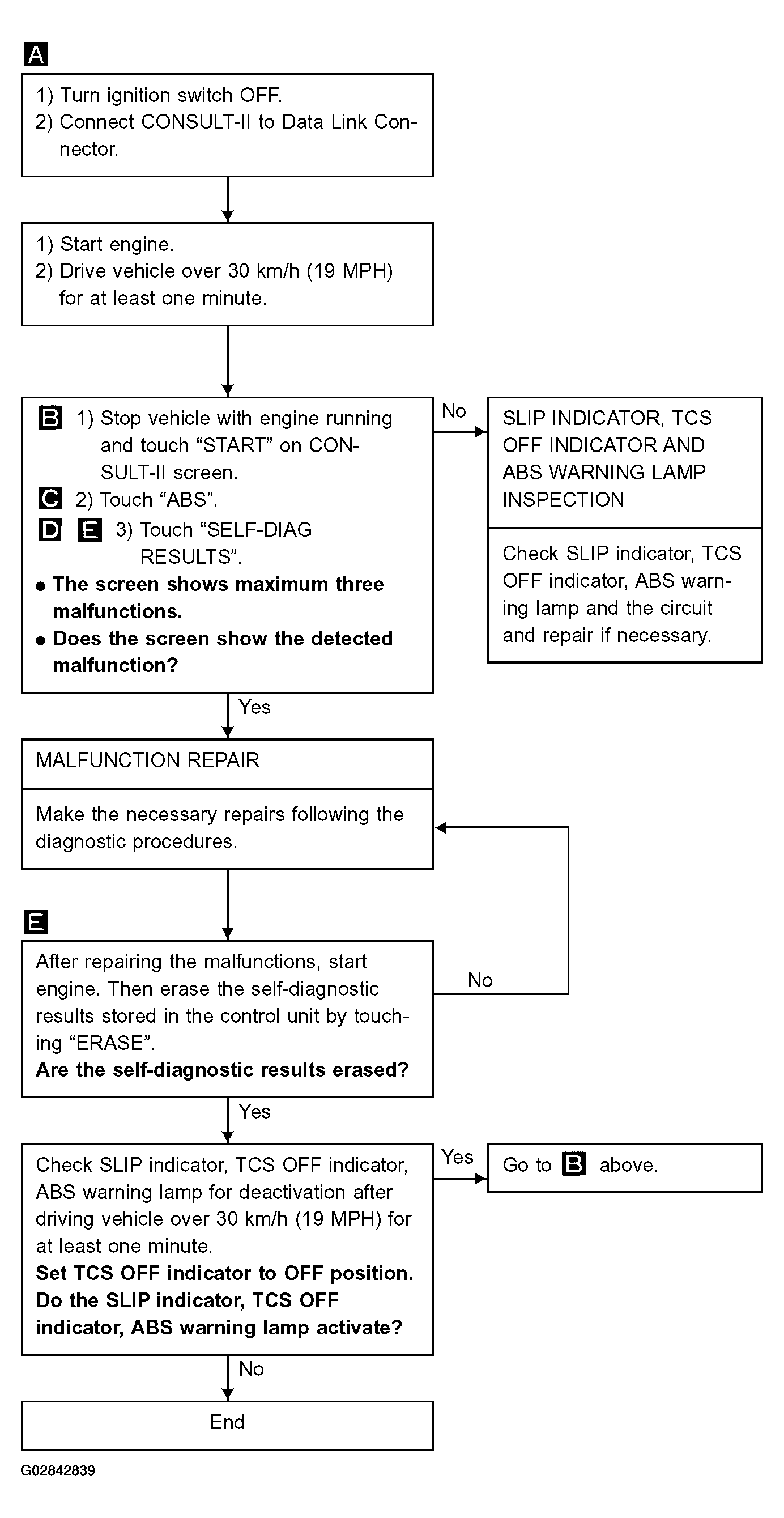

Fig 1: Self-Diagnosis Procedure Flow Chart

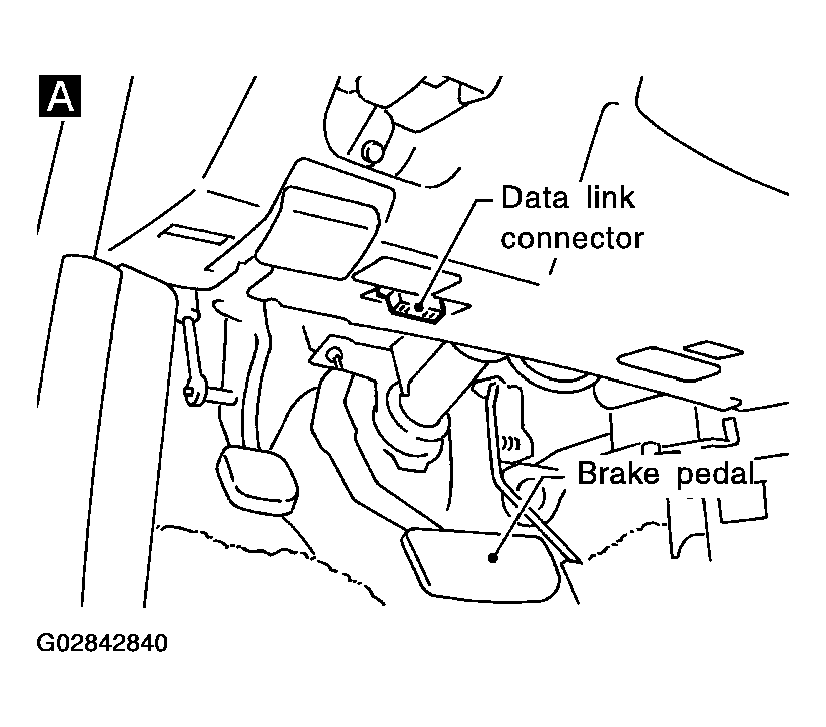

Fig 2: Locating Data Link Connector

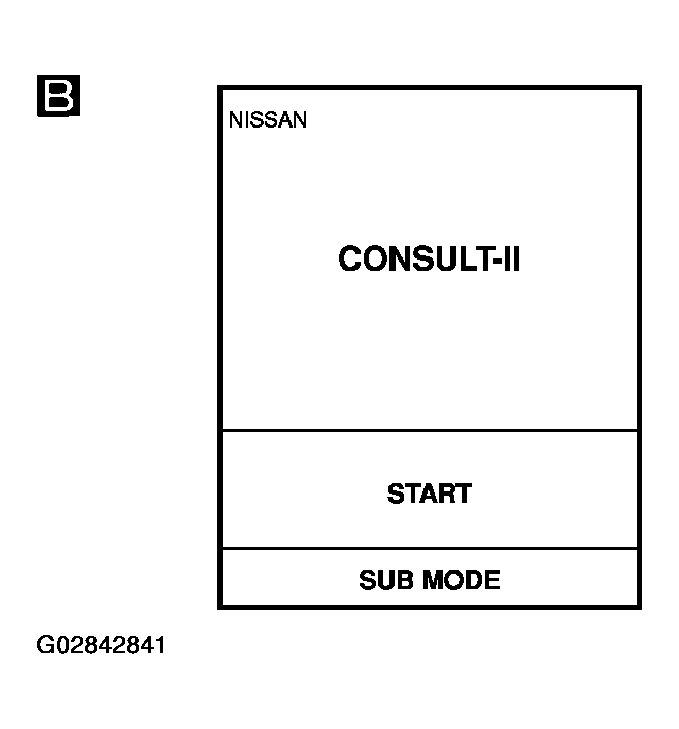

Fig 3: CONSULT-II Display - Touch START

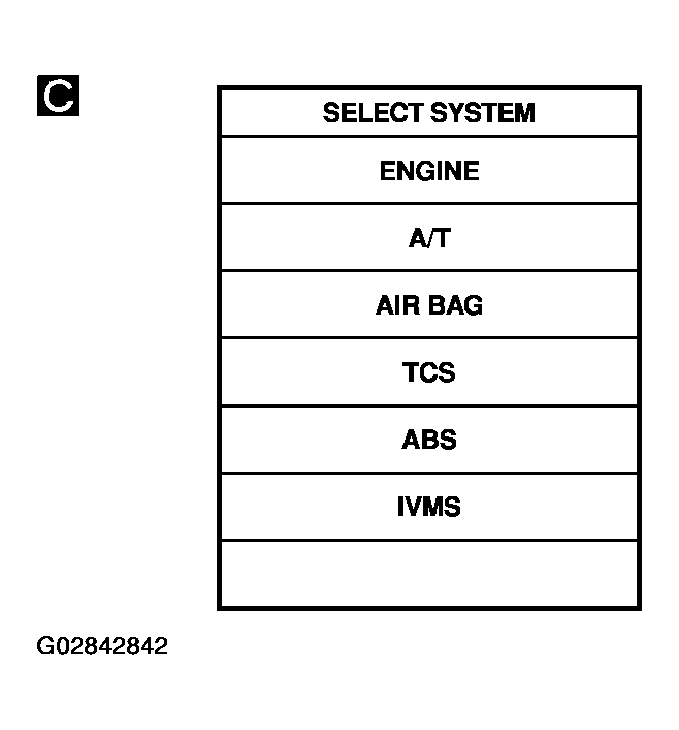

Fig 4: CONSULT-II Display - Touch ABS

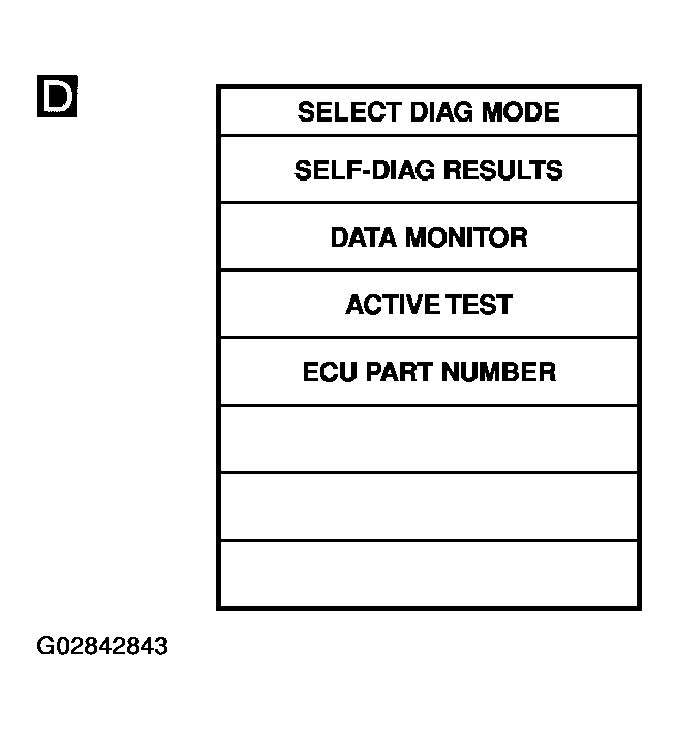

Fig 5: CONSULT-II Display - Touch SELF-DIAG RESULTS

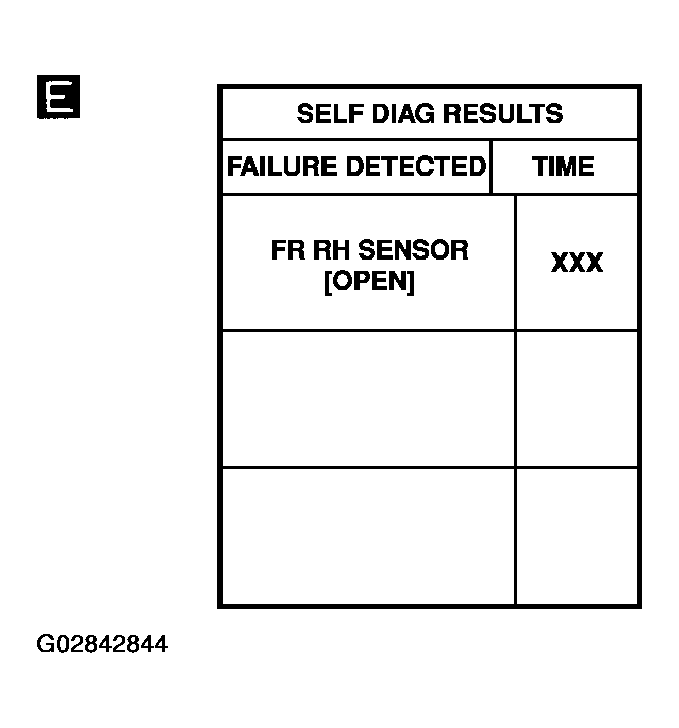

Fig 6: CONSULT-II Display Showing Diagnostic Results

NOTE: SELF-DIAG RESULTS screen shows the detected malfunction and the times of ignition switch ON and OFF after it occurred.
