Active Test Procedure

When conducting Active test, vehicle must be stationary.

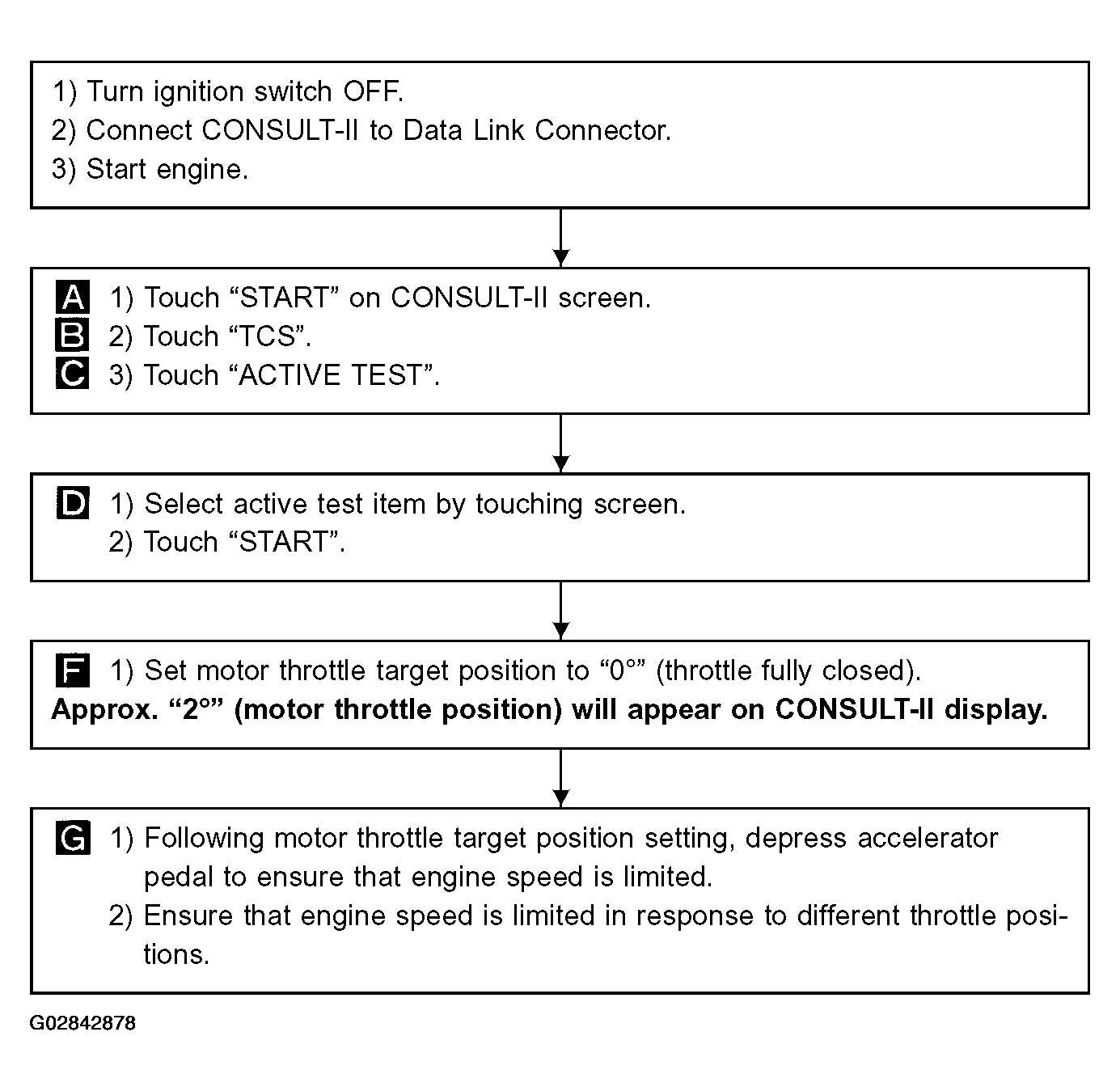

Fig 1: Active Test Procedure Flow Chart

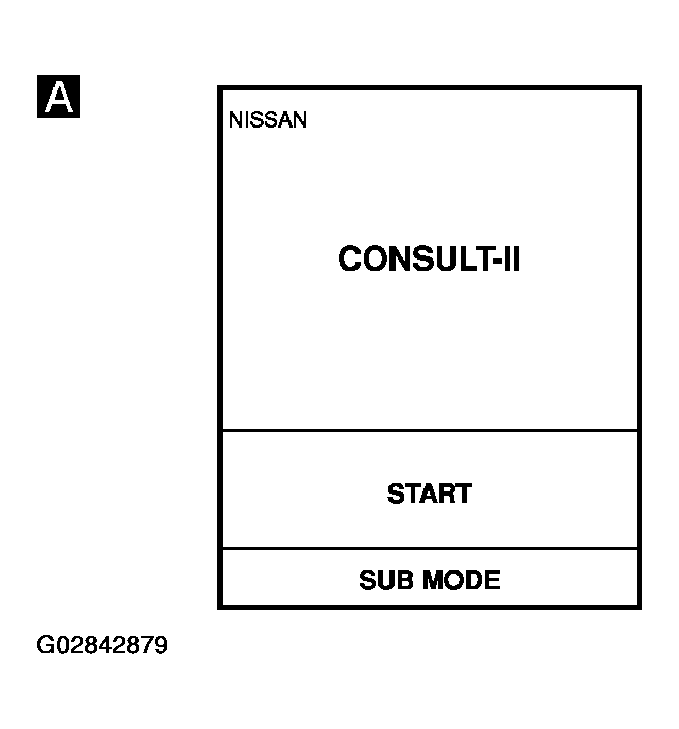

Fig 2: CONSULT-II Display - Touch START

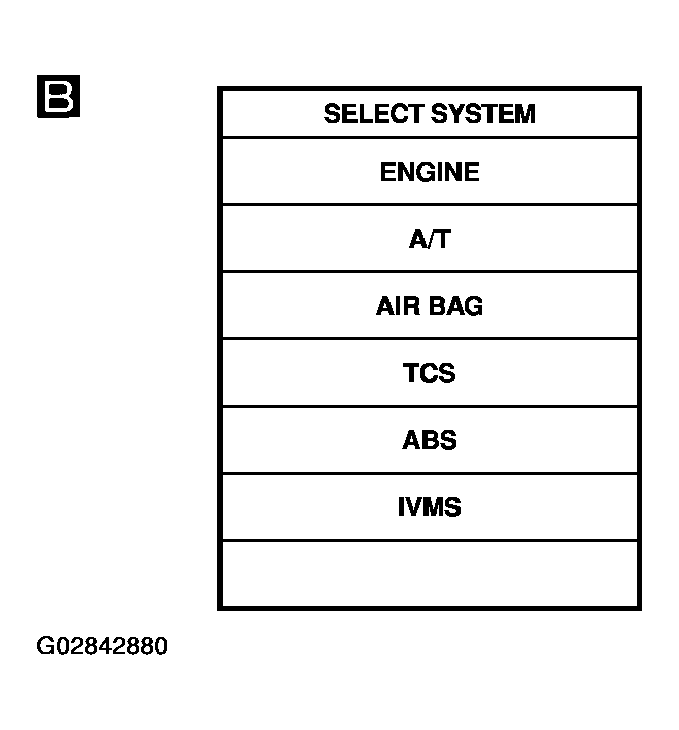

Fig 3: CONSULT-II Display - Touch TCS

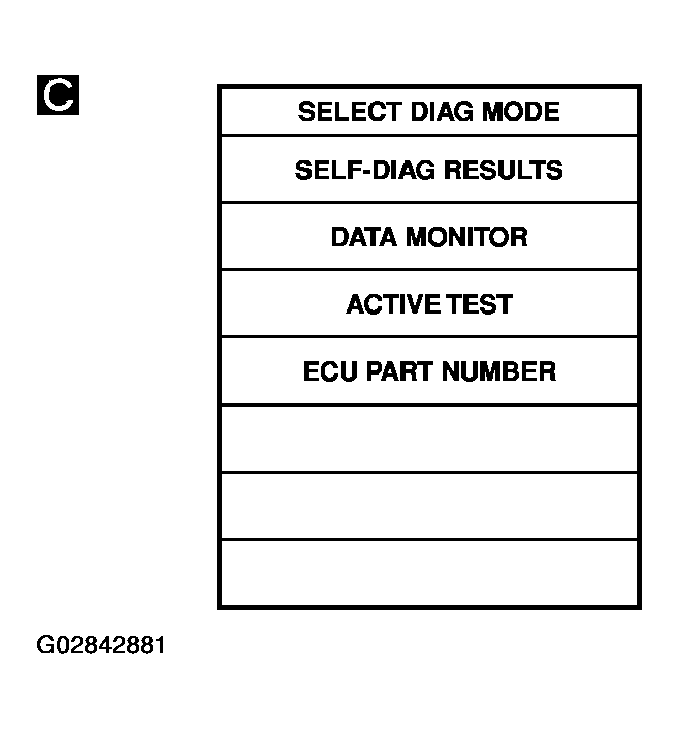

Fig 4: CONSULT-II Display - Touch ACTIVE TEST

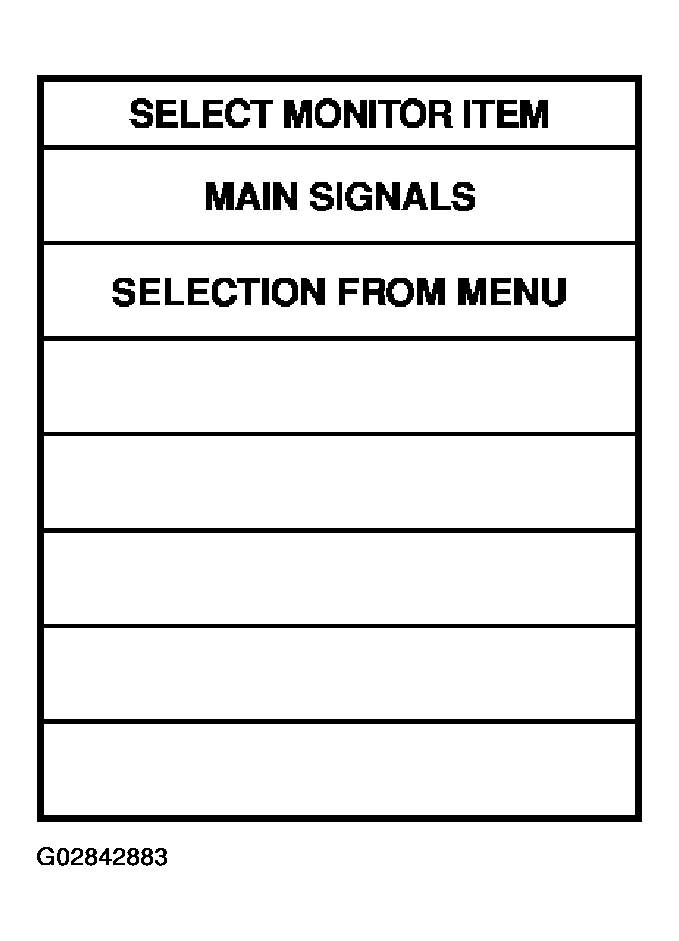

Fig 5: CONSULT-II Display - Touch START

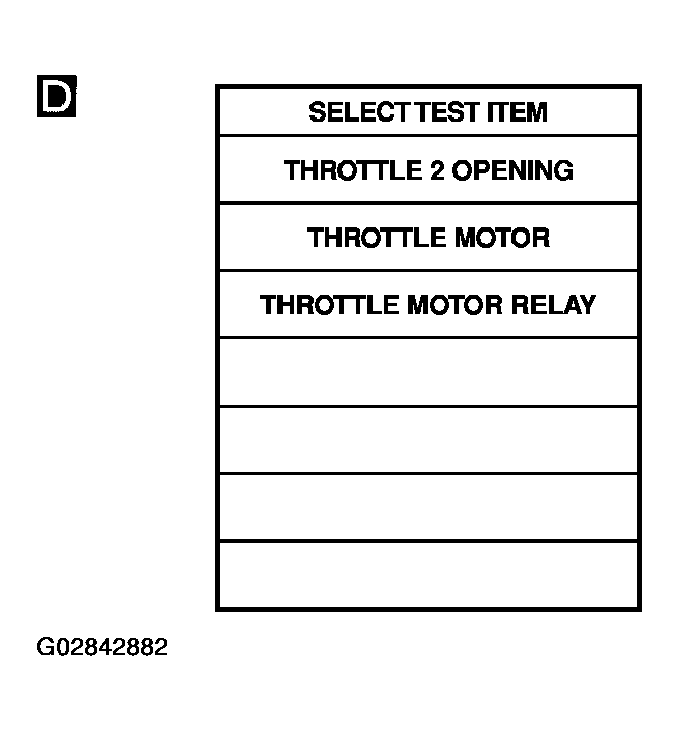

Fig 6: CONSULT-II Display - Touch SELECT TEST ITEM

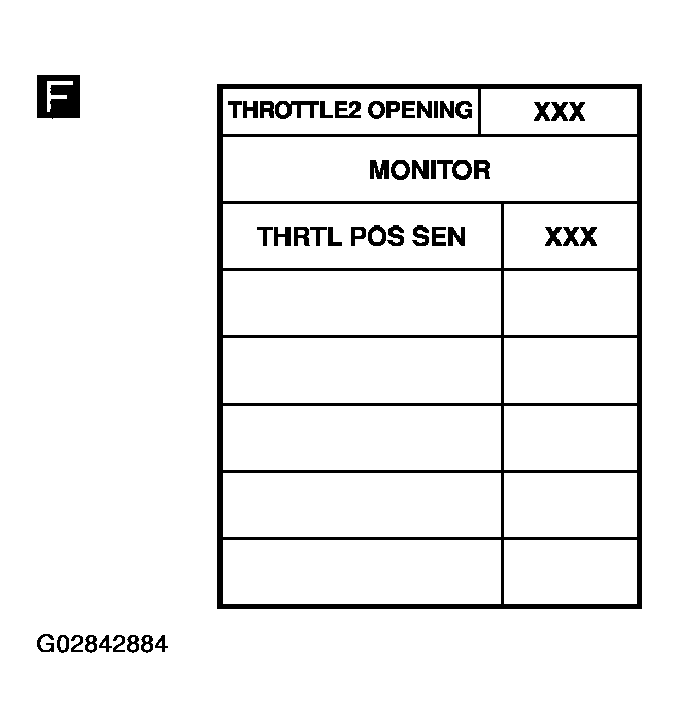

Fig 7: CONSULT-II Display - Throttle Position

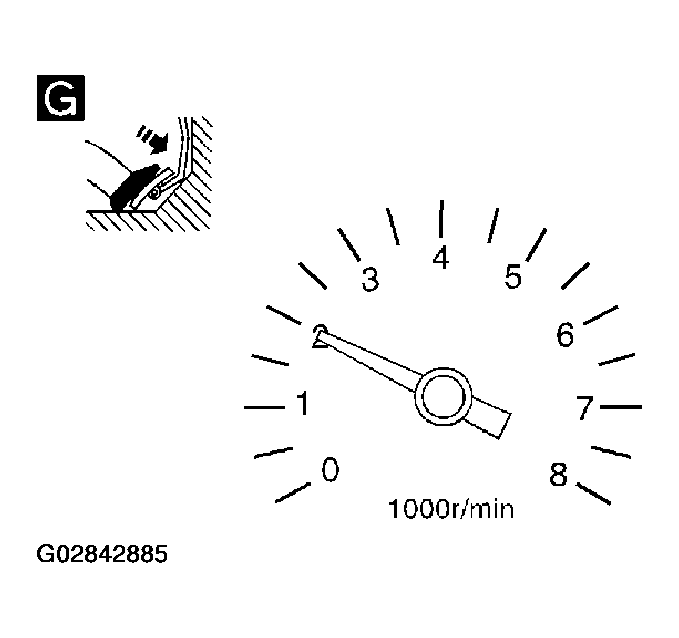

Fig 8: Identifying Tachometer
