Data Monitor Procedure

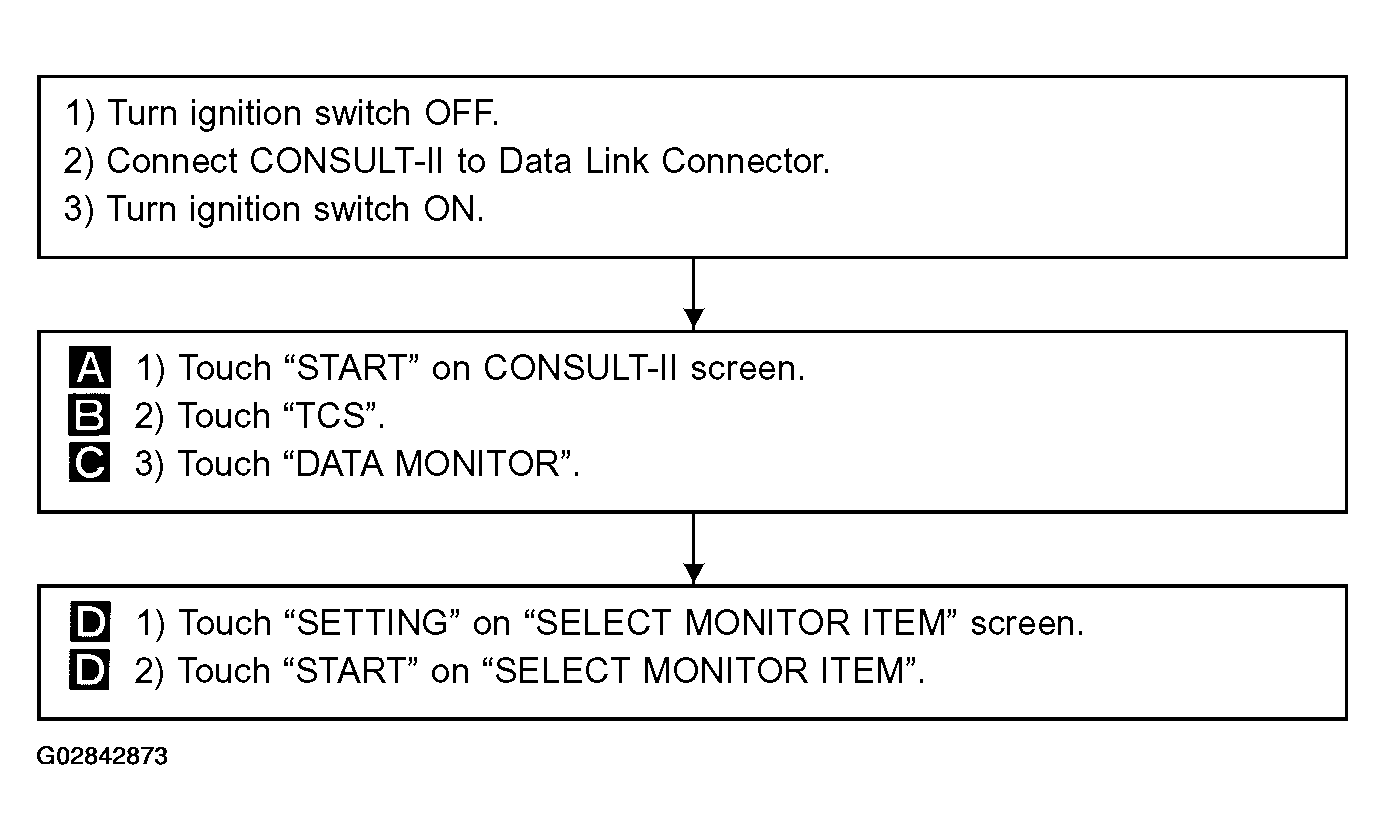

Fig 1: Data Monitor Procedure Flow Chart
G02842873

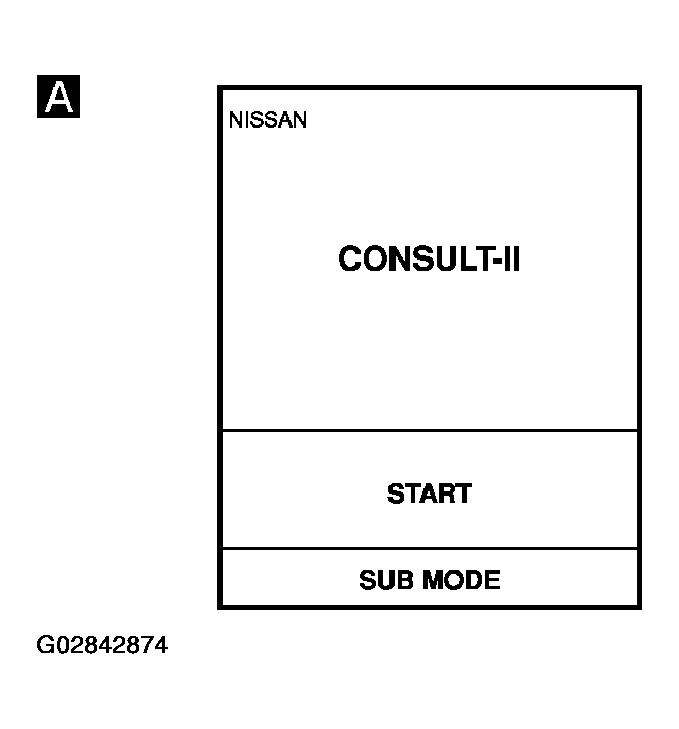

Fig 2: CONSULT-II Display - Touch START
G02842874

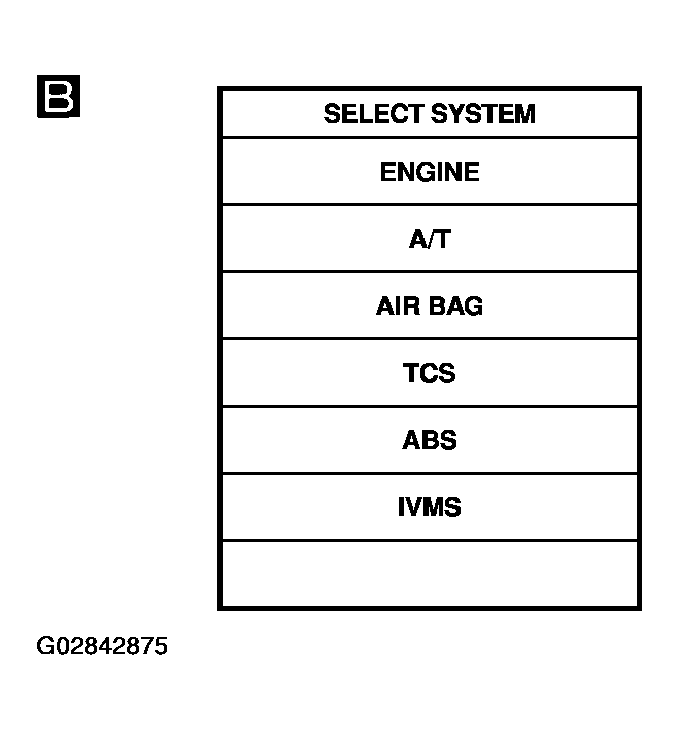

Fig 3: CONSULT-II Display - Touch TCS
G02842875

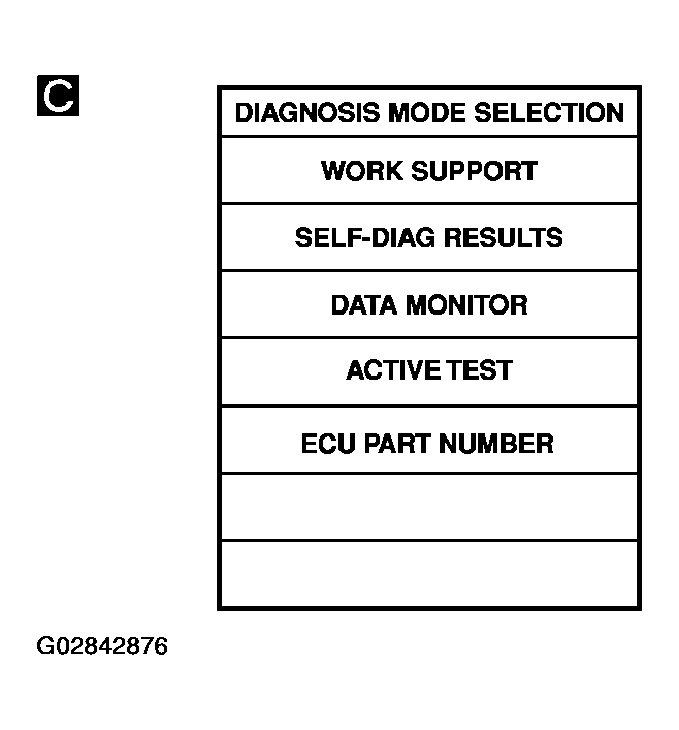

Fig 4: CONSULT-II Display - Touch DATA MONITOR
G02842876

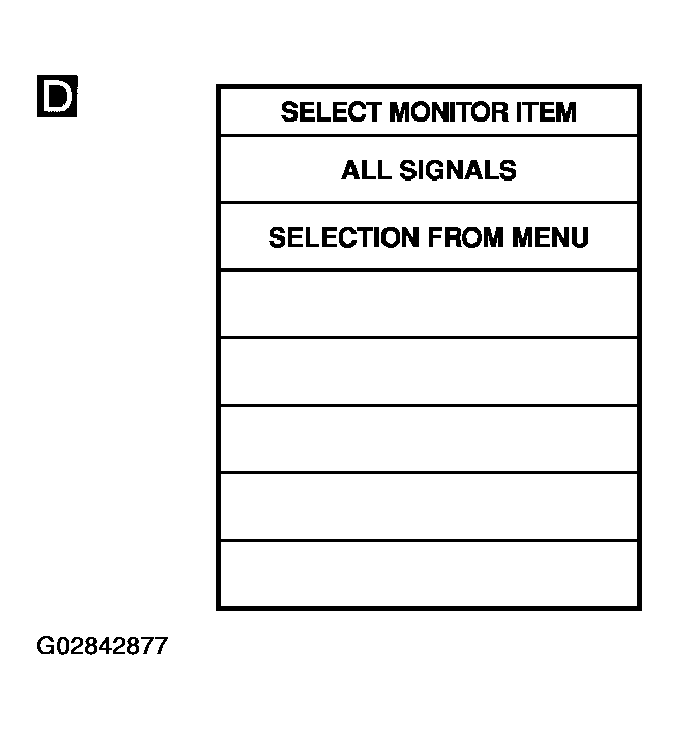

Fig 5: CONSULT-II Display - Touch SELECT MONITOR ITEM
G02842877
