Self-Diagnostic Results Mode

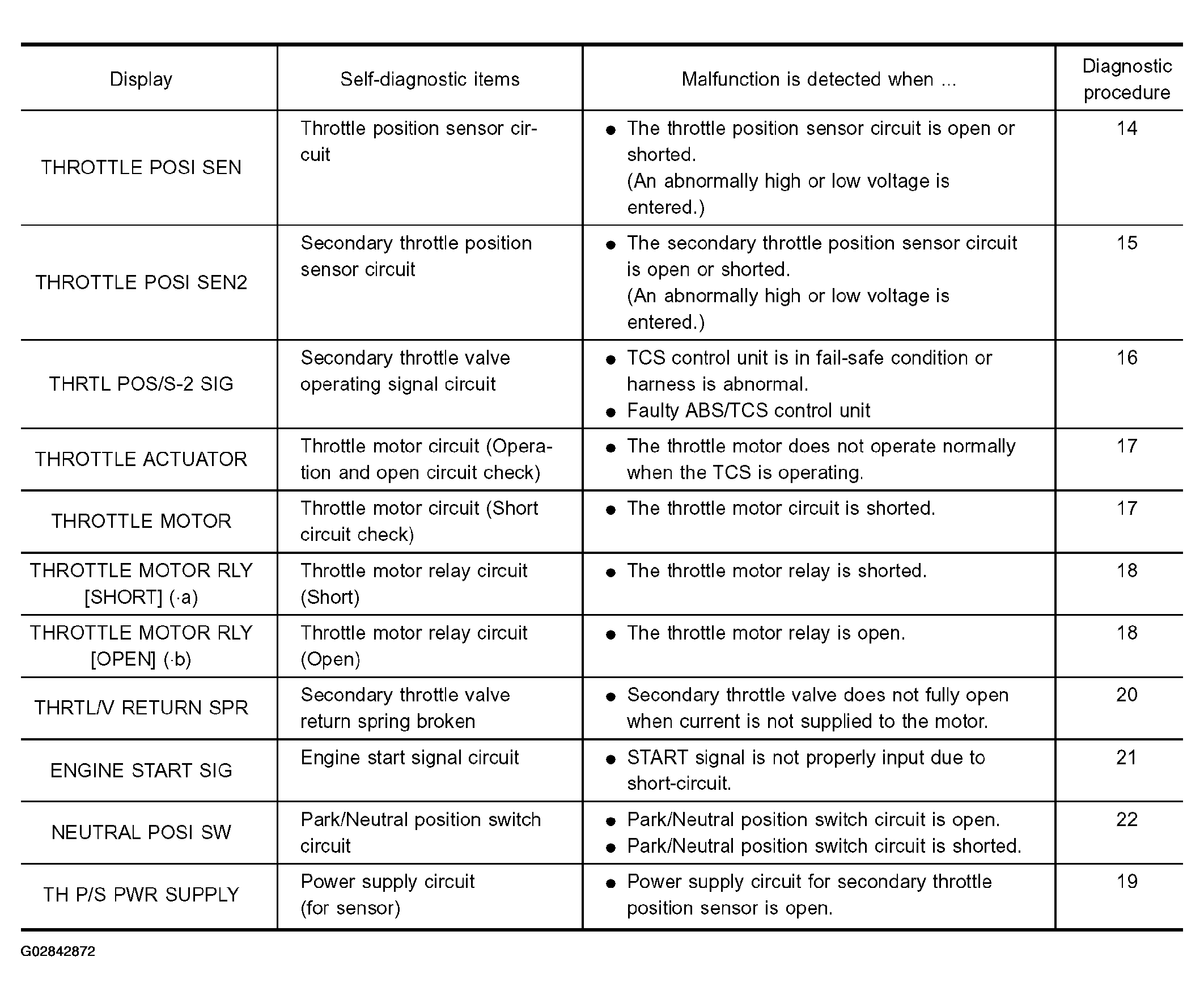

Fig 1: Self-Diagnostic Results Mode Chart

NOTE: Appears on display when self-diagnosis is performed with self-diagnostic check terminal (terminal No. 9 of data link connector) shorted to ground.
