Communication Line Between Abs/TCS Control Unit And TAC Module

Code No. 58 of ABS/TCS control unit

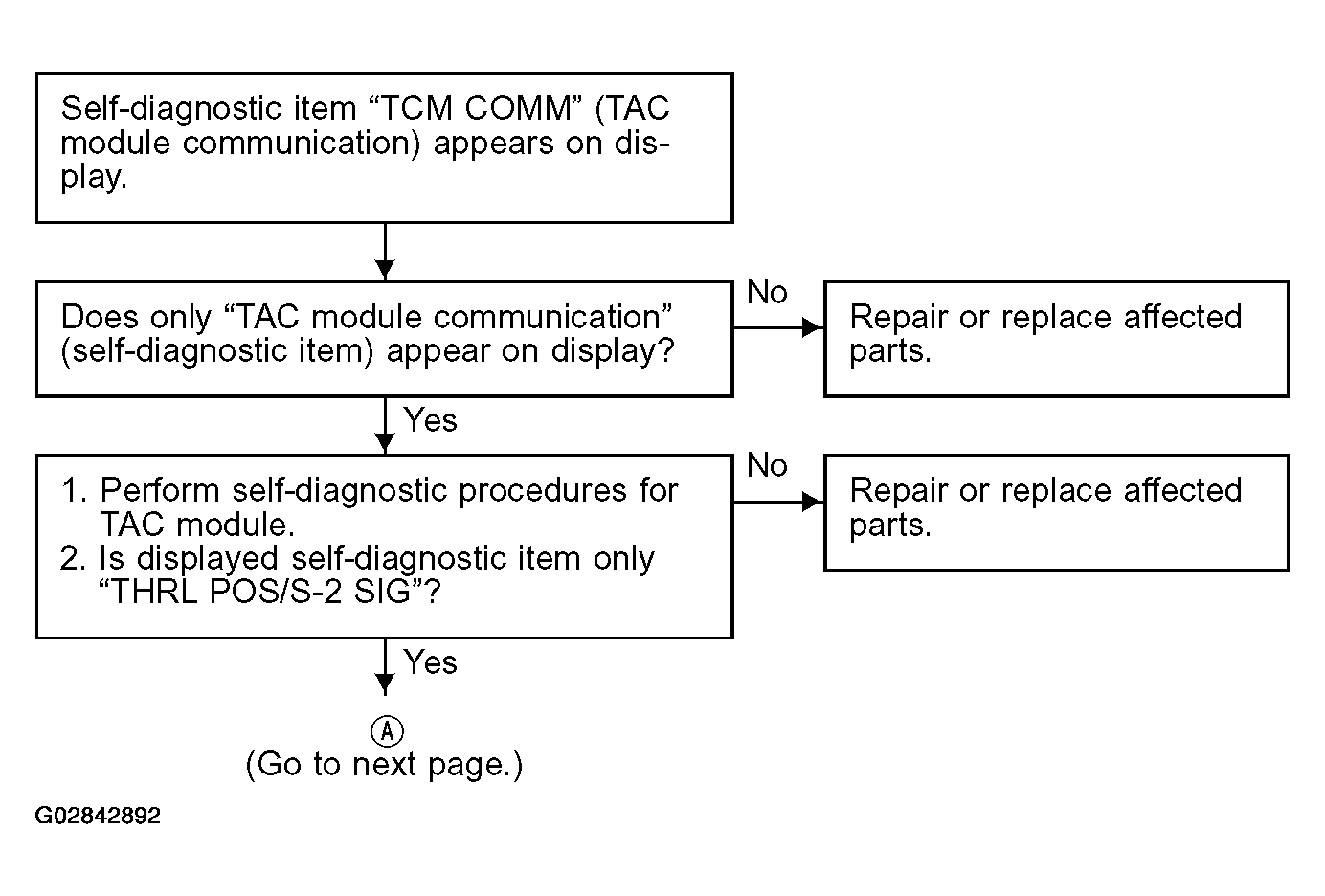

Fig 1: Diagnostic Procedure Flow Chart (1 Of 3)

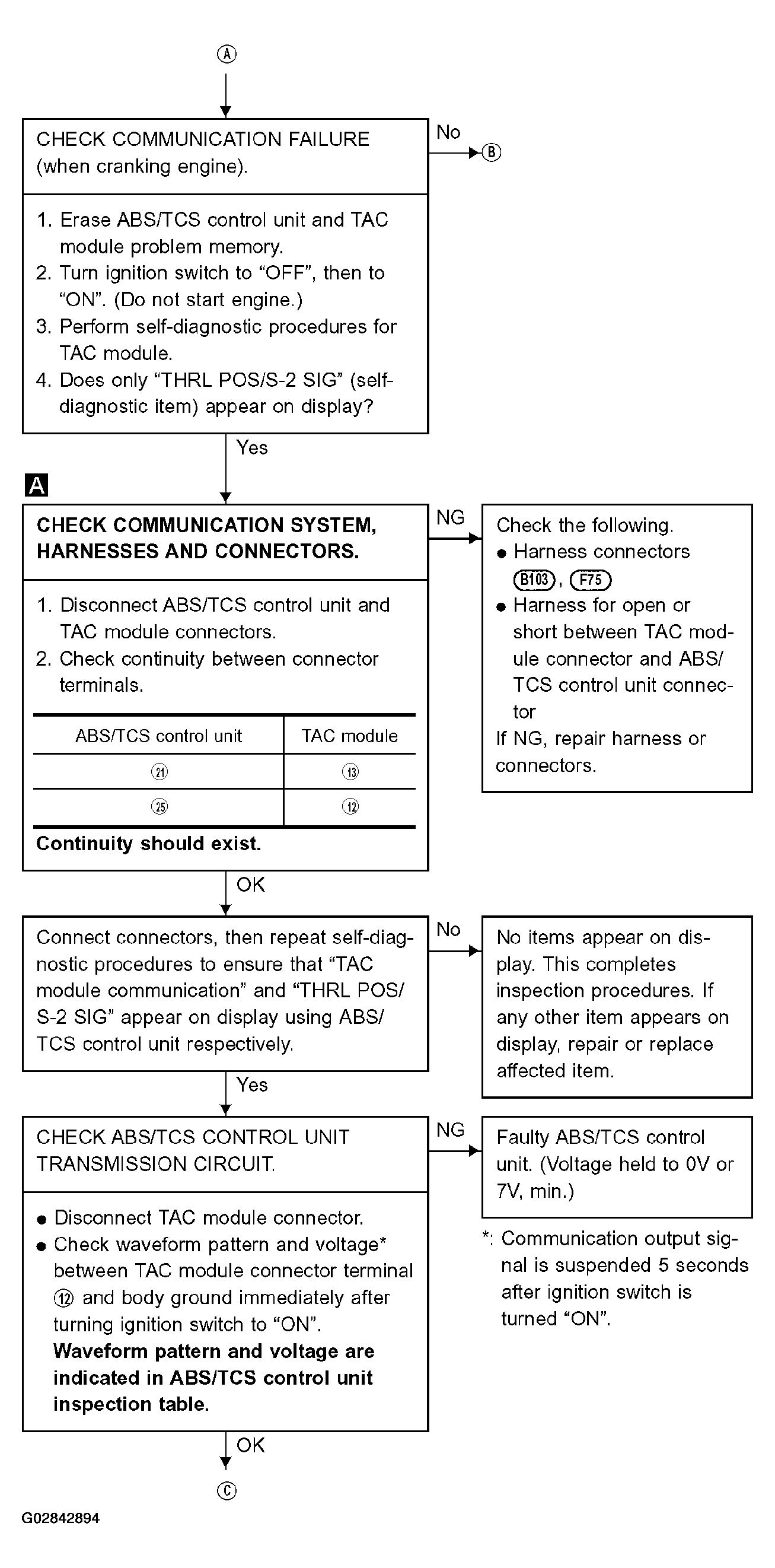

Fig 2: Diagnostic Procedure Flow Chart (2 Of 3)

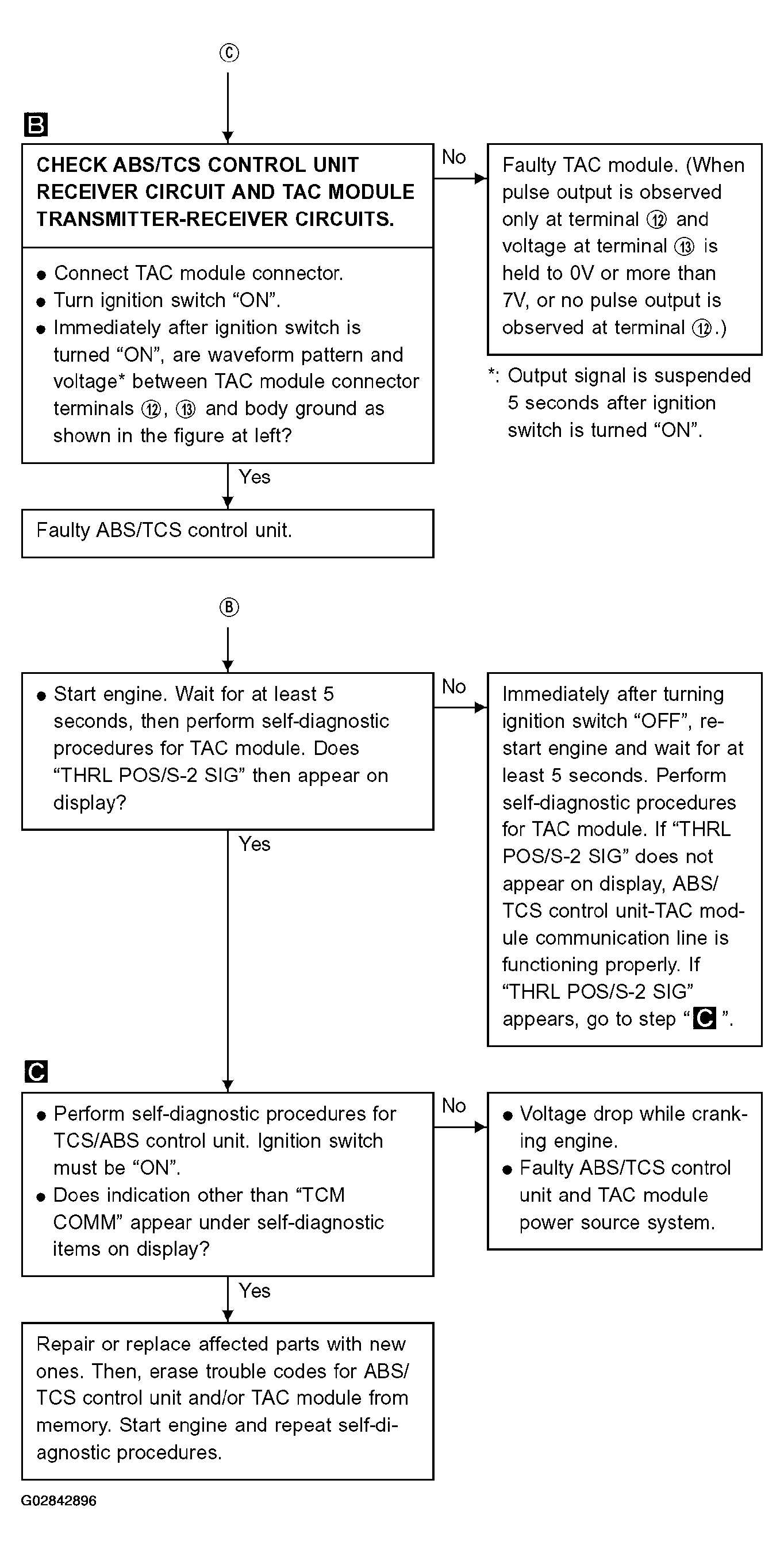

Fig 3: Diagnostic Procedure Flow Chart (3 Of 3)

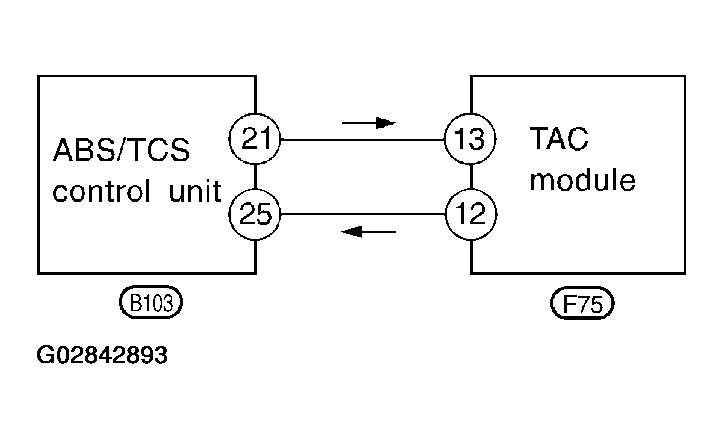

Fig 4: ABS/TCS Control Unit And TAC Module Communication Diagram

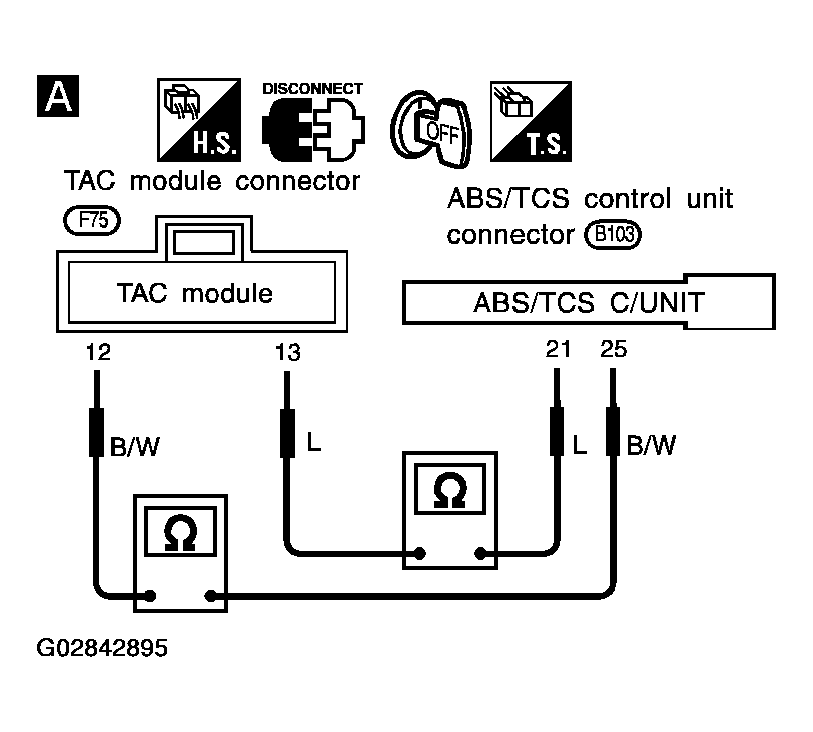

Fig 5: Checking Continuity Between ABS/TCS Control Unit And TAC Module Terminals

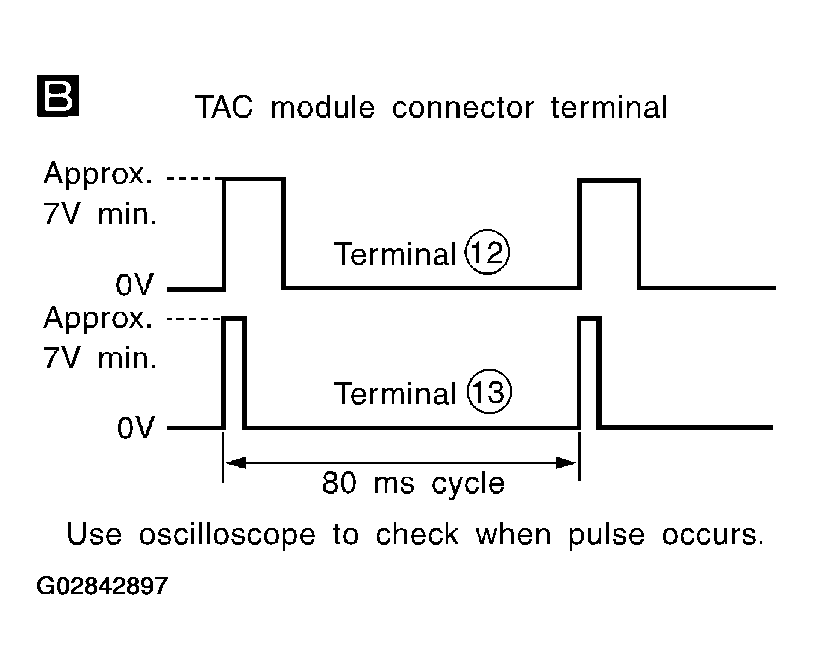

Fig 6: Identifying Expected Oscilloscope Patterns At TAC Module Terminals
