TCS Off Switch

Check continuity between terminals as shown.

TCS OFF SWITCH CONDITION AND CONTINUITY SPECIFICATIONS

SWITCH condition	Continuity existence
Pushed	Yes
Released	No

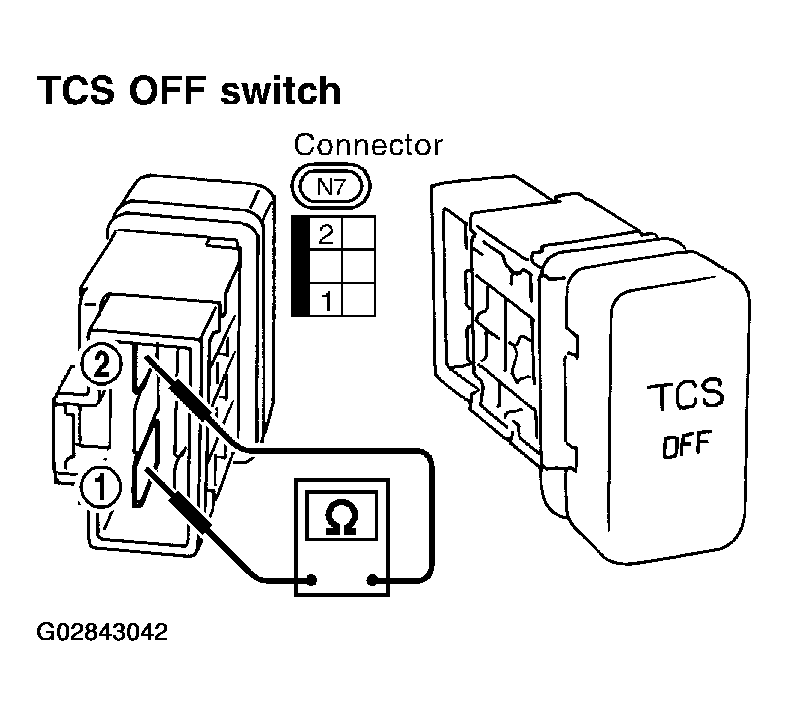

Fig 1: Checking Continuity Between TCS OFF Switch Terminals
