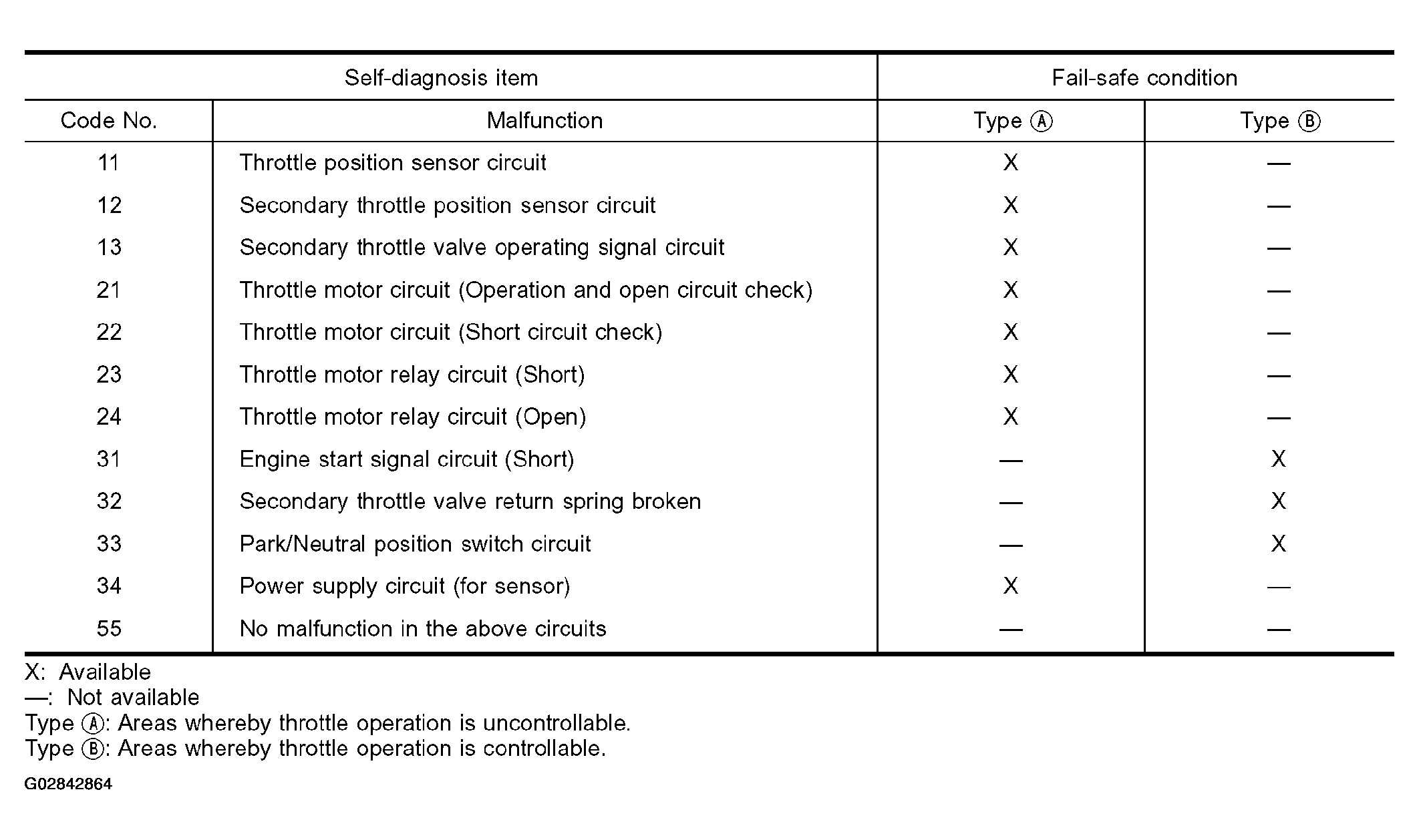

Malfunction Code/Symptom Chart
NOTE:
Even if start signal and park/neutral position switch circuits become inoperative, TCS control will function properly. Only LEDs flash indicating a malfunctioning area.

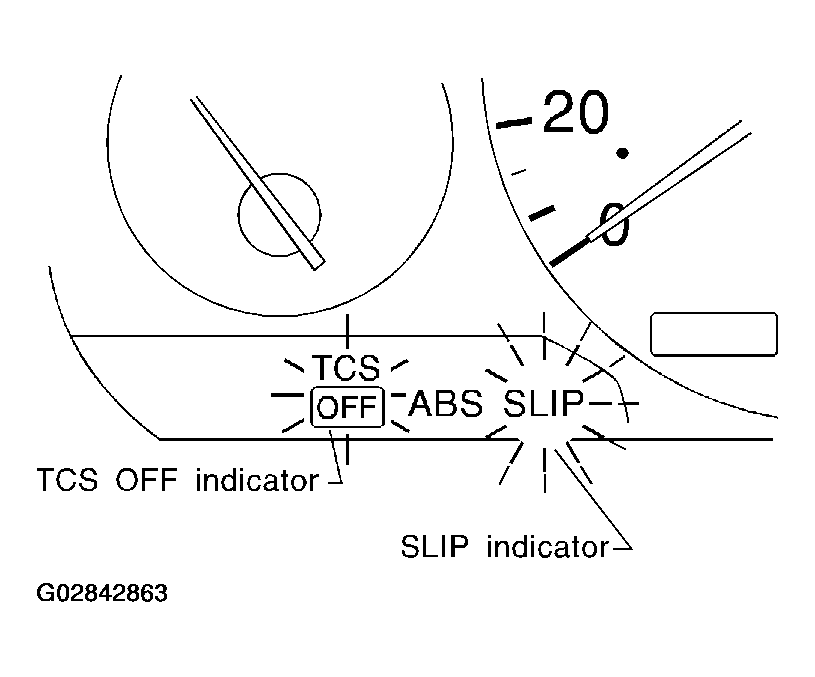

If the system becomes inoperative, the TCS function will be suspended. The fail-safe system will then activate, illuminating the SLIP indicator and TCS OFF indicator. The motor throttle valve will act as one similar to a vehicle which is not equipped with a TCS.
CAUTION:
- If the motor throttle control system becomes inoperative, only the TCS function will be suspended. The ABS function will activate properly.
- If the TCM fail-safe system activates, the self-diagnostic procedure must be performed first on the ABS/TCS control system.
