Home
>>
Infiniti
>>
2001
>>
Q45 Base
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Trouble Diagnoses with Battery/Starting/Charging System Tester
>>
Work Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Work Flow

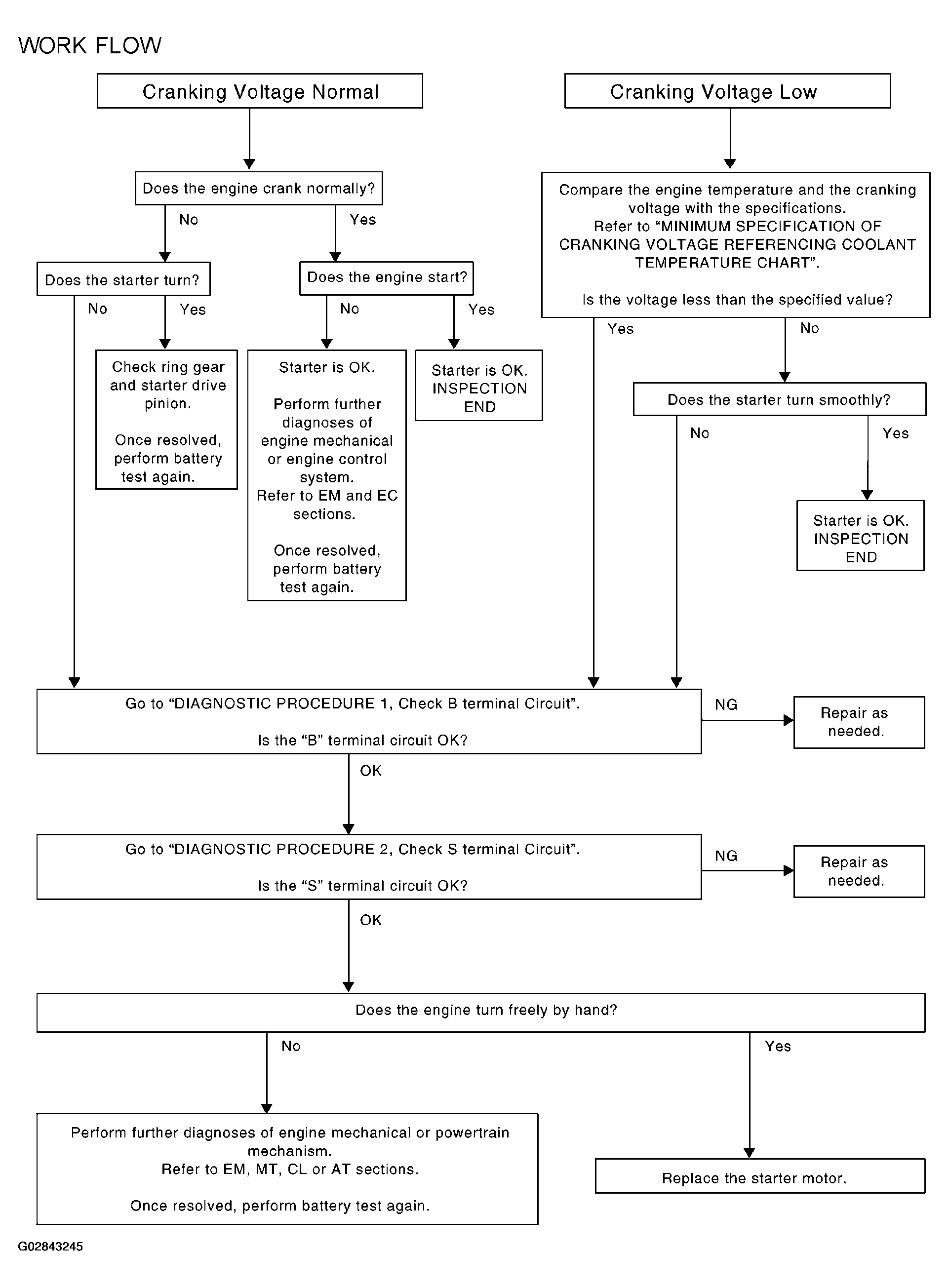

Fig 1: Battery/Starting/Charging System Work Flow Chart
