Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle.

    Turning angle of full turns:

    Refer to  Front Wheel Turning Angle   table.

    Front Wheel Turning Angle

    Wheel Turning Angle Degree Minute (Decimal Degree)
    Inside Minimum 36° 50' (36.83°)
    Nominal 39° 50' (39.83°)
    Maximum 40° 50' (40.83°)
    Outside Nominal 32° 25' (32.42°)
    Note  - On power steering models, wheel turning force (at circumference of steering wheel) of 98 to 147 N.m (22 to 33 ft. Lbs.) with engine idling.

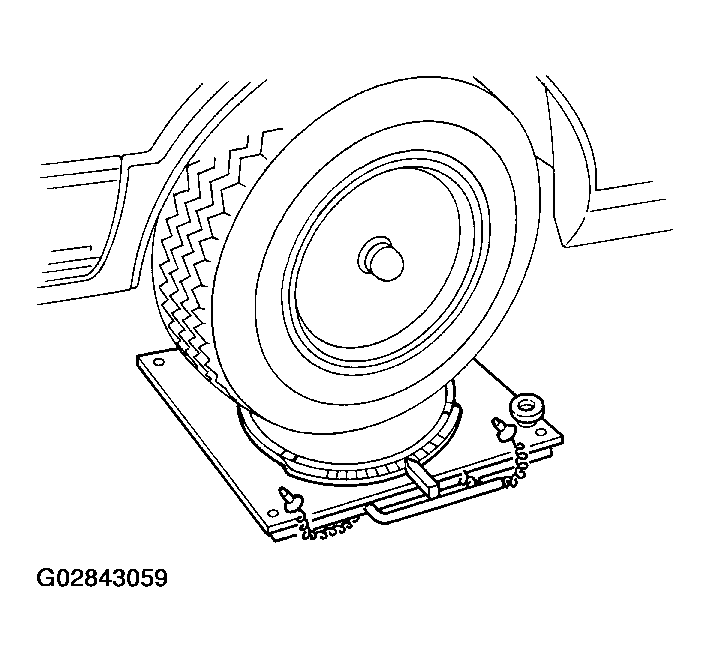

    Fig 1: Measuring Turning Angle
    G02843059
  2. If it is not within specification, check rack stroke.

    Rack stroke "S":

    Refer to  SERVICE DATA AND SPECIFICATIONS (SDS)  .

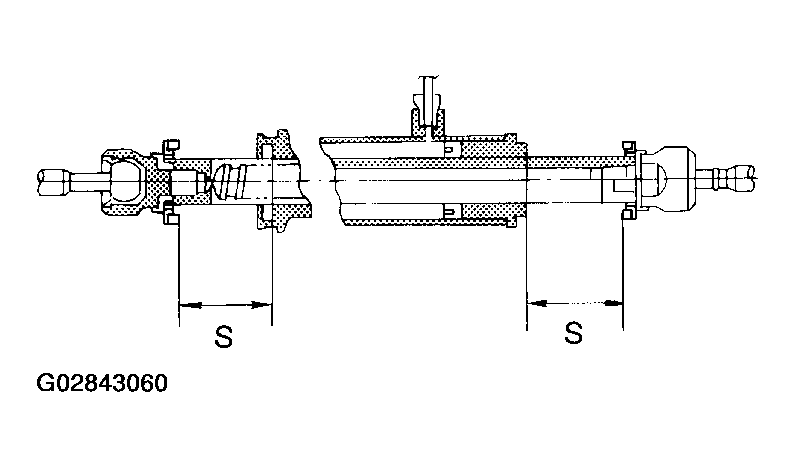

    Fig 2: Checking Rack Stroke
    G02843060
