Steering Wheel And Steering Column: Notes

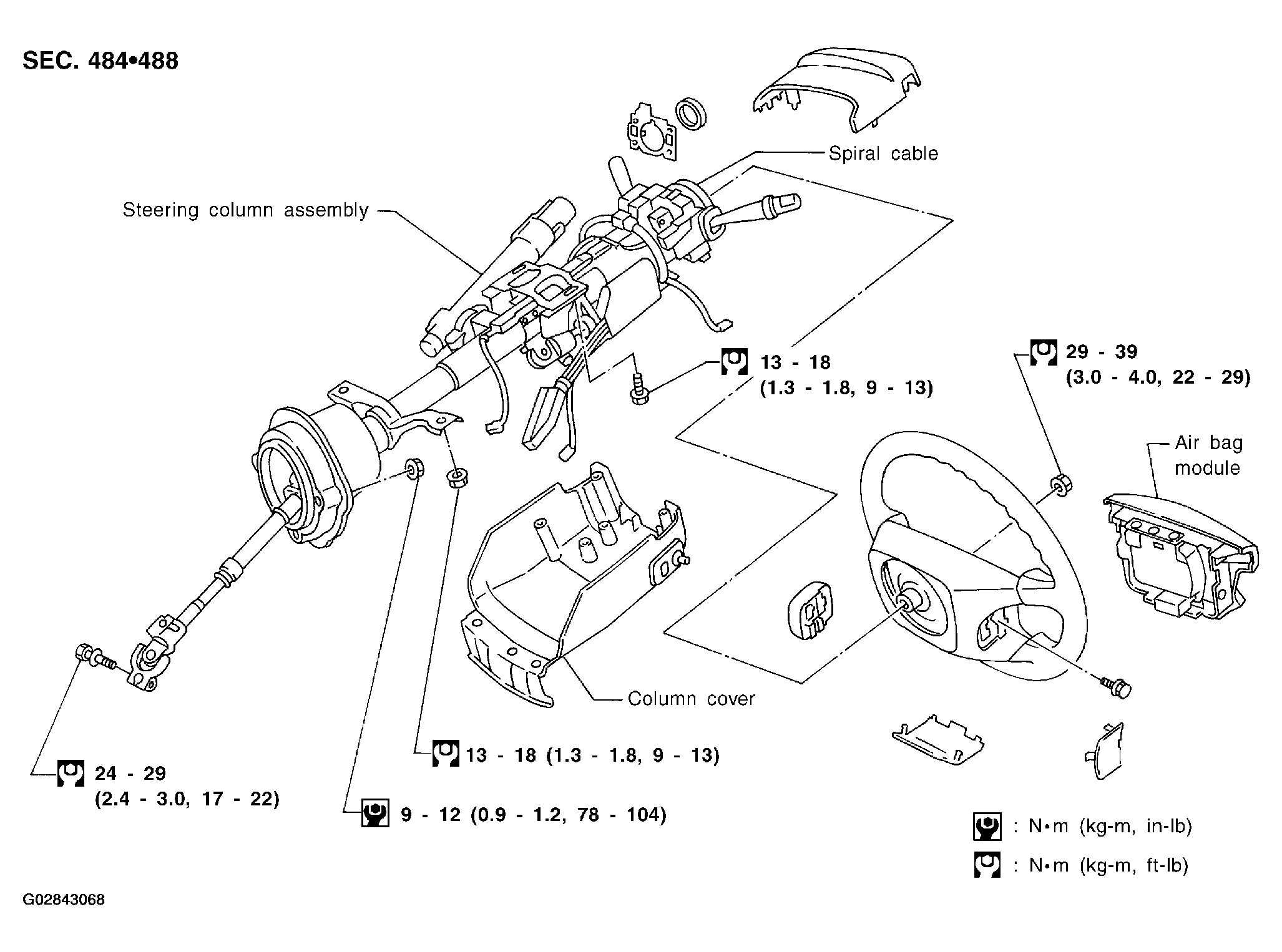

Fig 1: Exploded View Of Steering Wheel And Steering Column

G02843068
