Component Locations
COMPONENT LOCATIONS
Component
Location
Multi-Remote Control Relay
Left Side Of Engine Compartment, In Relay Box No. 1
Smart Entrance Control Unit (SECU)
To Right Of Instrument Panel Fuse Box

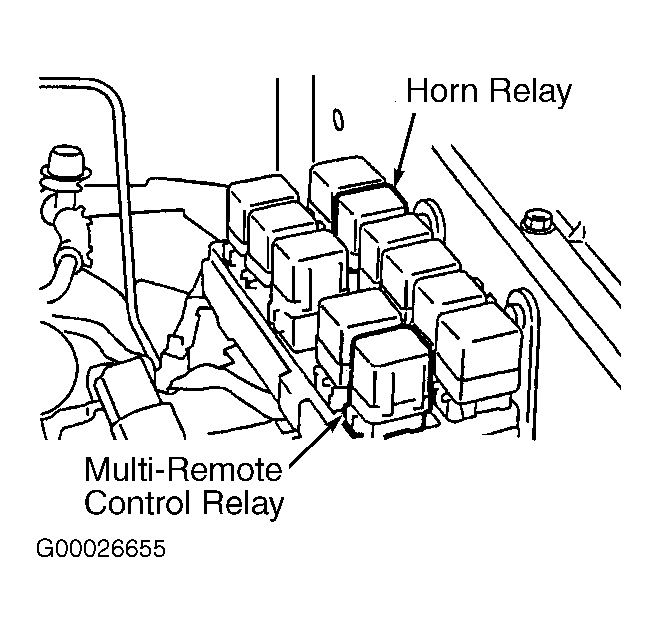

Fig 1: Locating Multi-Remote Control Relay
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating Smart Entrance Control Unit (SECU)
Courtesy of NISSAN MOTOR CO., U.S.A.
