Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Circuit Breaker | On top of fuse block (J/B). See Figure . |
| Fuse Block (J/B) | Left side of dash. See Figure . |

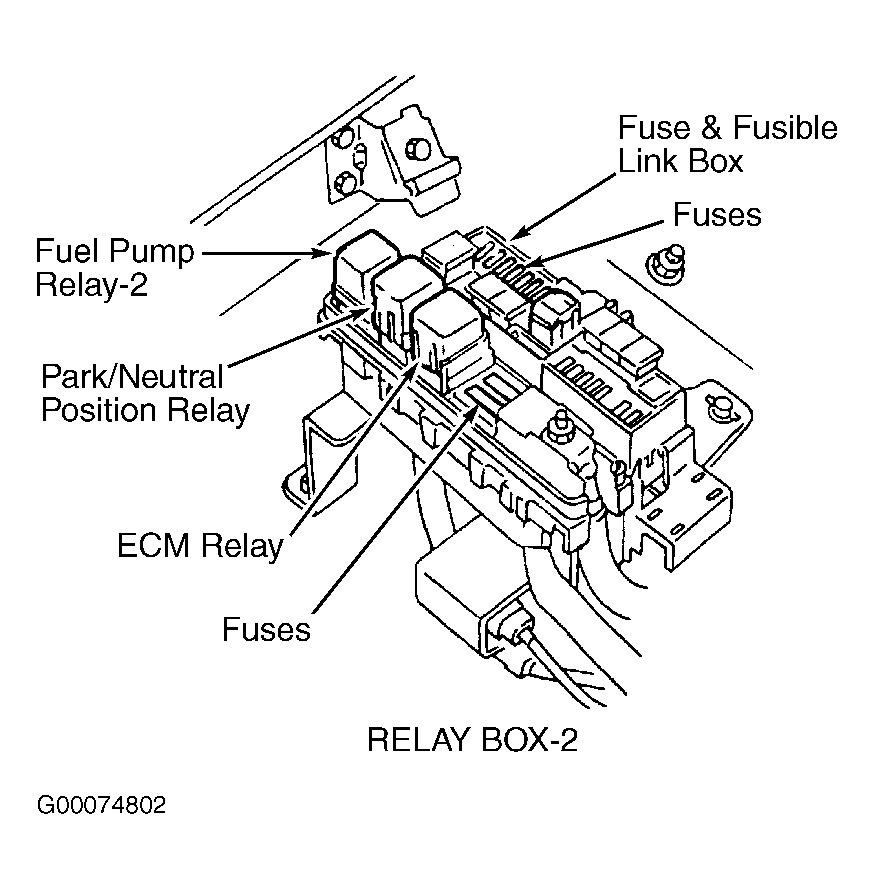

| Fuse & Fusible Link Box | In relay box-2. See Figure . |
| Relay Box-1 | On left fenderwell. See Figure . |
| Relay Box-2 | On right fenderwell. See Figure . |
