Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Component Location |
|---|---|
| B5 (White, 16 Pin) | Behind left kick panel. |
| B6 (White, 6 Pin) | Behind left kick panel. |
| B20 (White, 3 Pin) | Behind right kick panel. |
| B21 (White, 18 Pin) | In left rear door. |
| B31 (White, 18 Pin) | In right rear door. |
| B51 (White, 16 Pin) | In top of tailgate. |
| B52 (White, 6 Pin) | In top of tailgate. |
| B71 (White, 12 Pin) | Behind right taillight. |
| B75 (Brown, 2 Pin) | Behind right taillight. |
| B80 (White, 12 Pin) | Behind left taillight. |
| B81 (White, 12 Pin) | Behind left taillight. |
| B83 (White, 12 Pin) | Behind left kick panel. |
| B101 (White, 3 Pin) | Behind right kick panel. |
| B191 (White, 16 Pin) | Above headliner, near tailgate. |
| B203 (White, 12 Pin) | At right rear of luggage compartment, behind wheelwell. |
| B215 (Brown, 2 Pin) | At right rear of luggage compartment, below taillight. |
| D51 (White, 18 Pin) | In left "B" pillar. |
| D71 (White, 18 Pin) | In right "B" pillar. |
| D101 (White, 16 Pin) | Above center of headliner, near tailgate. |
| D102 (White, 16 Pin) | In top of tailgate. |

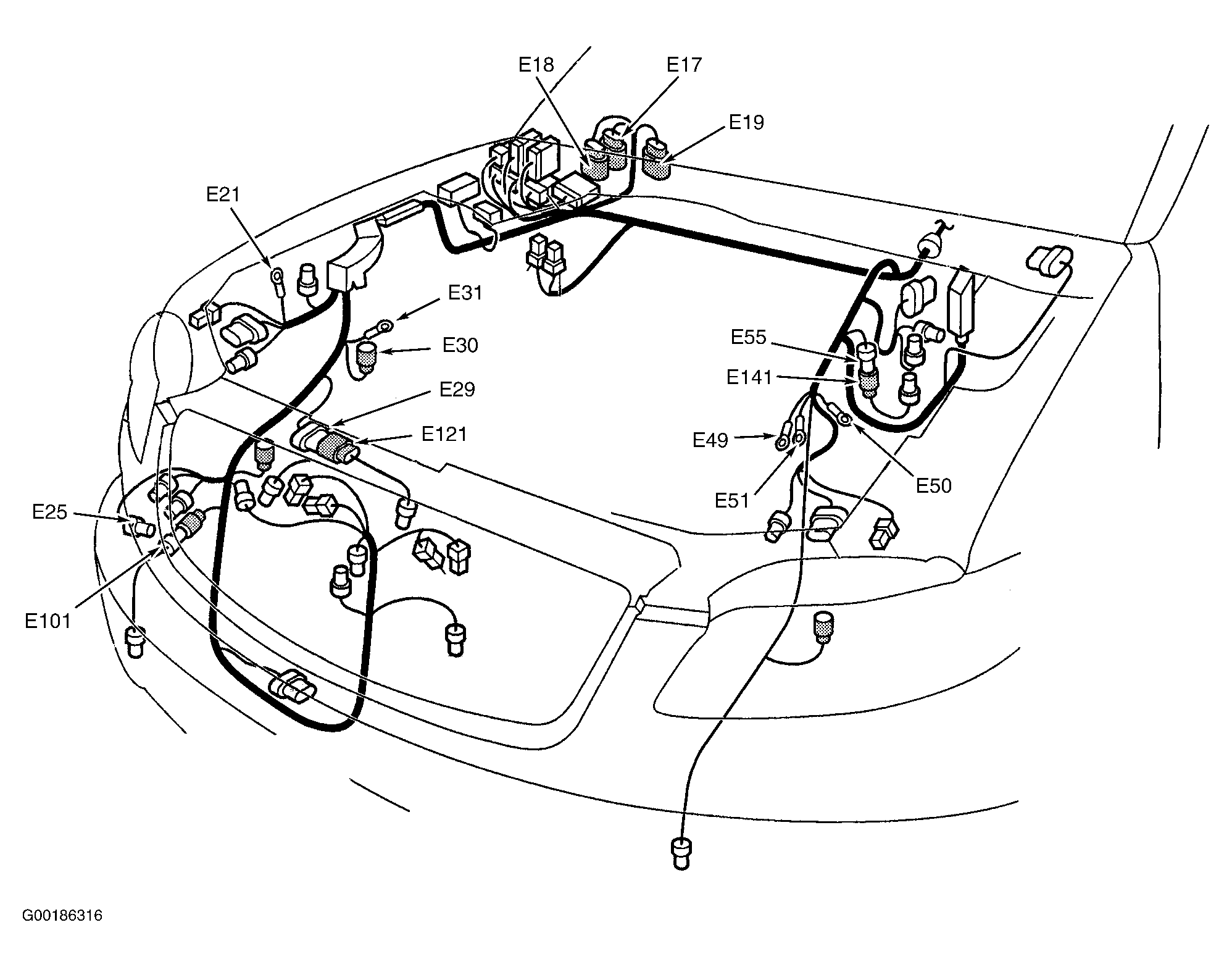

| E17 (Gray, 6 Pin) | At right rear of engine compartment, near firewall. See Figure . |
| E18 (Gray, 9 Pin) | At right rear of engine compartment, near firewall. See Figure . |
| E19 (Black, 8 Pin) | At right rear of engine compartment, near firewall. See Figure . |
| E25 (Black, 2 Pin) | Behind right side of front bumper, below headlight. See Figure . |
| E29 (Black, 8 Pin) | At front of engine compartment, near hood latch assembly. See Figure . |
| E30 (Gray, 1 Pin) | At right front of engine compartment. See Figure . |
| E55 (Brown, 3 Pin) | At left side of engine compartment. See Figure . |
| E101 (Brown, 2 Pin) | At right front of engine compartment, below headlight. See Figure . |
| E121 (Dark Green, 8 Pin) | At front of engine compartment, near hood latch assembly. See Figure . |
| E141 (Brown, 3 Pin) | At left side of engine compartment. See Figure . |
| E205 (White, 16 Pin) | Behind left end of dash. |
| E206 (White, 6 Pin) | Behind left end of dash. |
| E212 (Yellow, 4 Pin) | Behind left side of dash, near steering column. |
| E214 (White, 6 Pin) | Behind left side of dash, right of steering column. |
| E251 (White, 6 Pin) | Behind left side of dash, right of steering column. |
| E303 (Gray, 1 Pin) | At right side of engine compartment. |
| E306 (Gray, 6 Pin) | At right side of engine compartment, near firewall. |
| F10 (Black, 6 Pin) | At left side of engine compartment. |
| F20 (Black, 2 Pin) | At right rear of engine compartment. |
| F21 (Dark Green/Yellow, 6 Pin) | At left rear of engine compartment. |
| F24 (Black, 2 Pin) | At left rear of engine compartment. |
| F40 (Black, 4 Pin) | At center of engine compartment. |
| F41 (Dark Green/Yellow, 6 Pin) | At right center of engine compartment. |
| F46 (Gray, 6 Pin) | At right rear of engine compartment. |
| F47 (Gray, 6 Pin) | At right rear of engine compartment. |
| F48 (Gray, 9 Pin) | In engine compartment, on right side of firewall. |
| F49 (Black, 8 Pin) | In engine compartment, on right side of firewall. |
| F50 (Gray, 8 Pin) | At center of engine compartment. |
| F201 (Green, 6 Pin) | At left rear of engine compartment. |
| F211 (Blue, 6 Pin) | At right front of engine compartment. |
| F221 (Green, 6 Pin) | At right center of engine compartment. |
| F241 (Black, 4 Pin) | At right rear of engine compartment. |
| F251 (Gray, 8 Pin) | At center of engine compartment. |
| F252 (Light Blue, 2 Pin) | At right rear of engine compartment. |
| F261 (Light Blue, 2 Pin) | At left rear of engine compartment. |
| M31 (White, 10 Pin) | In left "A" pillar. |
| M42 (Yellow, 4 Pin) | Behind left side of dash. |
| M83 (White, 4 Pin) | Behind right end of dash. |
| M93 (White, 12 Pin) | Behind left end of dash. |
| M151 (White, 4 Pin) | Behind right end of dash. |
| R1 (White, 10 Pin) | At base of left "A" pillar. |
| R51 (White, 8 Pin) | Above headliner, forward of sunroof. |
