Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Component Location

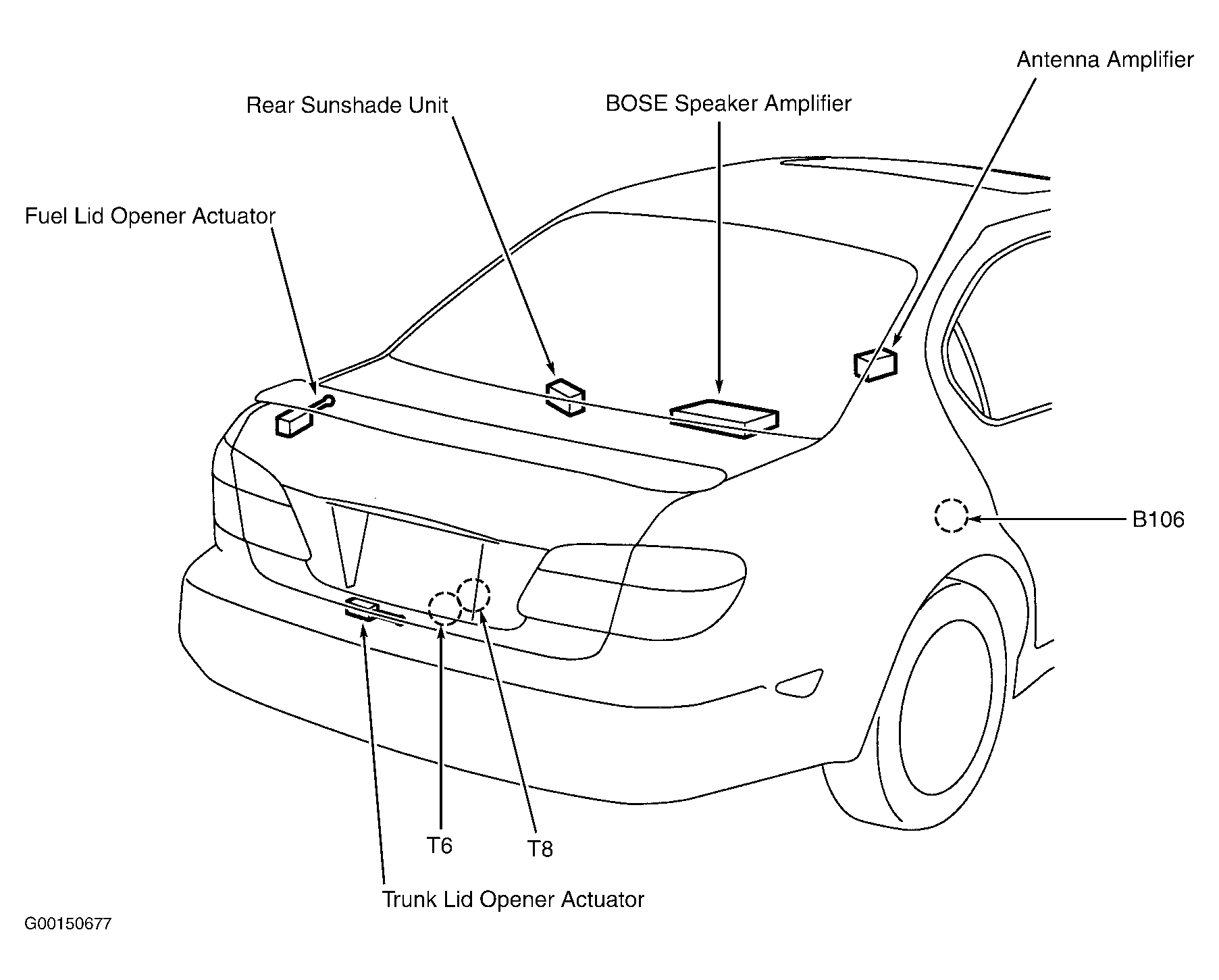

Antenna Amplifier At right "C" pillar. See Figure .
BOSE Speaker Amplifier Under rear parcel shelf. See Figure .
Condenser Near top front of engine.
Condenser (Rear Window Defogger) At left "C" pillar.
Data Link Connector Lower left side of dash.

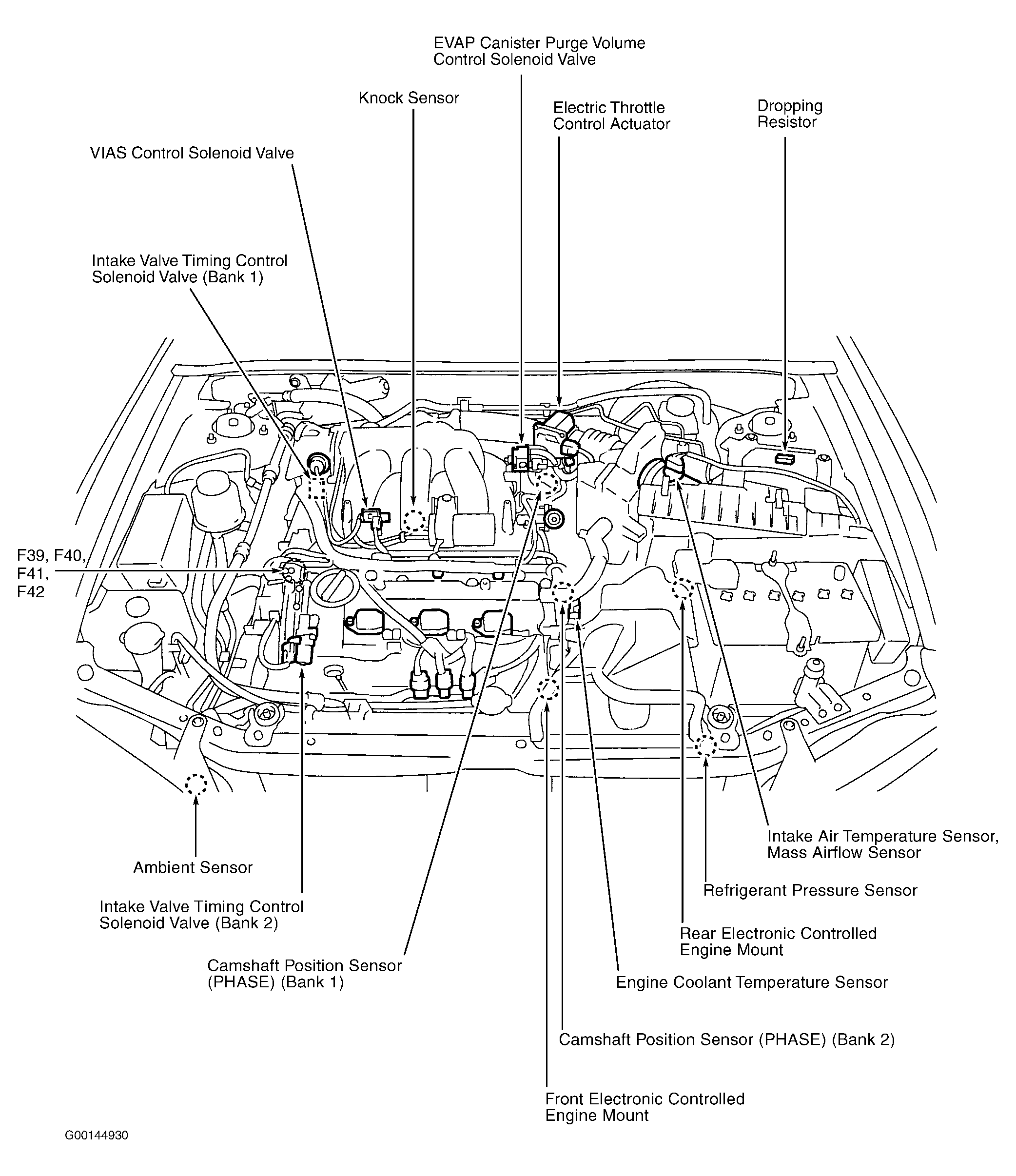

Dropping Resistor At left rear side of engine compartment, near air cleaner box. See Figure .

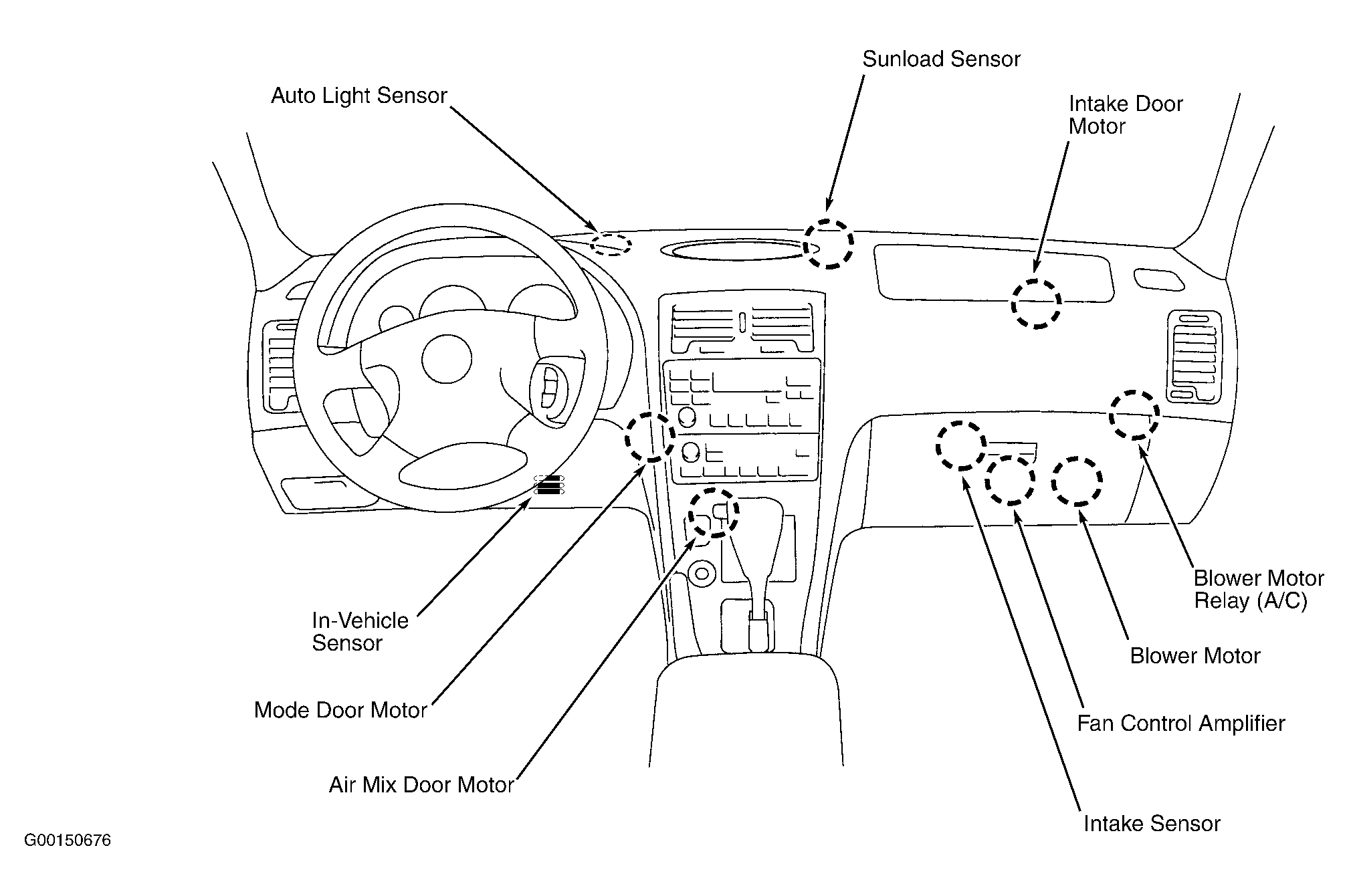

Fan Control Amplifier Behind right side of dash, on blower & cooling unit. See Figure .
Front Electronic Controlled Engine Mount On lower left rear of engine. See Figure .
Rear Electronic Controlled Engine Mount On lower right rear of engine. See Figure .

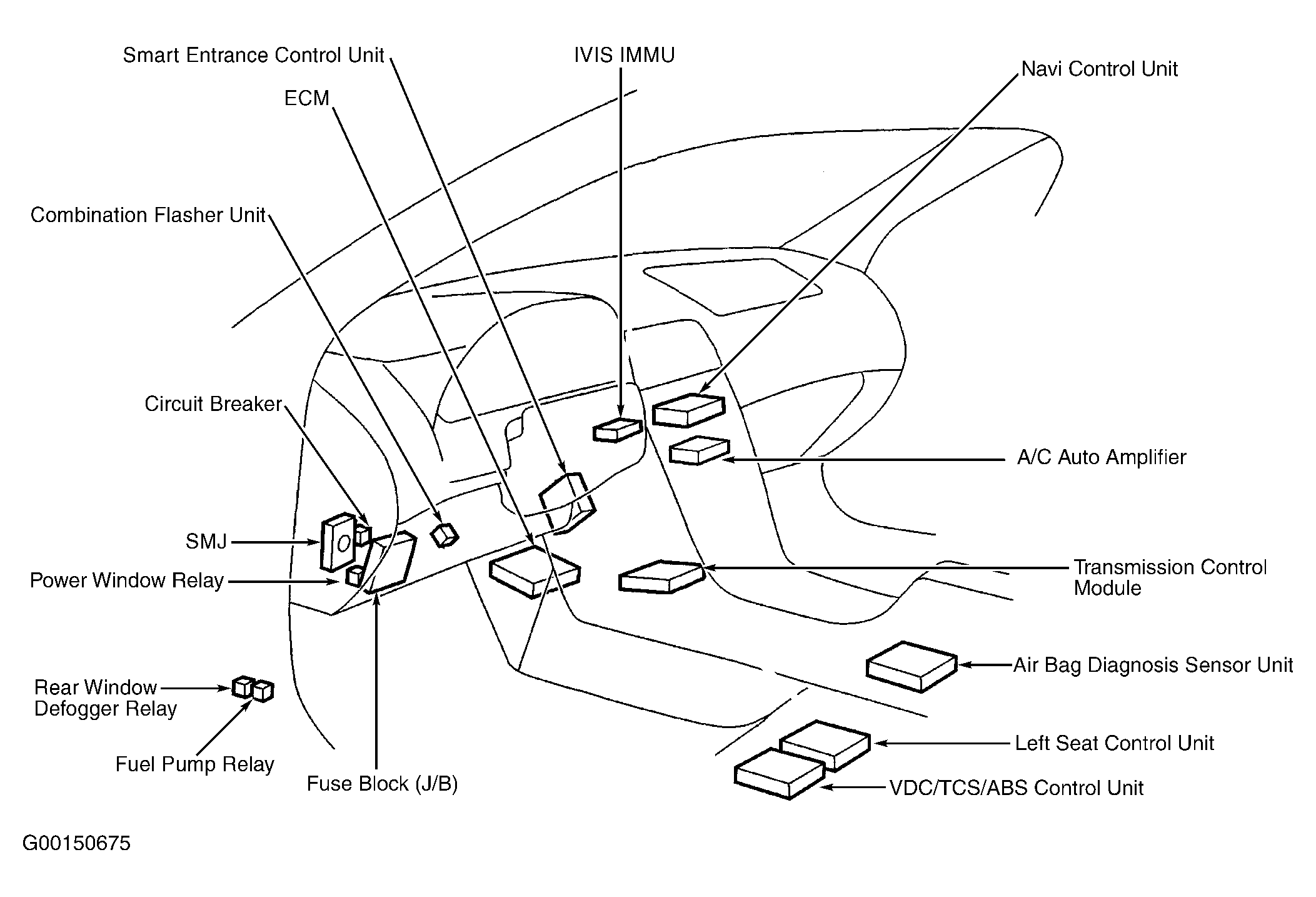

SMJ Behind left side of dash. See Figure .

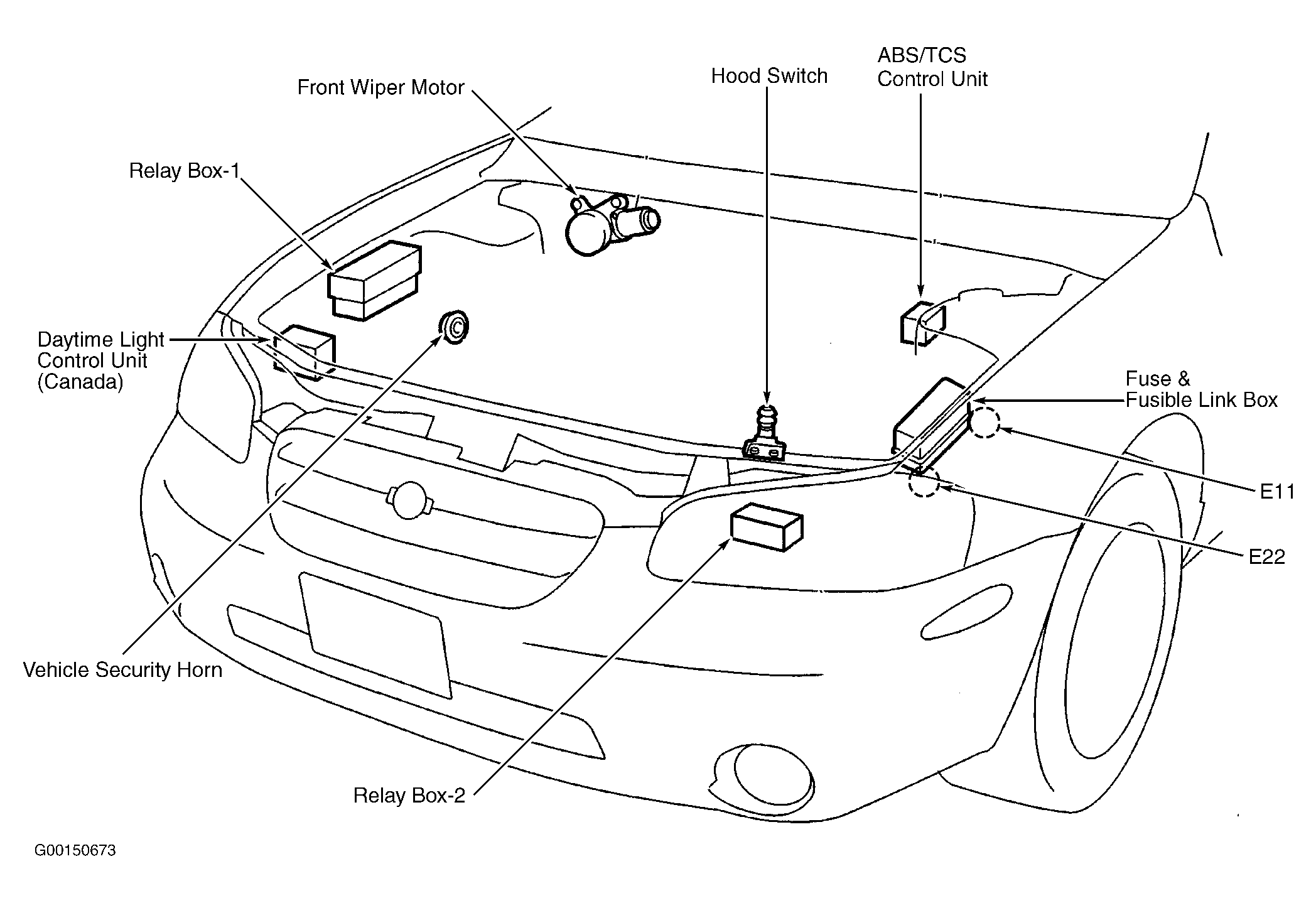

Vehicle Security Horn At right side of engine compartment. See Figure .
