Removal and Installation: Installation

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

When installing transmission to the engine, attach the fixing bolts in accordance with the following standard.

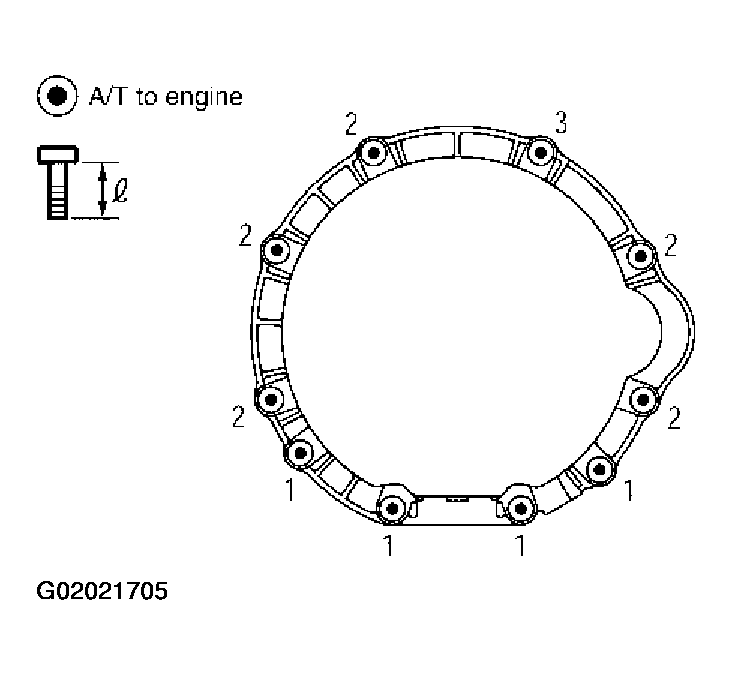

Fig 1: Transmission Assembly Installation Procedure (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

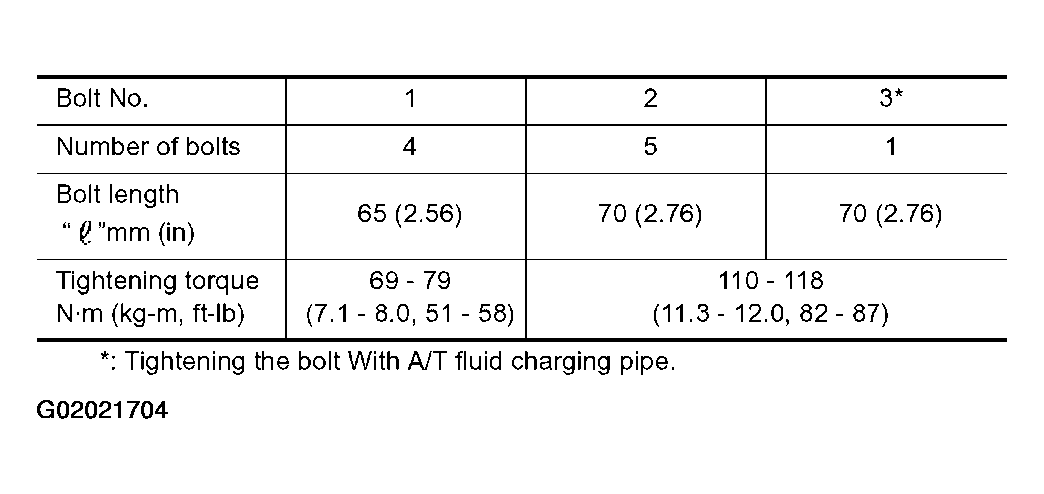

Fig 2: Transmission Assembly Installation Procedure (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then, tighten the bolts with the specified torque.
1. 44 - 58 N.m (4.5 - 5.9 kg-m, 33 - 42 ft-lb)

CAUTION:

When turning crankshaft, turn it clockwise as viewed from the front of the engine.
When tightening the tightening bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.

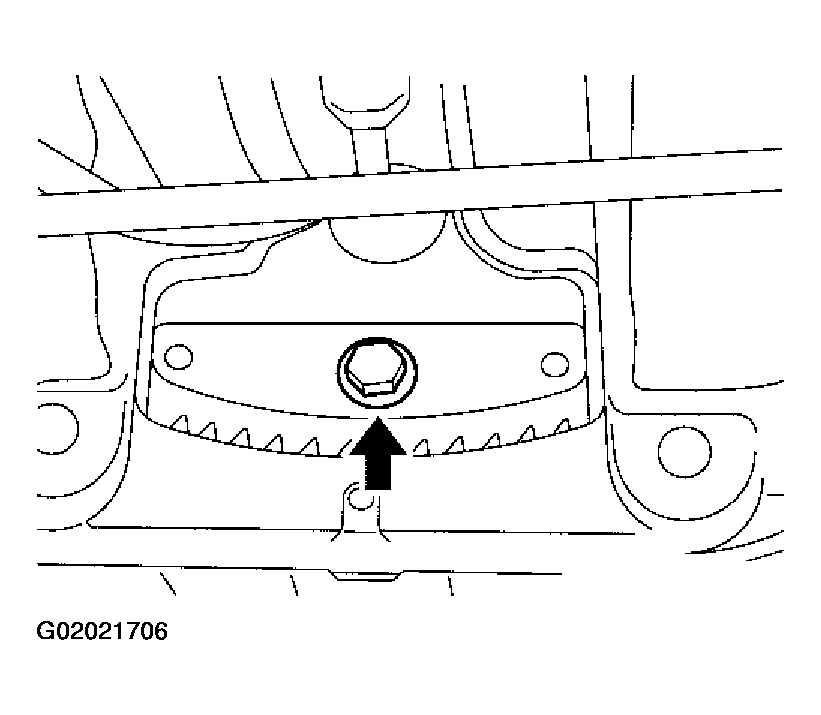

Fig 3: Transmission Assembly Installation Procedure (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.
Install crankshaft position sensor (POS). Refer to REMOVAL & INSTALLATION (FX45, M45 & Q45) .
After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to "CHECKING A/T FLUID ", "Adjustment of A/T Position ", "Checking of A/T Position ".
When replacing the A/T assembly, erase EEP ROM in TCM. Refer to "PRECAUTIONS FOR A/T ASSEMBLY REPLACEMENT ".
