Removal And Installation

CAUTION:

Accelerator wire should be adjusted when removing and replacing any parts of accelerator control system, shown Fig 1.
Check that throttle valve opens fully when accelerator pedal is fully depressed. Also check that it returns to idle position when pedal is released.
Check accelerator control parts for improper contact with any adjacent parts.
When connecting accelerator wire, be careful not to twist or scratch its inner wire.
Refer to ASCD WIRE ADJUSTMENT ,

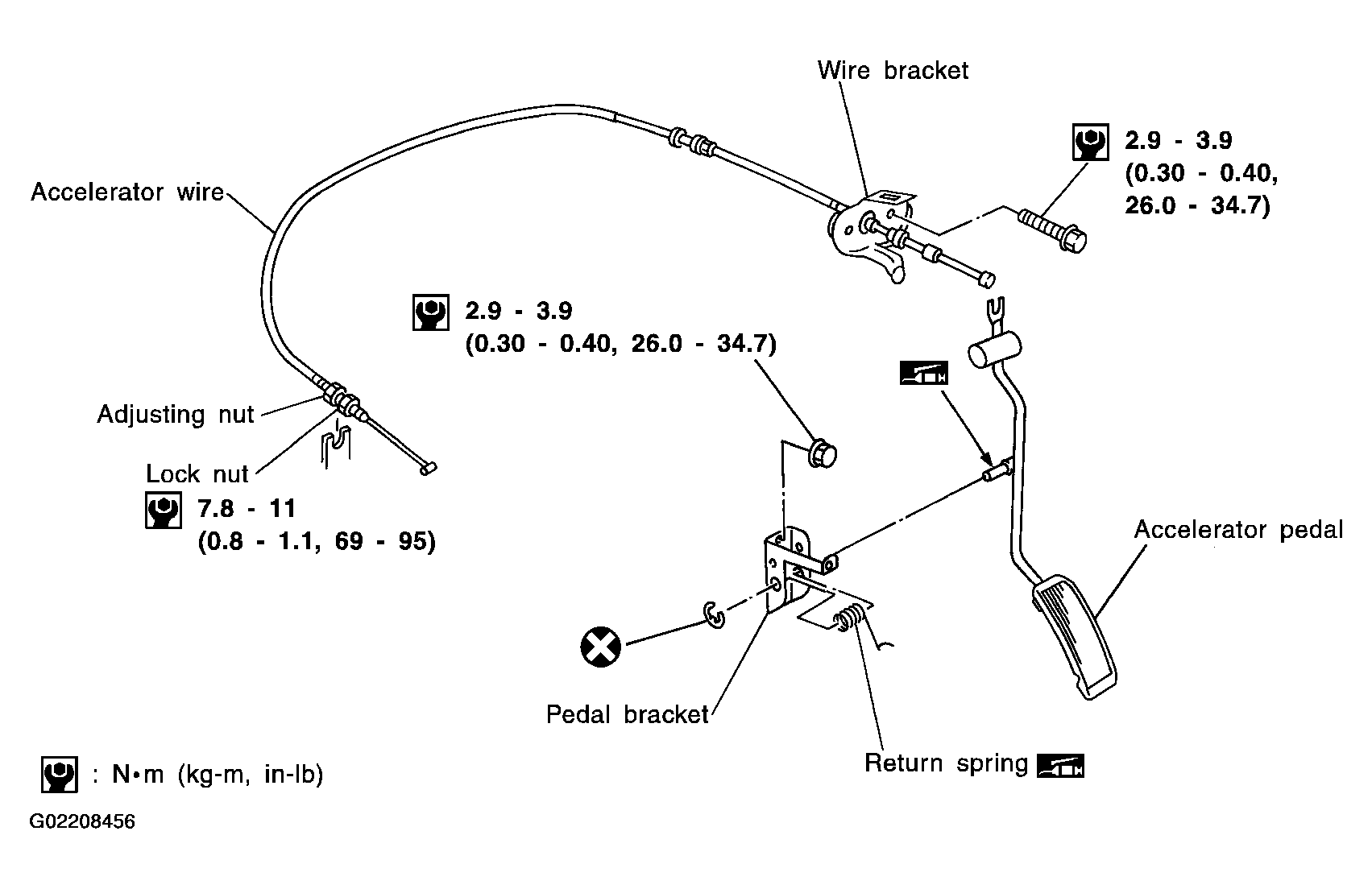

Fig 1: Accelerator Control System Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
