Front Drive Shaft And Drive Chain

Install front drive shaft front bearing, using drifts.
1. Tool number : ST33200000 (J26082)

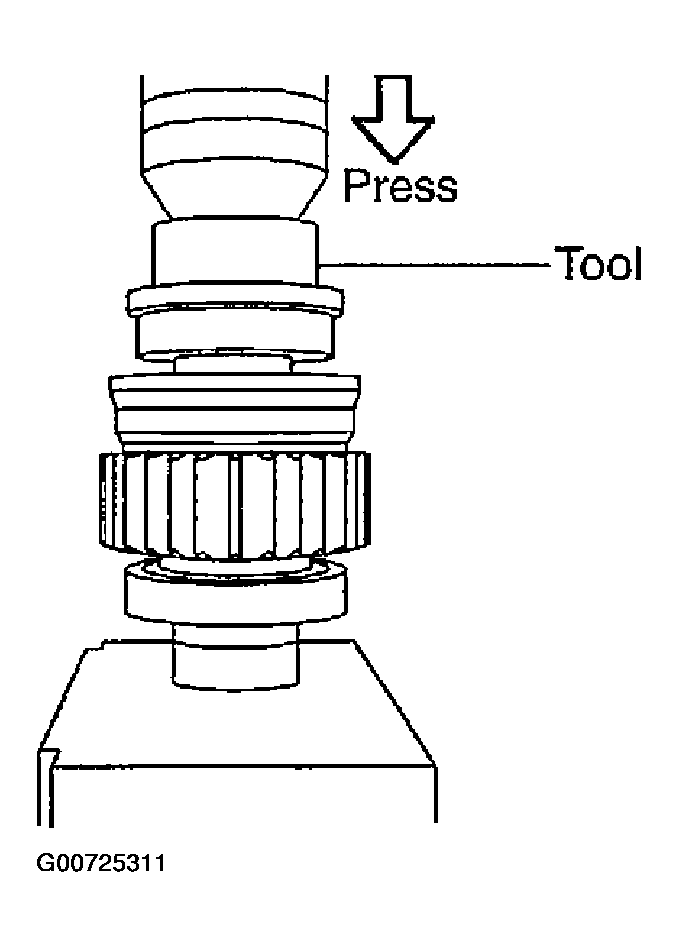

  Fig 1: Installing Front Drive Shaft Front Bearing,
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install front drive shaft rear bearing, using a drift.
1. Tool number : KV38104010 ( - )

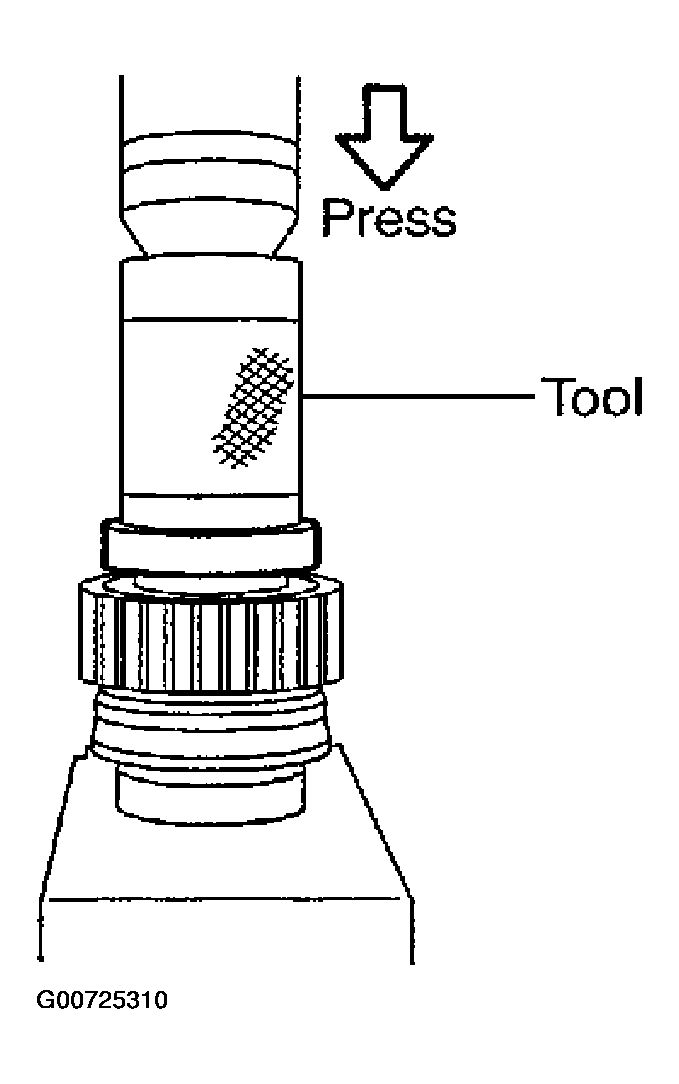

  Fig 2: Installing Front Drive Shaft Rear Bearing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive chain to front drive shaft.
CAUTION: Identification mark of drive chain should be in the side of front bearing of front drive shaft.

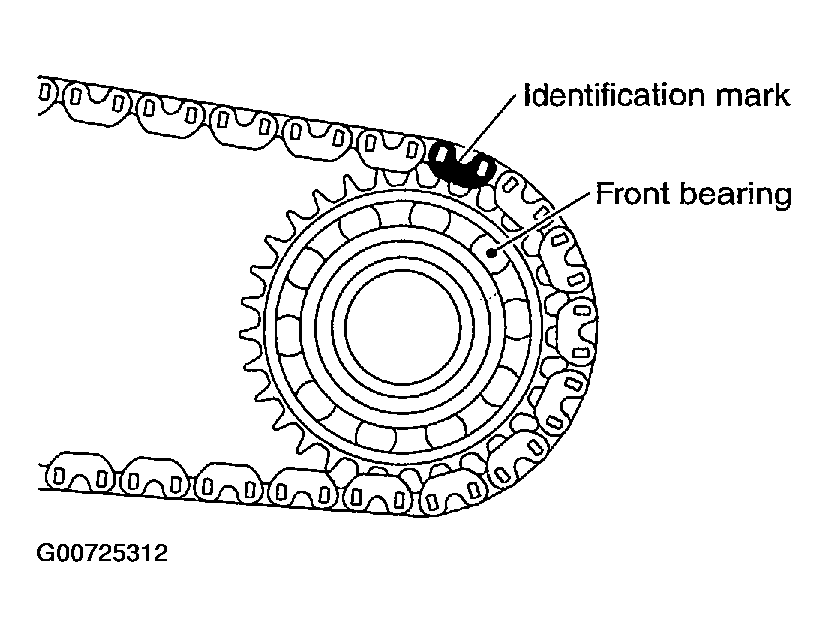

Fig 3: Installing Drive Chain
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive chain to mainshaft, and then install tap front drive shaft with plastic hammer. Press-fit rear bearing of front drive shaft to rear case.
CAUTION: Be careful not to tap drive chain.

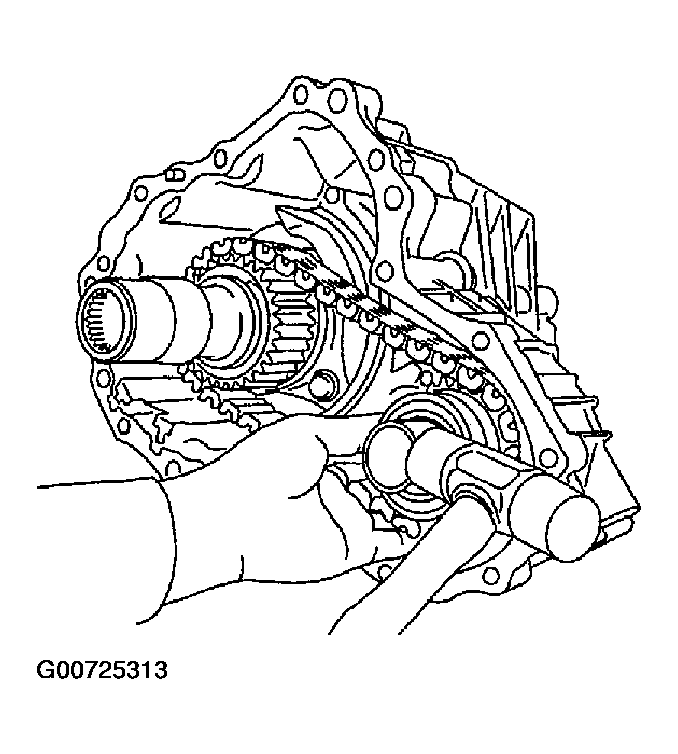

Fig 4: Installing Drive Chain & Front Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front case to rear case. Refer to FRONT CASE AND REAR CASE .
