Sensor Rotor: Installation

Install the sensor rotor. For front sensor rotor, use hammer and wooden block. For rear sensor rotor, use suitable drift and press.

• Always replace sensor rotor with new one.

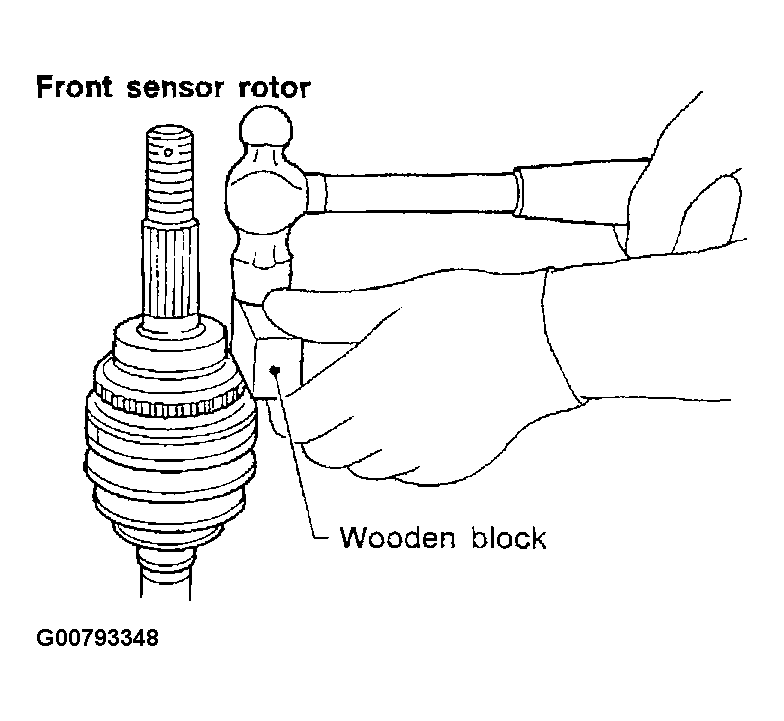

  Fig 1: Installing Front Sensor Rotor Using Hammer & Wooden Block

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Pay attention to the dimension of rear sensor rotor as shown in Fig 2.

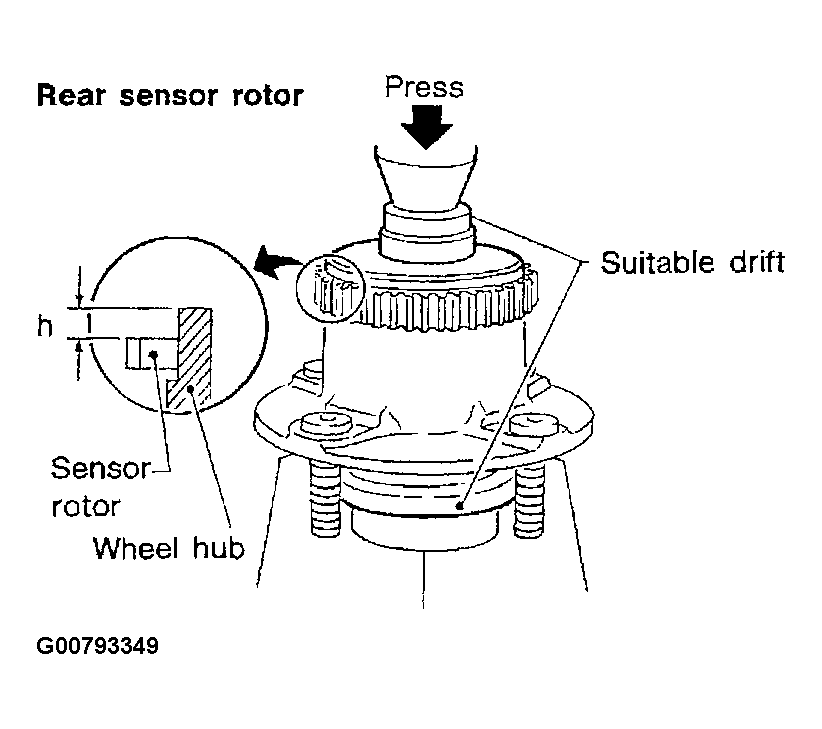

  Fig 2: Identifying Rear Sensor Rotor Dimensions

  Courtesy of NISSAN MOTOR CO., U.S.A.

  h: 12.5 - 13.5 mm (0.492 - 0.531 in)
