Case 2

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

Check ABS/TCS control unit circuit. Refer to "ABS/TCS CONTROL UNIT CIRCUIT CHECK ".

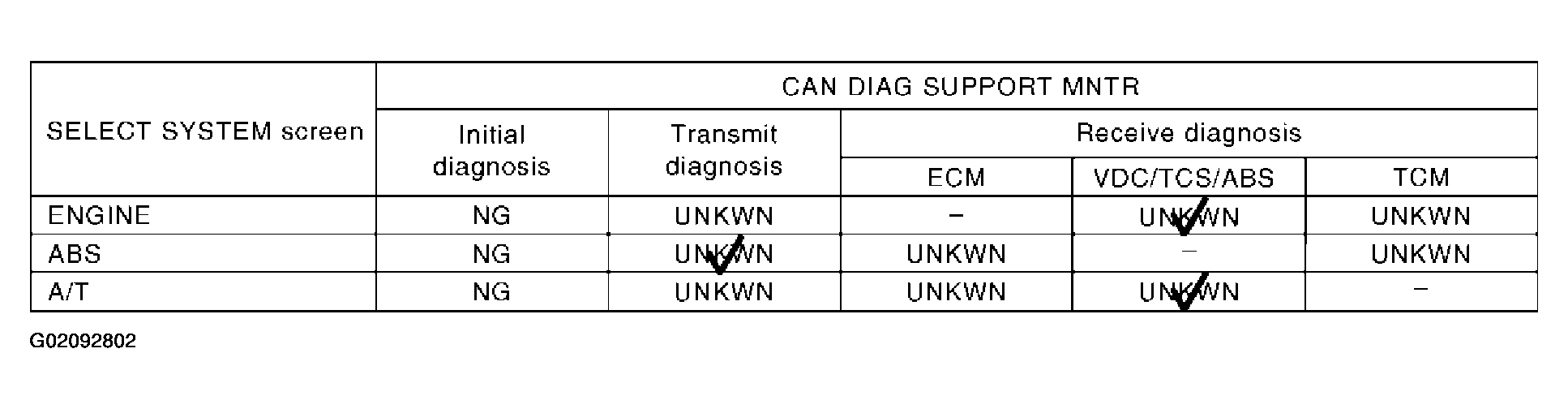

Fig 1: Check Sheet Results Example - Case 2 For TCS Models (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

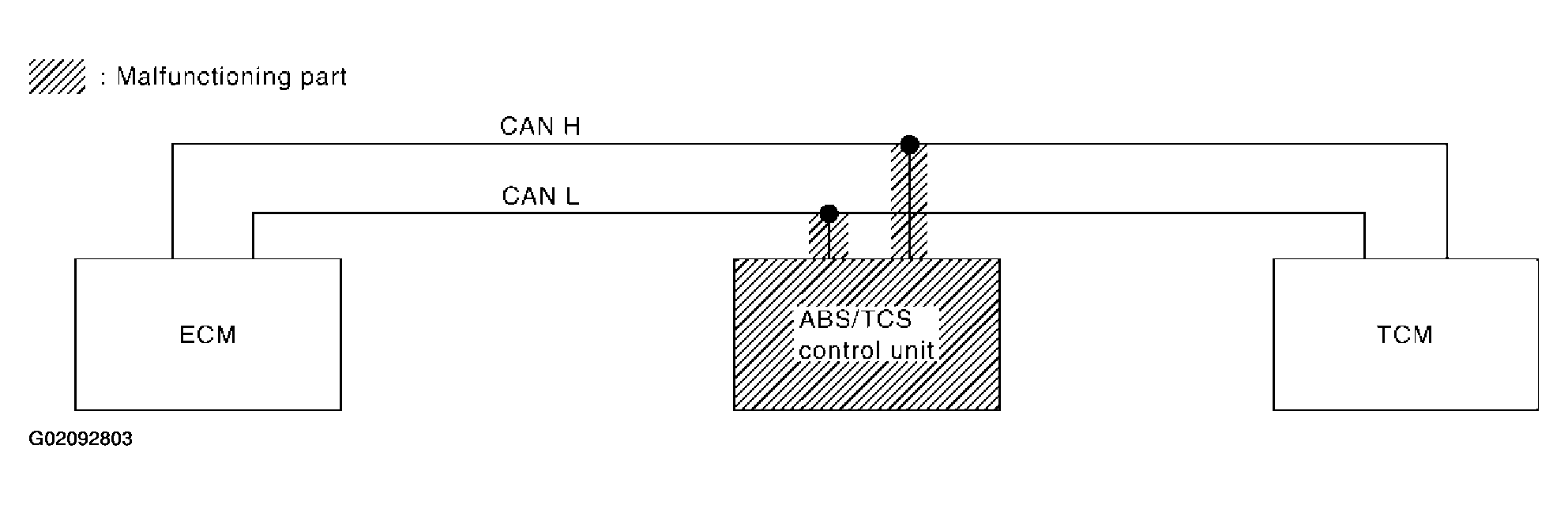

Fig 2: Check Sheet Results Example - Case 2 For TCS Models (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
