Control Valve Lower Body: Assembly

• Install control valves.

  For installation procedures, Refer to "ASSEMBLY " .

Fig 1: Installing Control Valves

Courtesy of NISSAN MOTOR CO., U.S.A.

Retainer Plate (Lower body)

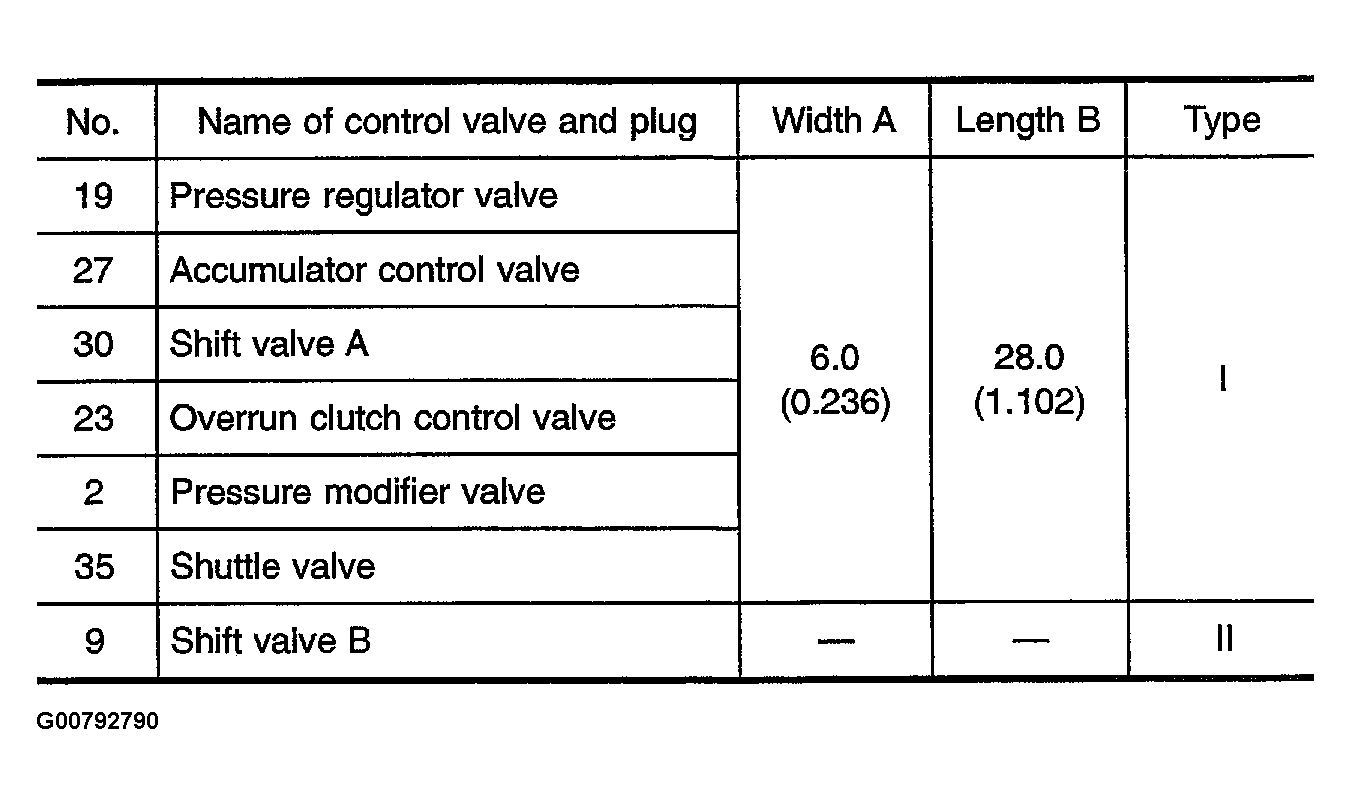

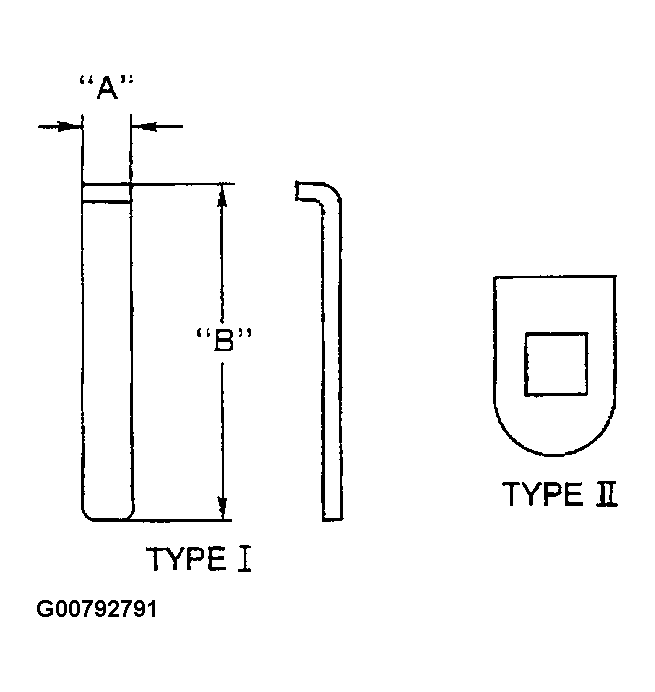

Fig 2: Retainer Plate (Lower Body) Length And Width Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

• Install proper retainer plates.

Refer to "CONTROL VALVE LOWER BODY " .

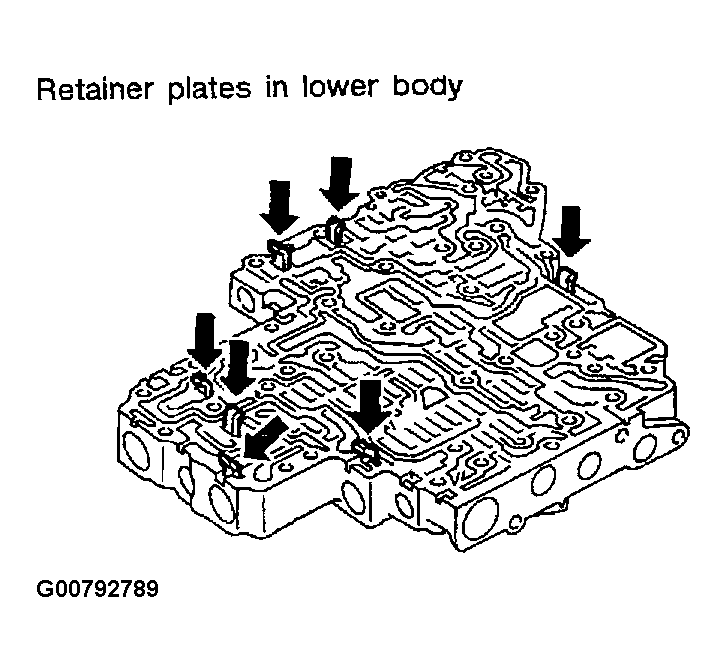

Fig 3: Locating Retainer Plate (Lower Body) Length

Courtesy of NISSAN MOTOR CO., U.S.A.
