Control Valve Lower Body: Inspection

Valve Springs

• Check each valve spring for damage or deformation. Also measure free length and outer diameter.
  1. Inspection standard: Refer to SDS,  LINE PRESSURE  .
• Replace valve springs if deformed or fatigued.

Control Valves

• Check sliding surfaces of control valves, sleeves and plugs for damage.

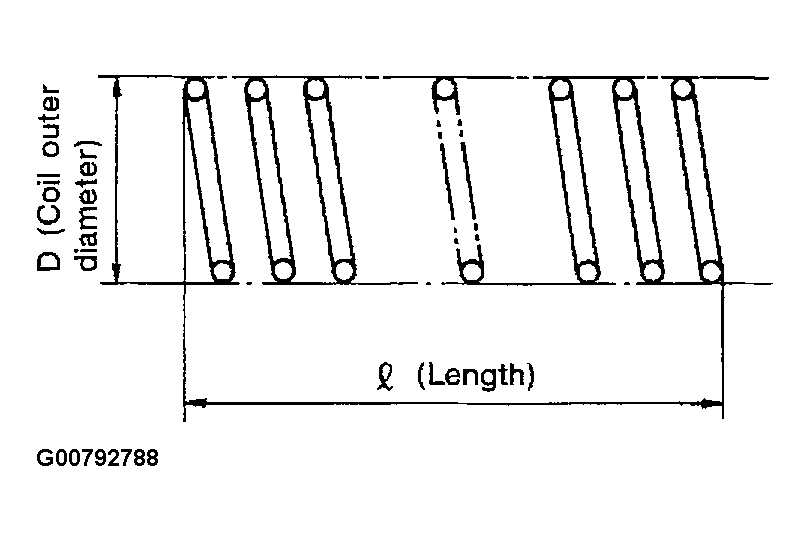

  Fig 1: Measuring Valve Springs Free Length And Outer Diameter

  Courtesy of NISSAN MOTOR CO., U.S.A.
