2. Check RGB Synchronizing Signal

1. Connect AV control unit connector and display connector.
2. Turn ignition switch ON.
3. Check voltage signal between AV control unit harness connector M78 terminals 15 (L/R) and 10.

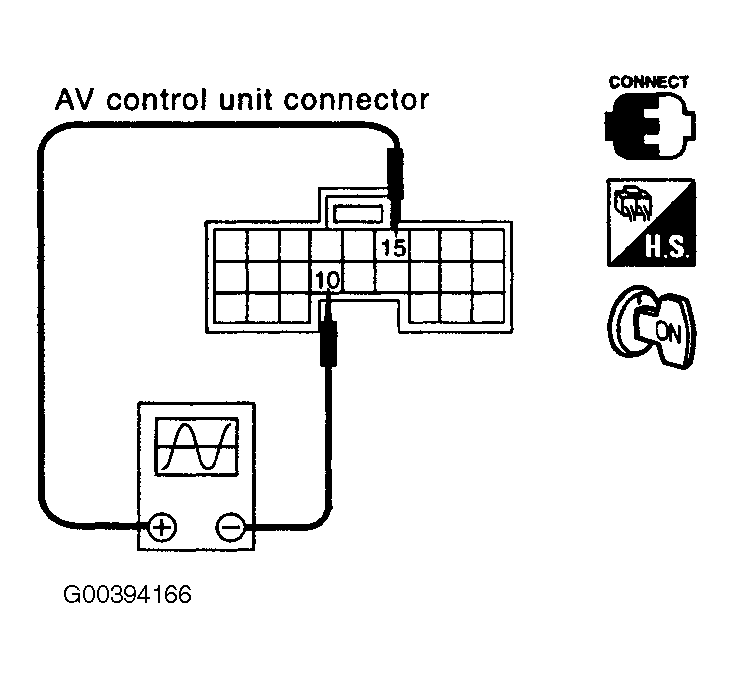

   Fig 1: Checking RGB Synchronizing Signal

   Courtesy of NISSAN MOTOR CO., U.S.A.

   15 (L/R) - 10: Refer to TERMINALS AND REFERENCE VALUE FOR AV CONTROL UNIT  .

OK or NG

1. OK: Replace display.
2. NG: Replace AV control unit.
