Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | At left rear of engine compartment. See Figure . |
| A/T Device (M203) | At base of shifter assembly. See Figure . |

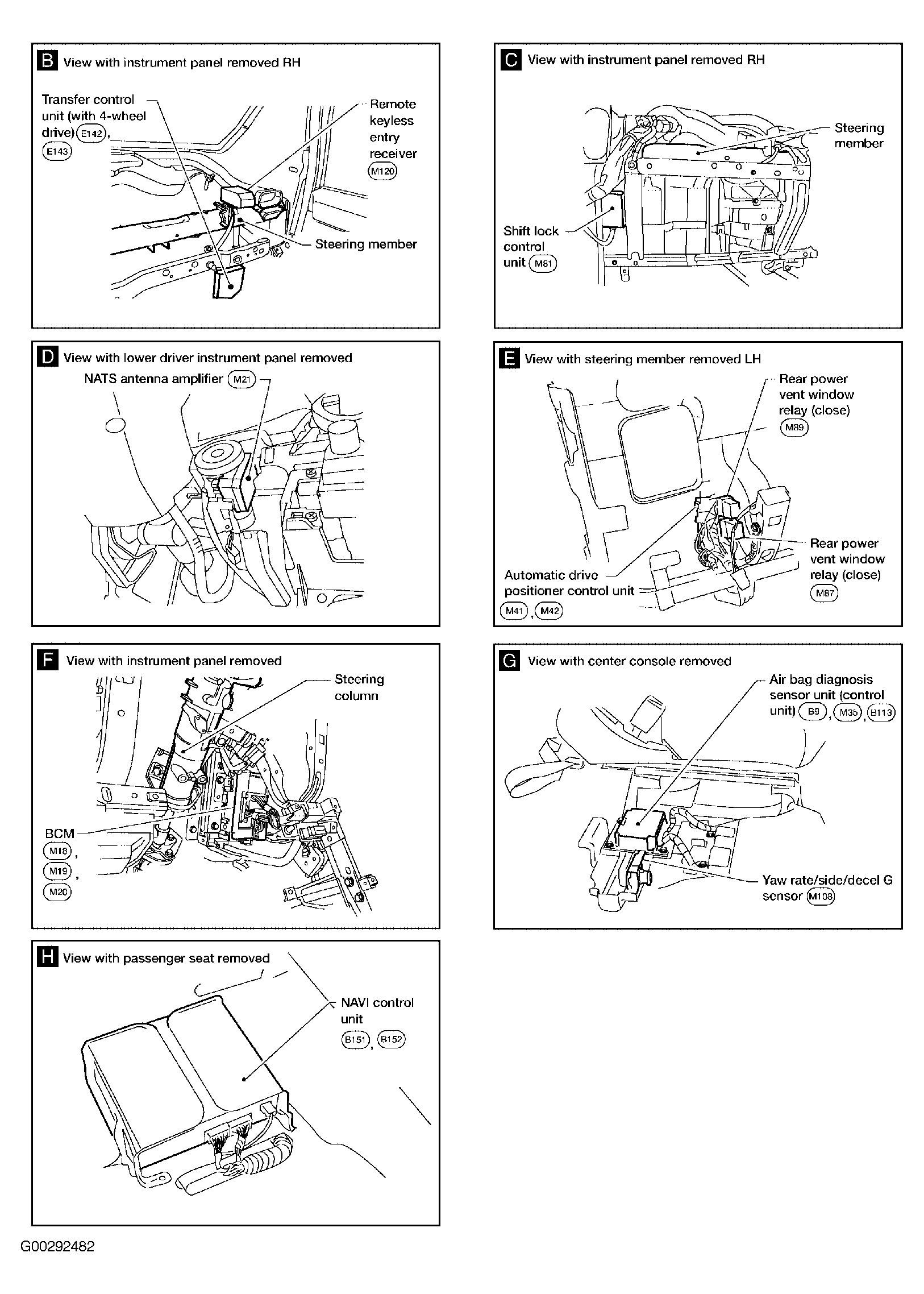

| Automatic Drive Positioner Control Unit | Under left side of dash. See Figure . |

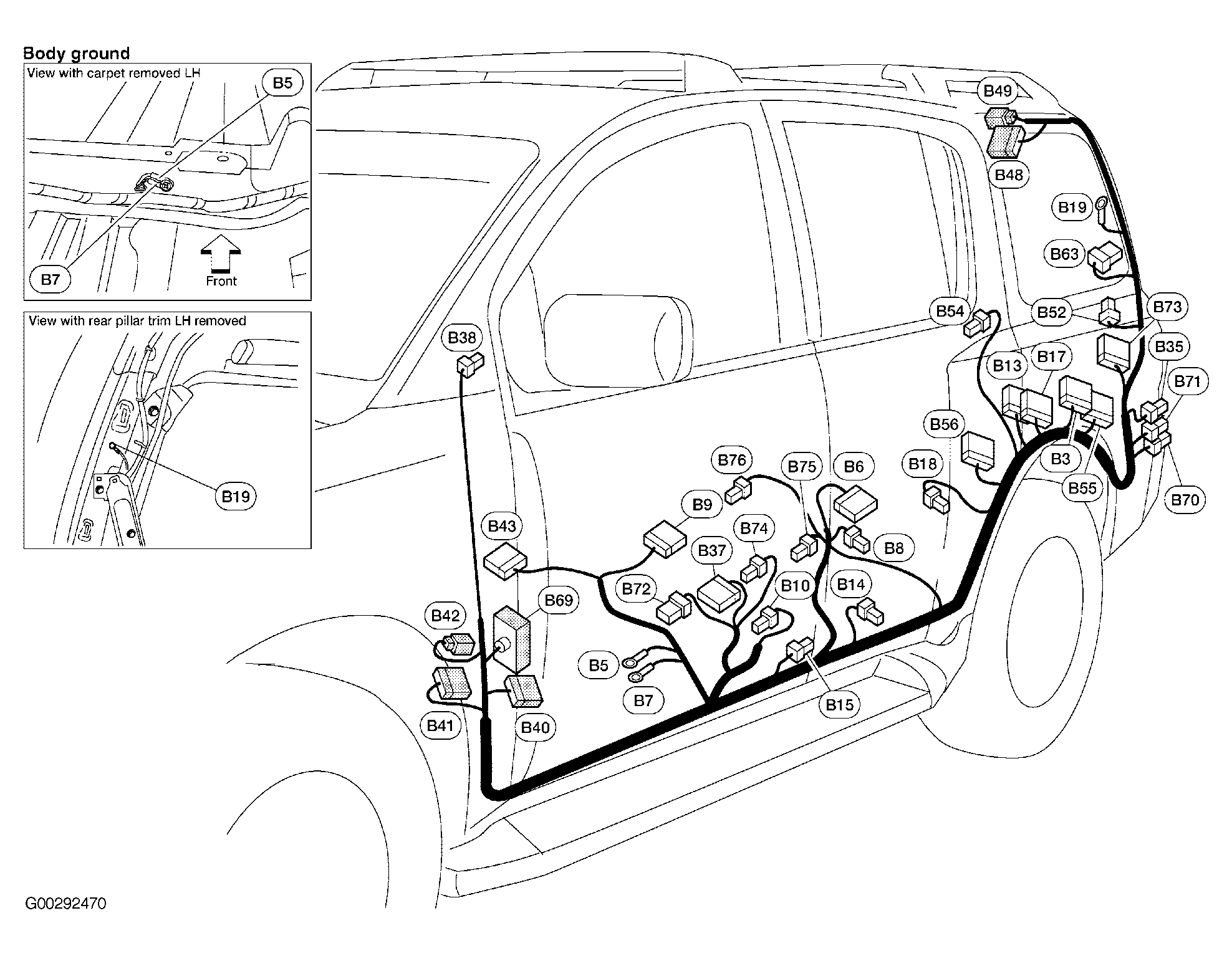

| Back Door Control Unit (B55) | Behind left rear quarterpanel. See Figure . |
| BCM (Body Control Module) | Under left side of dash, right of steering column. See Figure . |
| Display Control Unit (M94) | Behind center of dash. See Figure . |

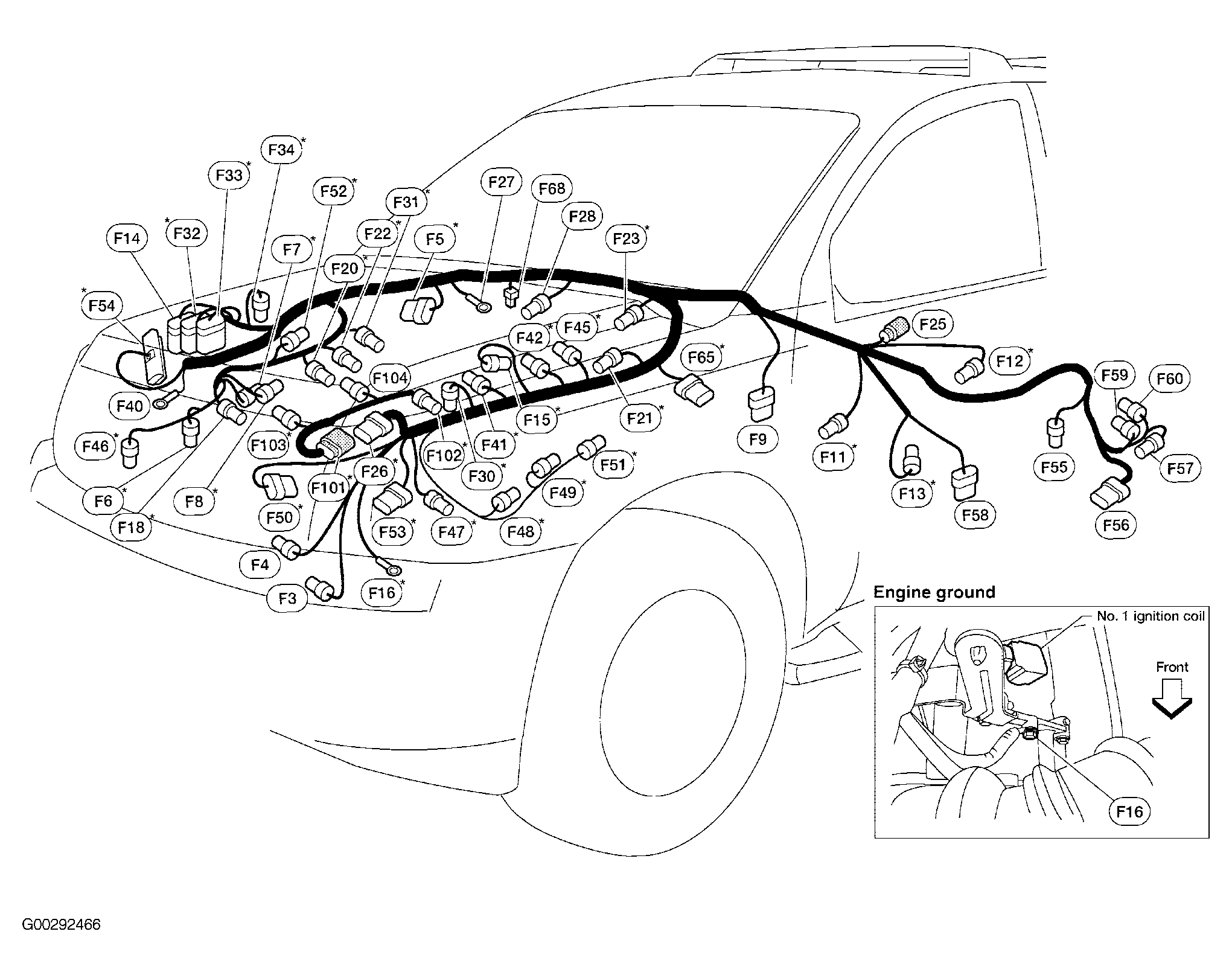

| ECM (Engine Control Module) | Right rear of engine compartment. See Figure . |
| Electric Brake (Pre-Wiring) (M76) | Behind left side of dash. See Figure . |
| Front Left Side Air Bag Module (B10) | Under left front seat. See Figure . |
| Front Passenger Air Bag Module (M77) | Behind right side of dash. See Figure . |
| Front Right Side Air Bag Module (B126) | Under right front seat. See Figure . |
| ICC Unit (B13) | Base of left "C" pillar. See Figure . |
| Left Side Curtain Air Bag Module (Front) (B38) | Base of left "A" pillar. See Figure . |
| Left Side Curtain Air Bag Module (Rear) (B54) | Left "C" pillar. See Figure . |
| NAVI Control Unit | Under right front seat. See Figure . |
| Rear View Camera Control Unit (B73) | Behind left rear quarterpanel. See Figure . |

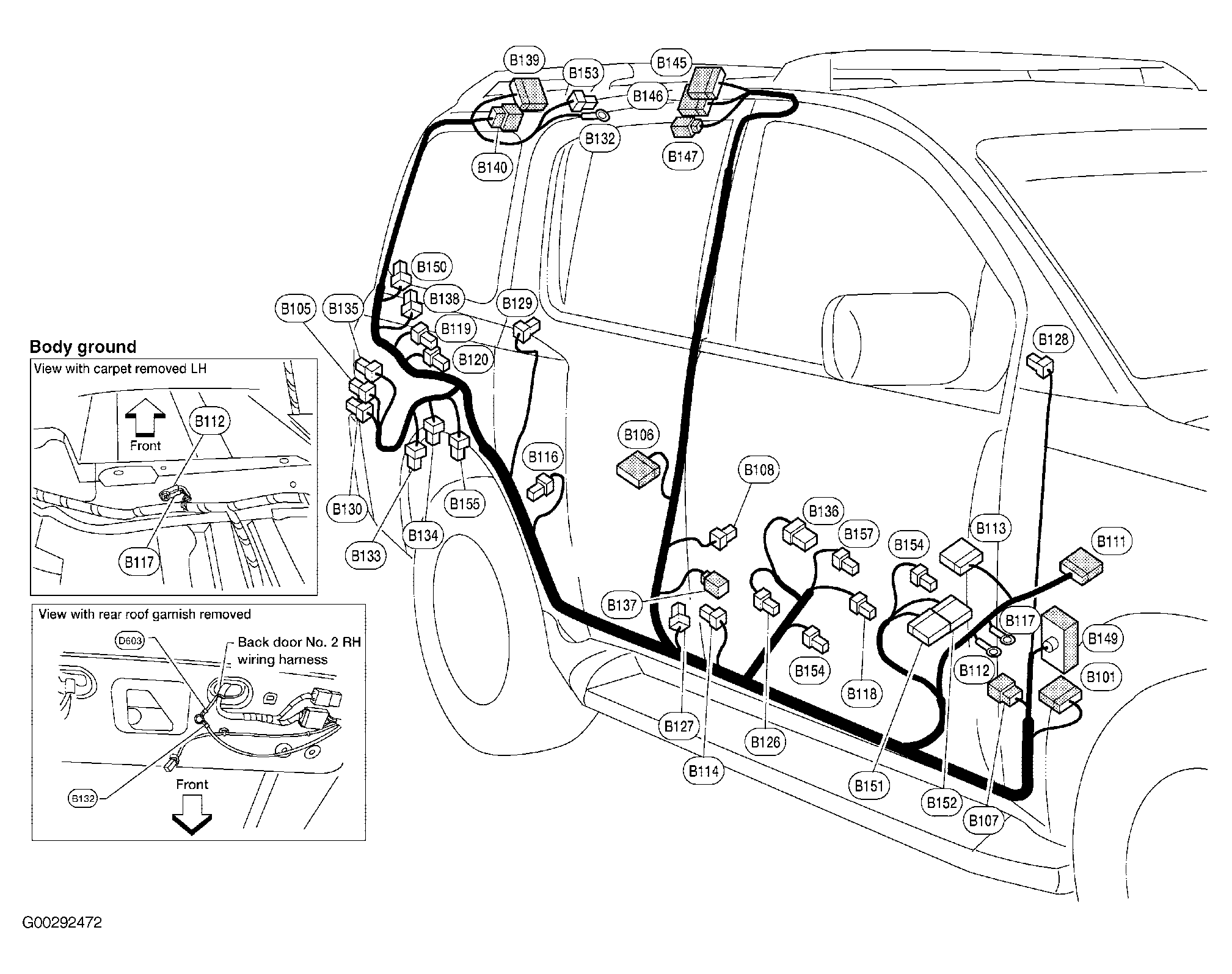

| Right Side Curtain Air Bag Module (Front) (B128) | Base of right "A" pillar. See Figure . |
| Right Side Curtain Air Bag Module (Rear) (B129) | Right "C" pillar. See Figure . |
| Shift Lock Control Unit | Behind right side of dash. See Figure . |
| Sonar Control Unit (B56) | Behind left rear quarterpanel. See Figure . |
| Suspension Control Unit (B3) | Behind left rear quarterpanel. See Figure . |
| Transfer Control Device (4WD) (F58) | At transfer case. See Figure . |
| Transfer Control Unit (4W/D) | Behind right side of dash. See Figure . |
