Oil Cooler: Components

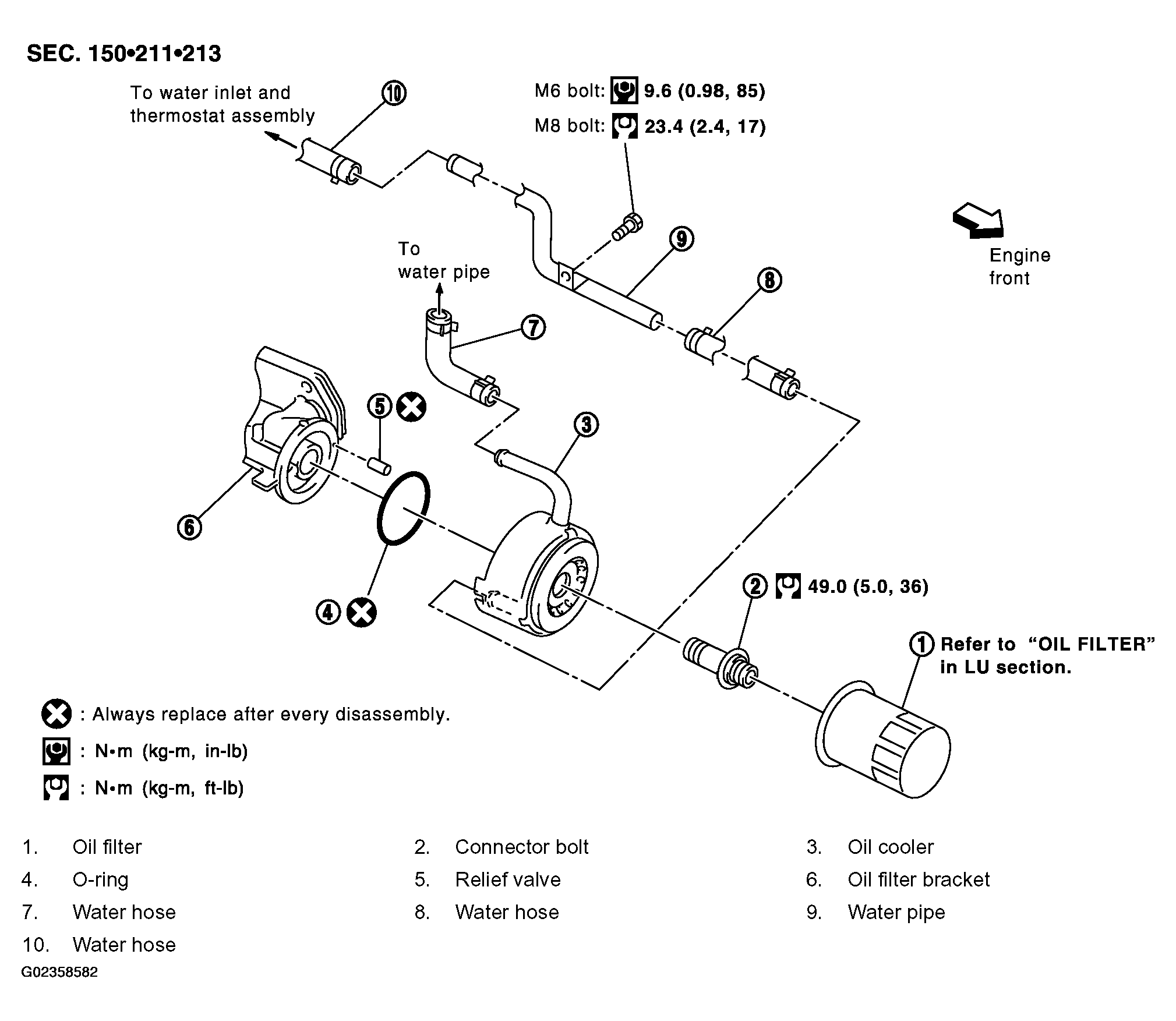

Fig 1: Oil Cooler Replacement Components With Torque Specifications (2WD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.

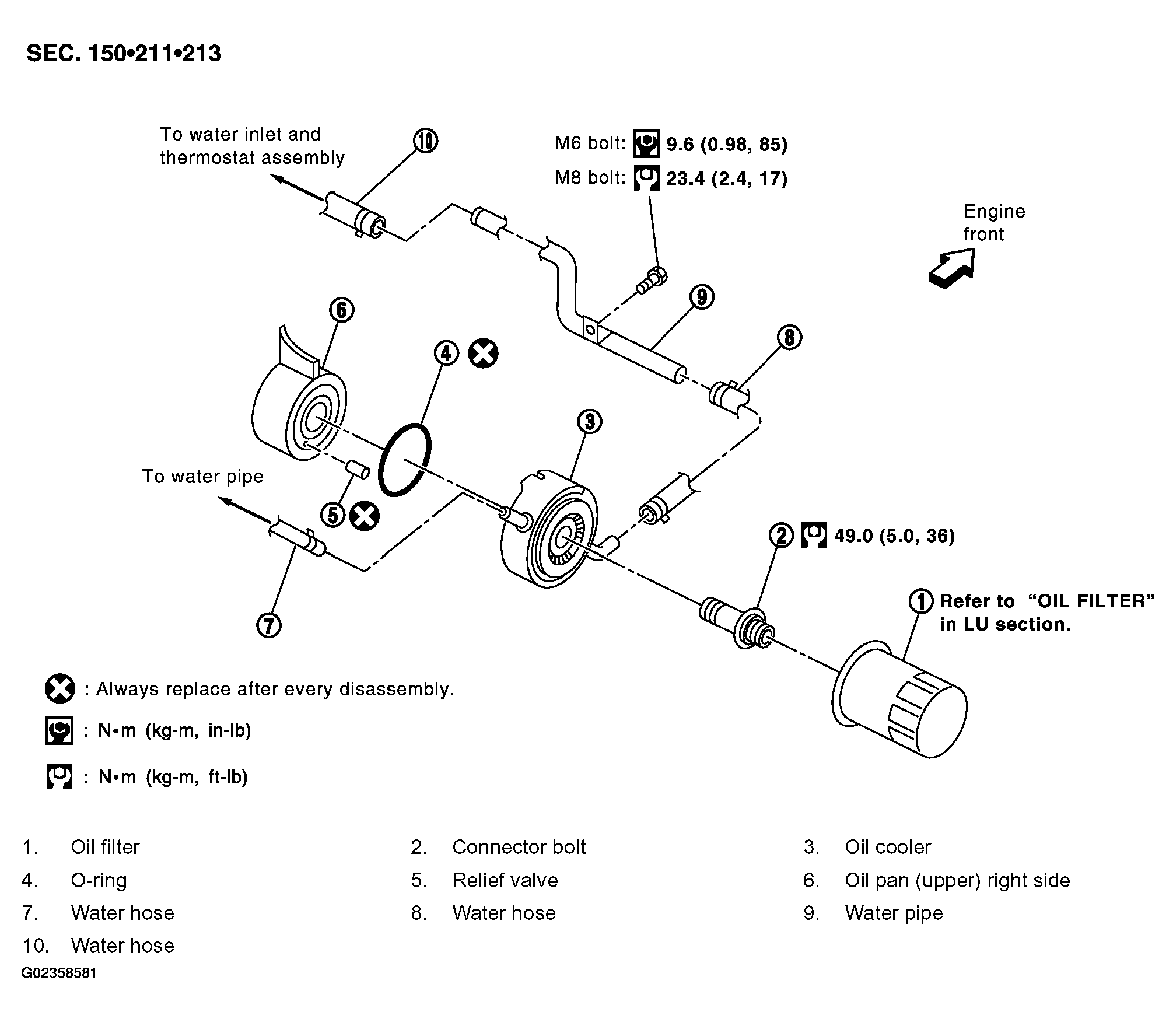

Fig 2: Oil Cooler Replacement Components With Torque Specifications (AWD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
