DTC P0112, P0113: IAT Sensor
>>
Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DTC P0112, P0113: IAT Sensor: Wiring Diagram

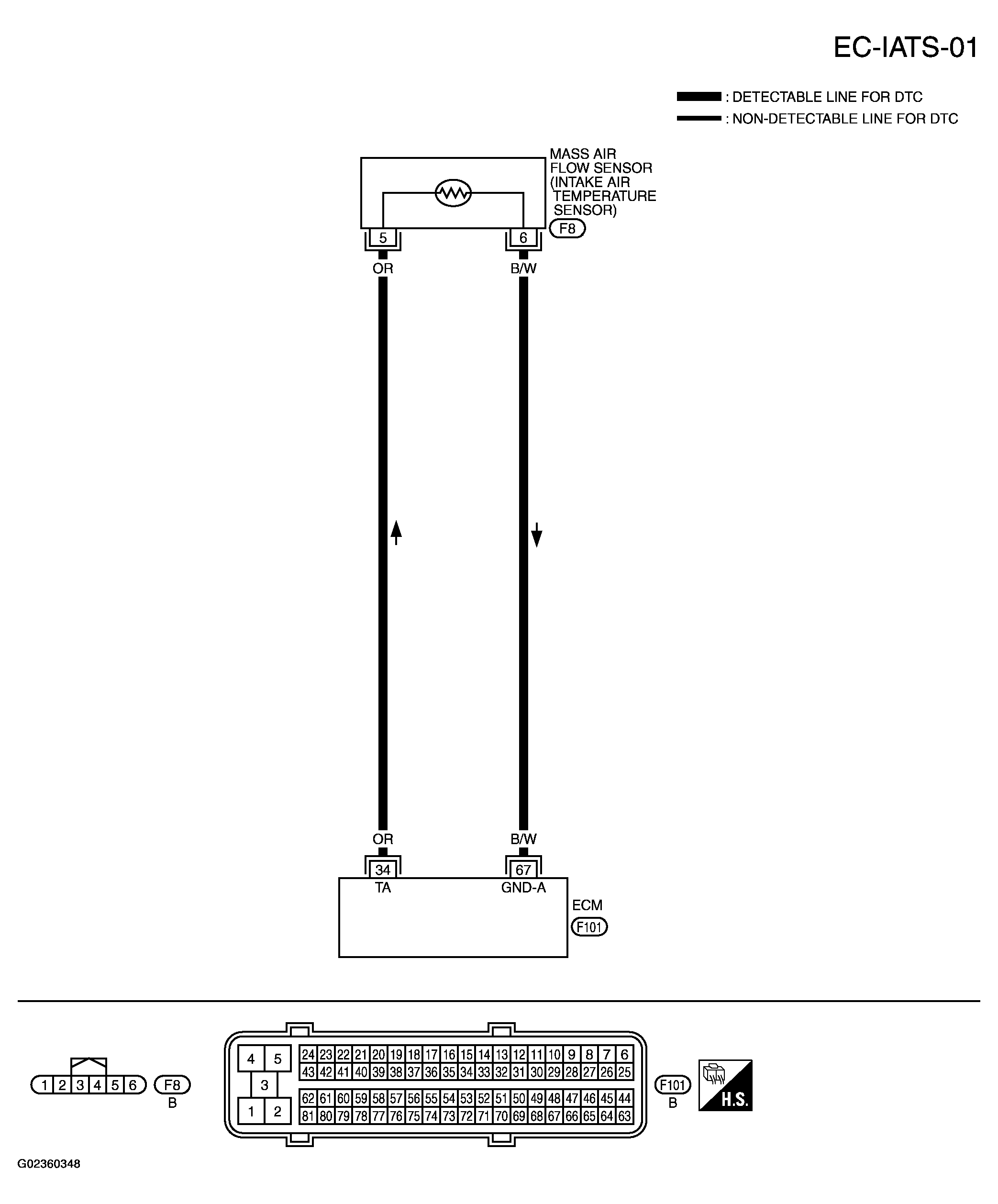

Fig 1: Wiring Diagram - EC-IATS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
