Engine Coolant Temperature Sensor

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

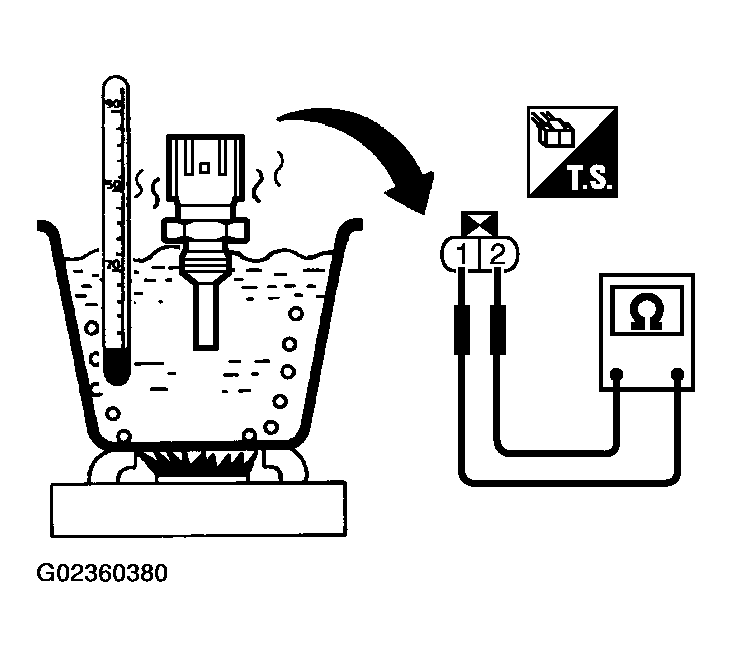

Fig 1: Inspecting Engine Coolant Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

ENGINE COOLANT TEMPERATURE SENSOR REFERENCE DATA

Engine coolant temperature °C (°F)	Resistance kohm
20 (68)	2.1-2.9
50 (122)	0.68-1.00
90 (194)	0.236-0.260

If NG, replace engine coolant temperature sensor.

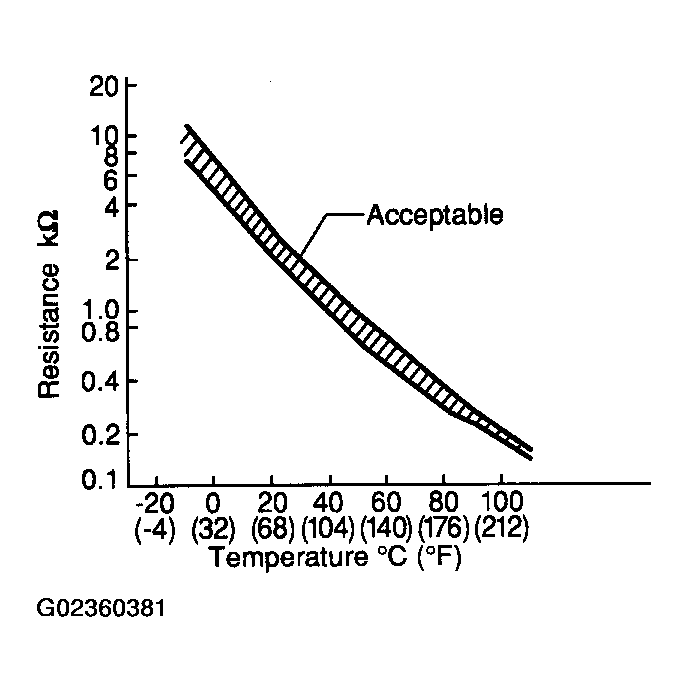

Fig 2: Resistance Vs Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
