Fuel Tank Temperature Sensor

Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

FUEL LEVEL SENSOR TEMPERATURE AND RESISTANCE SPECIFICATION

Temperature °C (°F)	Resistance kohm
20 (68)	2.3-2.7
50 (122)	0.79-0.90

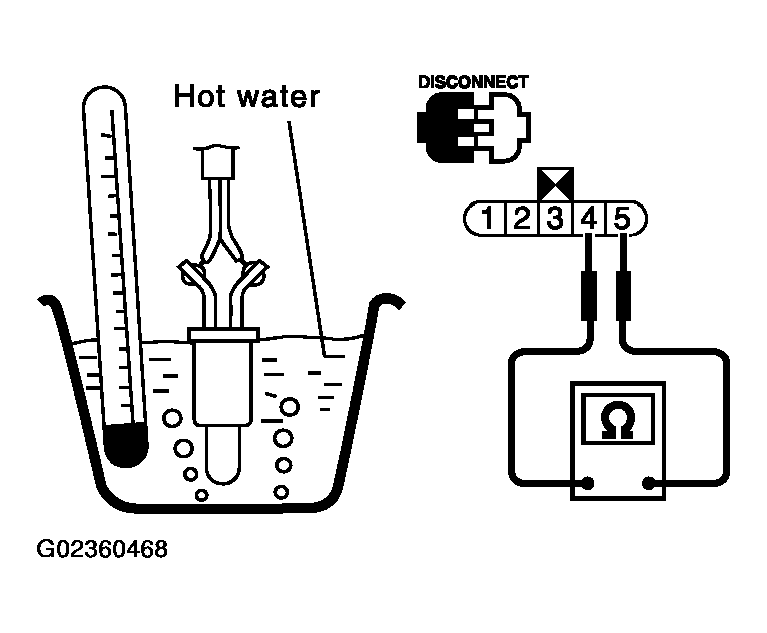

Fig 1: Checking Resistance Between "Fuel Level Sensor Unit And Fuel Pump" Terminals 4 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
