DTC P0500: VSS
>>
On Board Diagnosis Logic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
On Board Diagnosis Logic

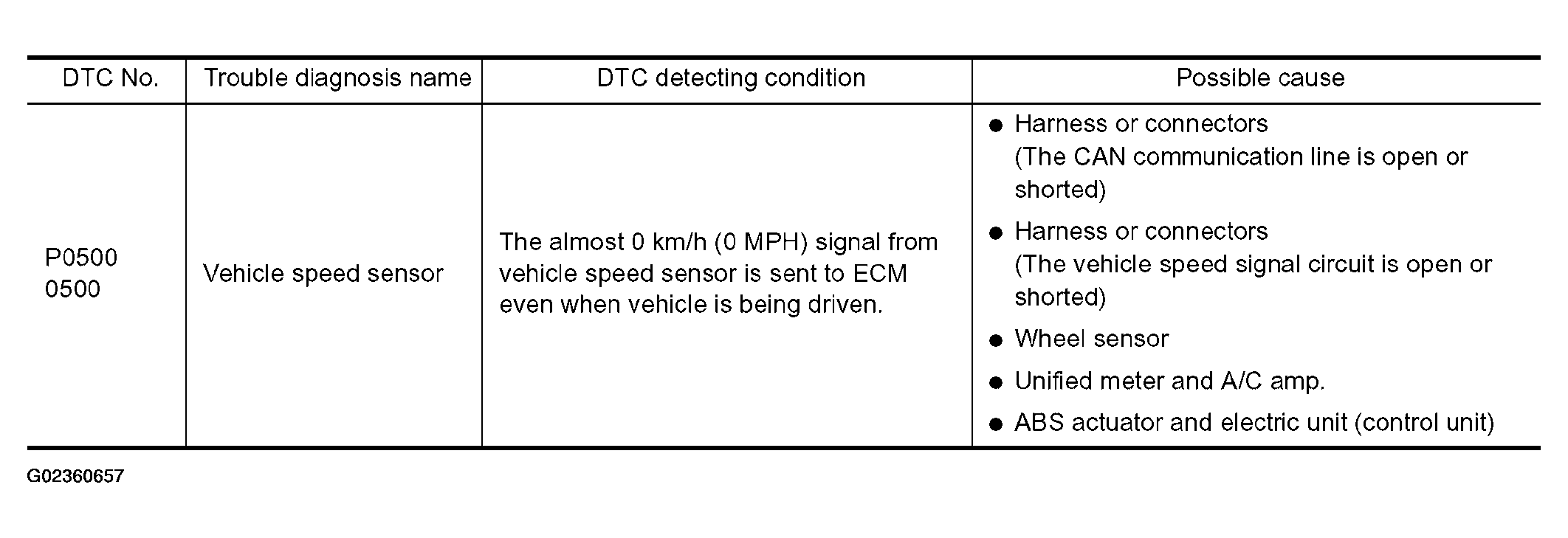

Fig 1: DTC P0500 Diagnosis Trouble Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
