With Consult-II

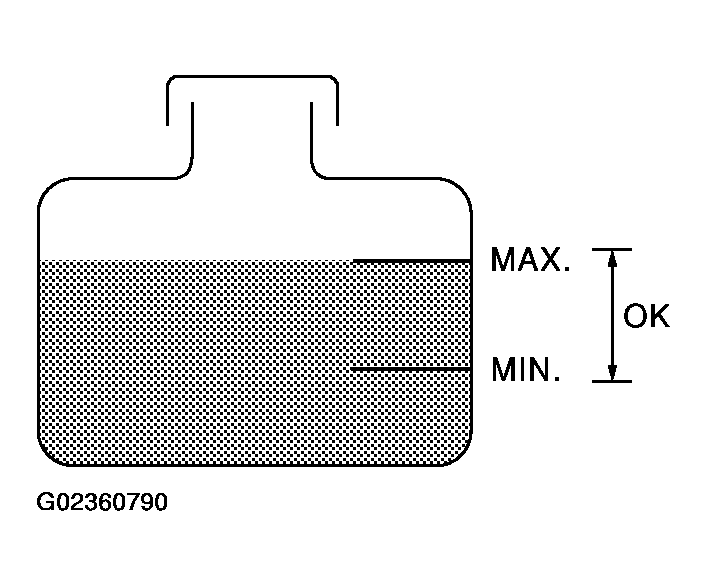

- Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to
"PROCEDURE A
".
- Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to
"PROCEDURE A
".
- Turn ignition switch ON.
Courtesy of NISSAN MOTOR CO., U.S.A.

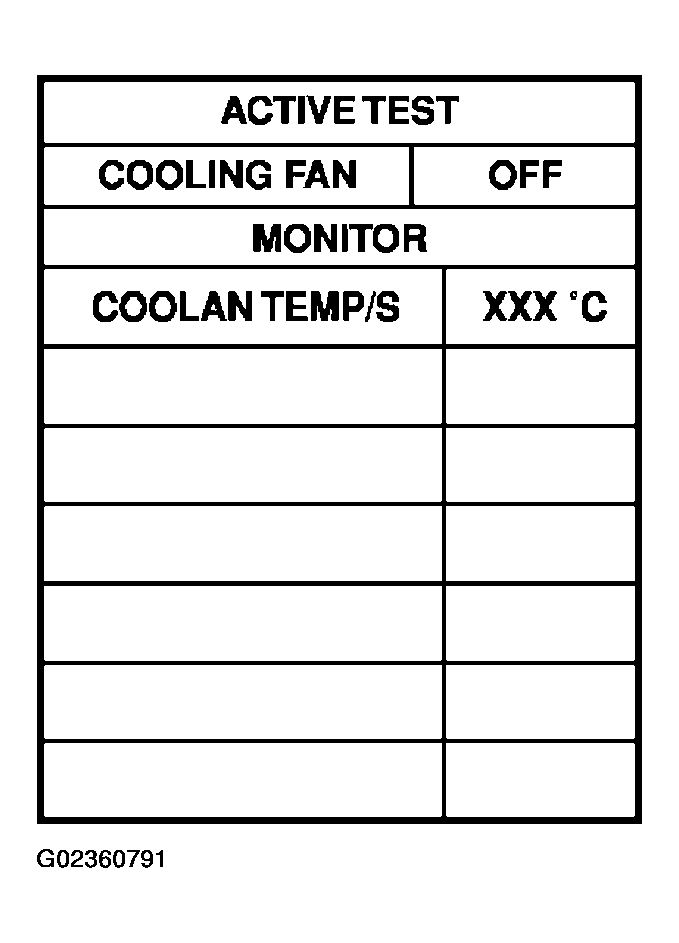

- Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
- If the results are NG, go to
"PROCEDURE A
".
Courtesy of NISSAN MOTOR CO., U.S.A.
