Diagnostic Procedure

  1. CHECK SNOW MODE SWITCH OVERALL FUNCTION-I
    1. Turn ignition switch ON.
    2. Select "SNOW MODE SW" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "SNOW MODE SW" indication under the following conditions.

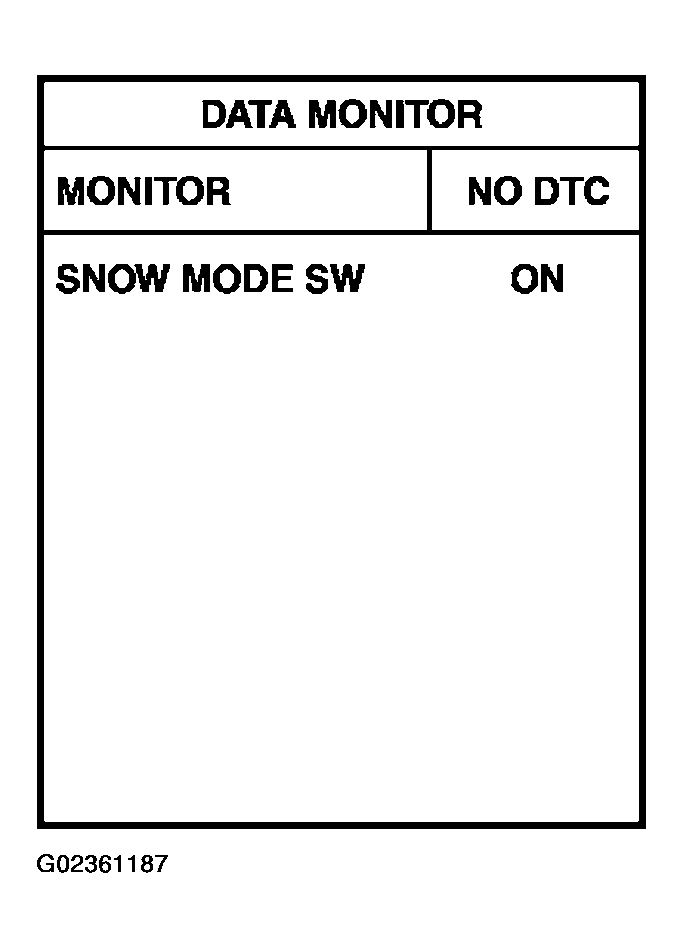

      Fig 1: Identifying CONSULT-II Display Screen Data Monitor
      G02361187Courtesy of NISSAN MOTOR CO., U.S.A.
      SNOW MODE SW CONDITION

      CONDITION INDICATION
      Snow mode switch: ON ON
      Snow mode switch: OFF OFF

    OK or NG

    1. OK: GO TO 2.
    2. NG: GO TO  3 .
  2. CHECK SNOW MODE SWITCH OVERALL FUNCTION-II
    1. Turn ignition switch ON.
    2. Start engine.
    3. Check the snow mode indicator in the snow mode switch under the following condition.
    SNOW MODE CONDITION CHART

    CONDITION INDICATION
    Snow mode switch: ON ON
    Snow mode switch: OFF OFF

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO  7 .
  3. CHECK DTC WITH "UNIFIED METER AND A/C AMP."

    Refer to "SELF-DIAGNOSTIC RESULTS ".

    OK or NG

    1. OK: GO TO 4.
    2. NG: go to "UNIFIED METER AND A/C AMP ".
  4. CHECK SNOW MODE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect snow mode switch harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between snow mode switch terminal 1 and ground with CONSULT-II or tester.
      1. Voltage: Battery voltage.

    OK or NG

    1. OK: GO TO  6 .
    2. NG: GO TO 5.

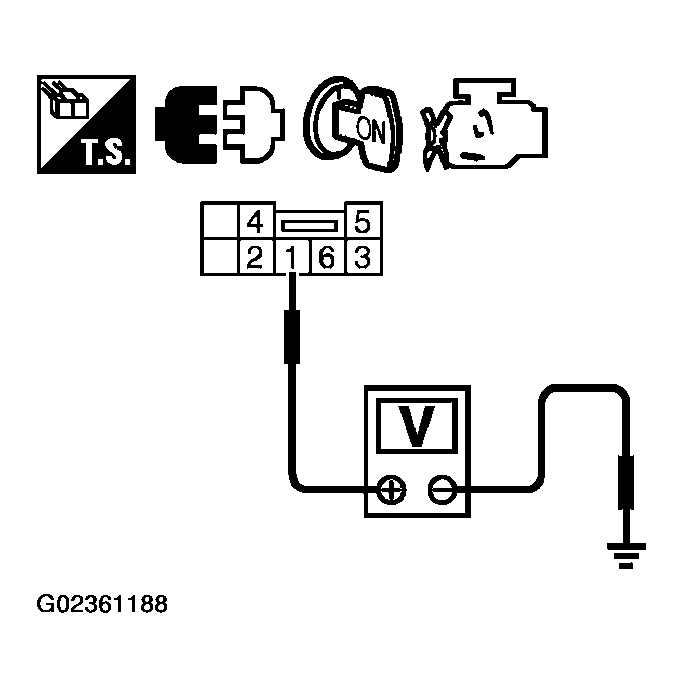

    Fig 2: Checking Voltage Between Snow Mode Switch Terminal 1 And Ground
    G02361188Courtesy of NISSAN MOTOR CO., U.S.A.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) M1
    • 10A fuse
    • Harness for open or short between snow mode switch and fuse.
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK SNOW MODE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect "unified meter and A/C amp." harness connector.
    3. Check harness continuity between snow mode switch terminal 4 and "unified meter and A/C amp." terminal 12. Refer to WIRING DIAGRAM  .
      1. Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9 .
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

    Refer to "GROUND INSPECTION " .

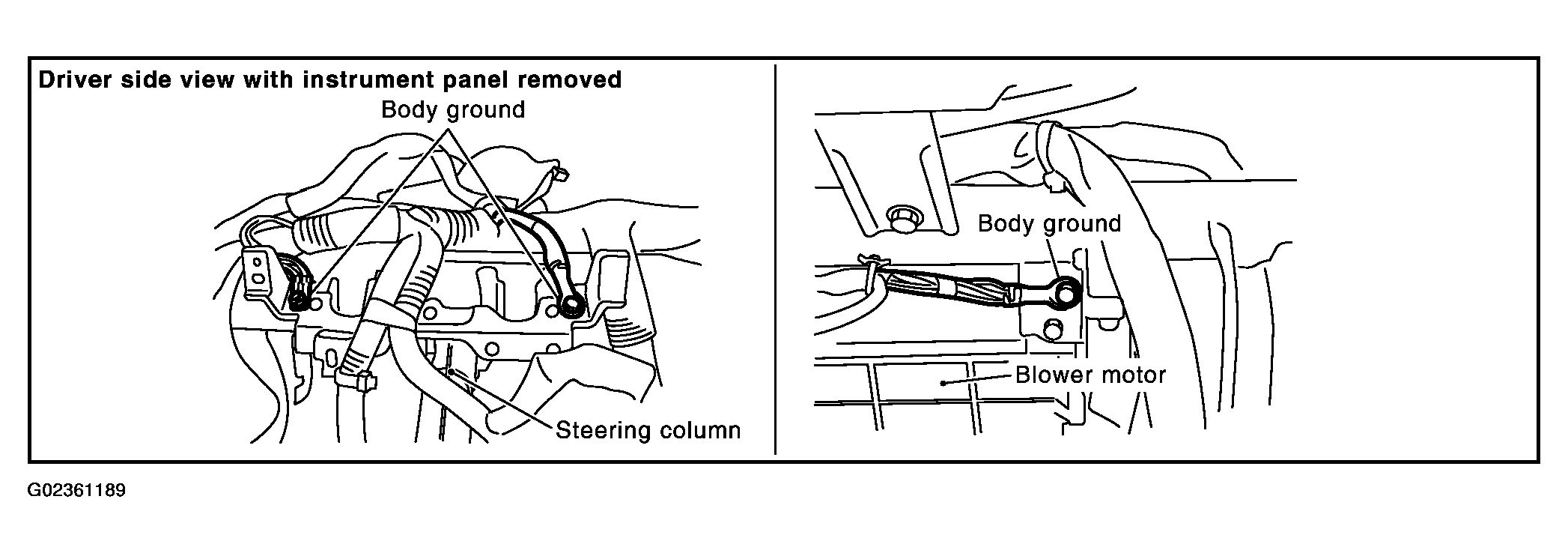

    Fig 3: Checking Ground Connections
    G02361189Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 8.
    2. NG: Repair or replace ground connections.
  8. CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between snow mode switch terminal 2 and ground. Refer to WIRING DIAGRAM  .
      1. Continuity should exist.
    2. Also check harness for short to power.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Repair open circuit or short to power in harness or connectors.
  9. CHECK SNOW MODE SWITCH

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace snow mode switch.
  10. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT " .

    1. : INSPECTION END
