FX35 AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - VQ35DE
>>
Trouble Diagnosis
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

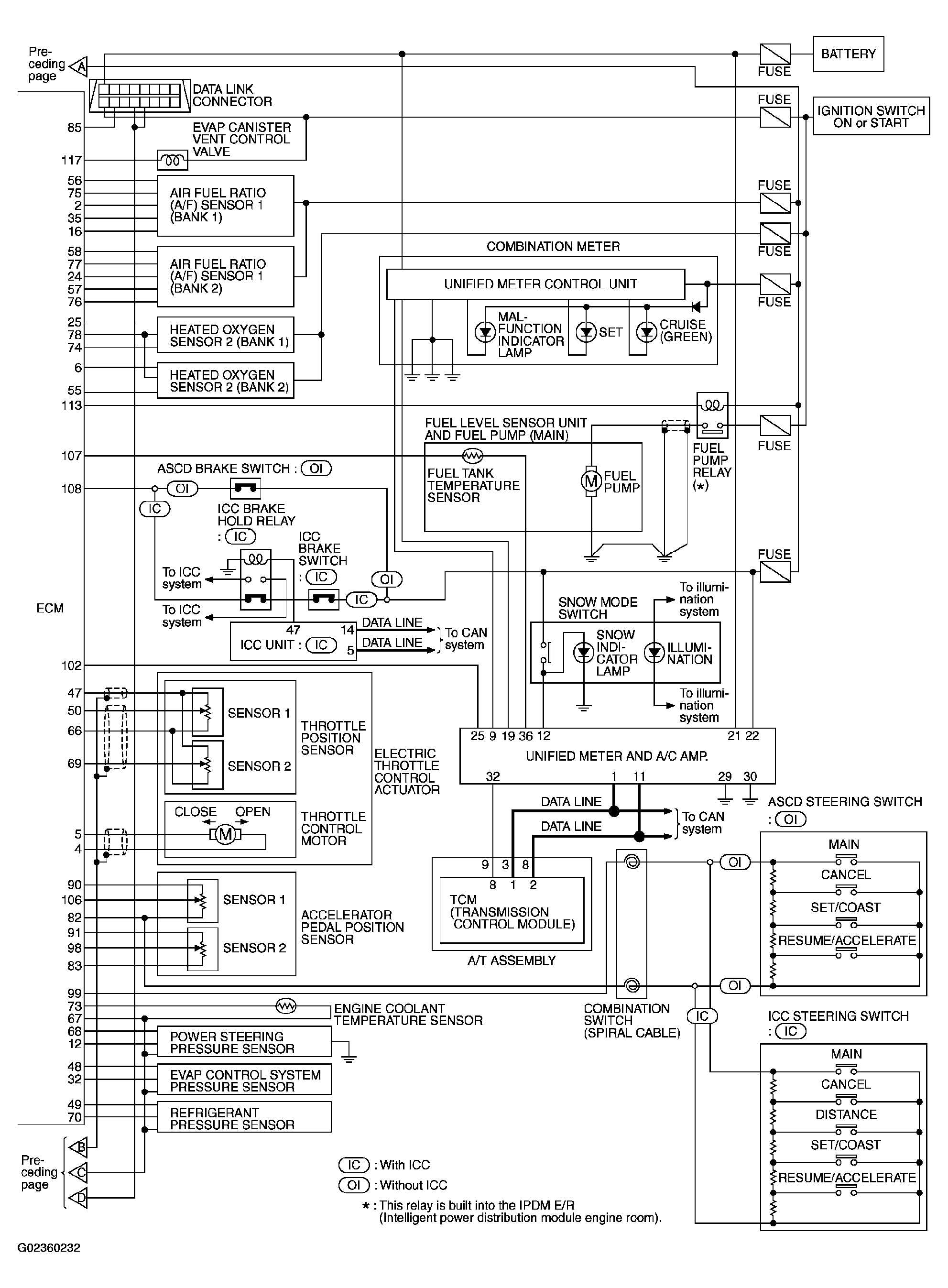

Fig 1: Circuit Diagram - Engine Control System (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

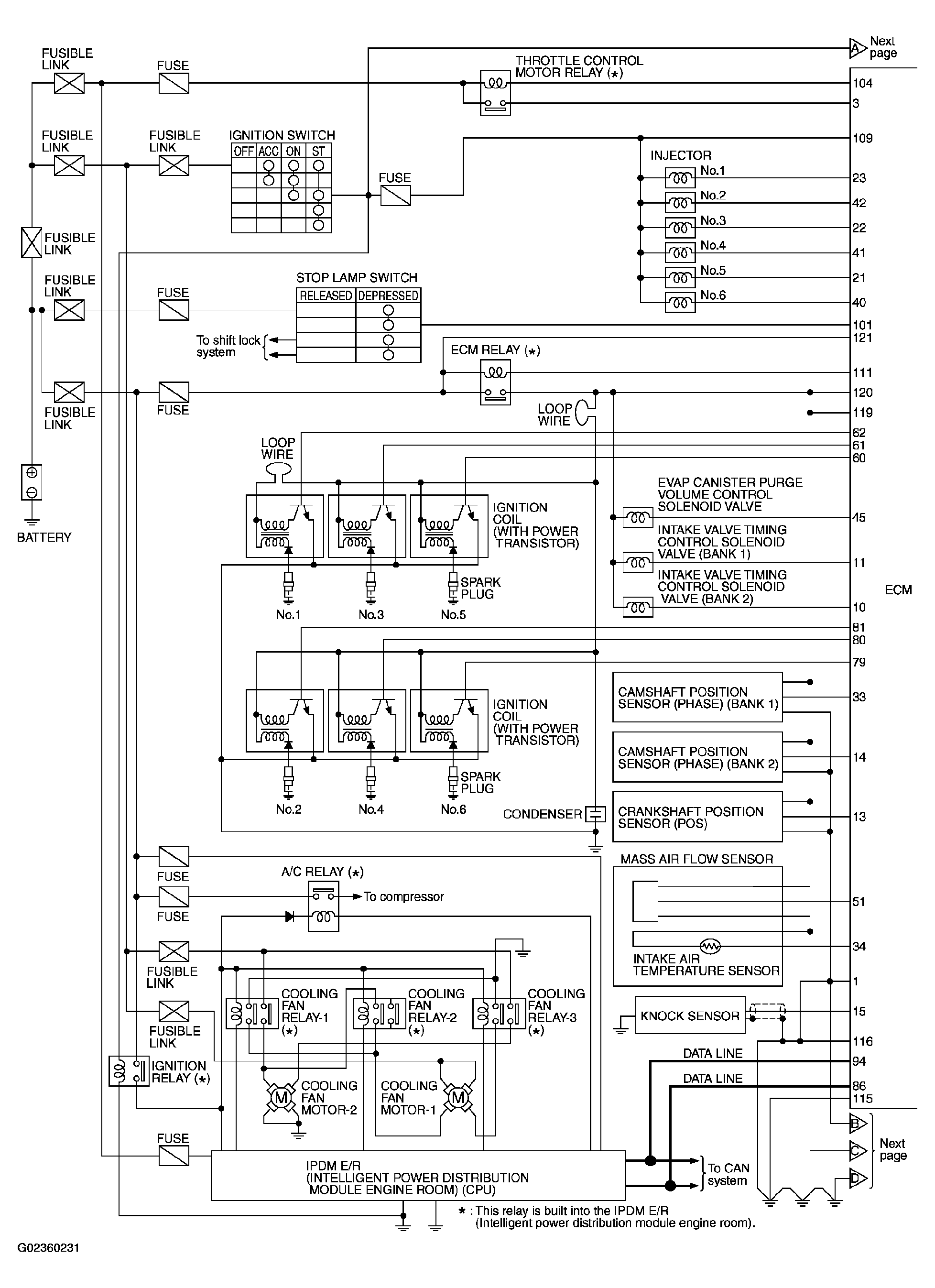

Fig 2: Circuit Diagram - Engine Control System (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
