Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

Turn ignition switch ON.
Connect CONSULT-II and select "DATA MONITOR" mode.

Select "LOAD SIGNAL" and check indication under the following conditions.

ELECTRICAL LOAD SIGNAL DIAGNOSIS CONDITION

Condition	Indication
Lighting switch: ON at 2nd position	ON
Lighting switch: OFF	OFF

OK or NG

OK : INSPECTION END
NG : GO TO 2.

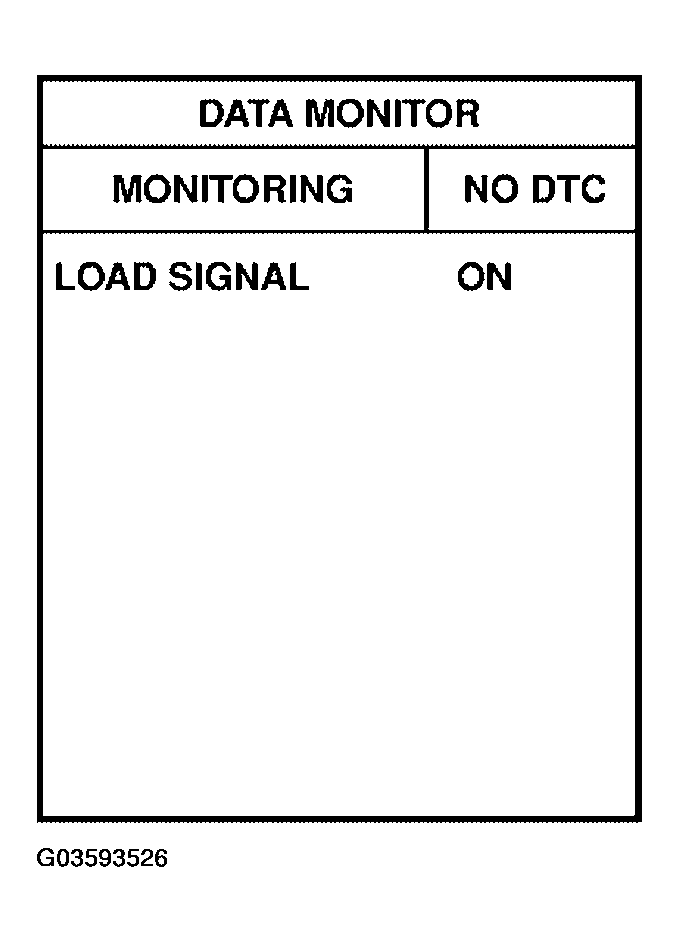

Fig 1: DATA MONITOR - CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HEADLAMP SYSTEM
Refer to "HEADLAMP (FOR USA) " or "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM ".
1. : INSPECTION END
